Power Distribution
>>
F14, F19, F25, F46
F14, F19, F25, F46

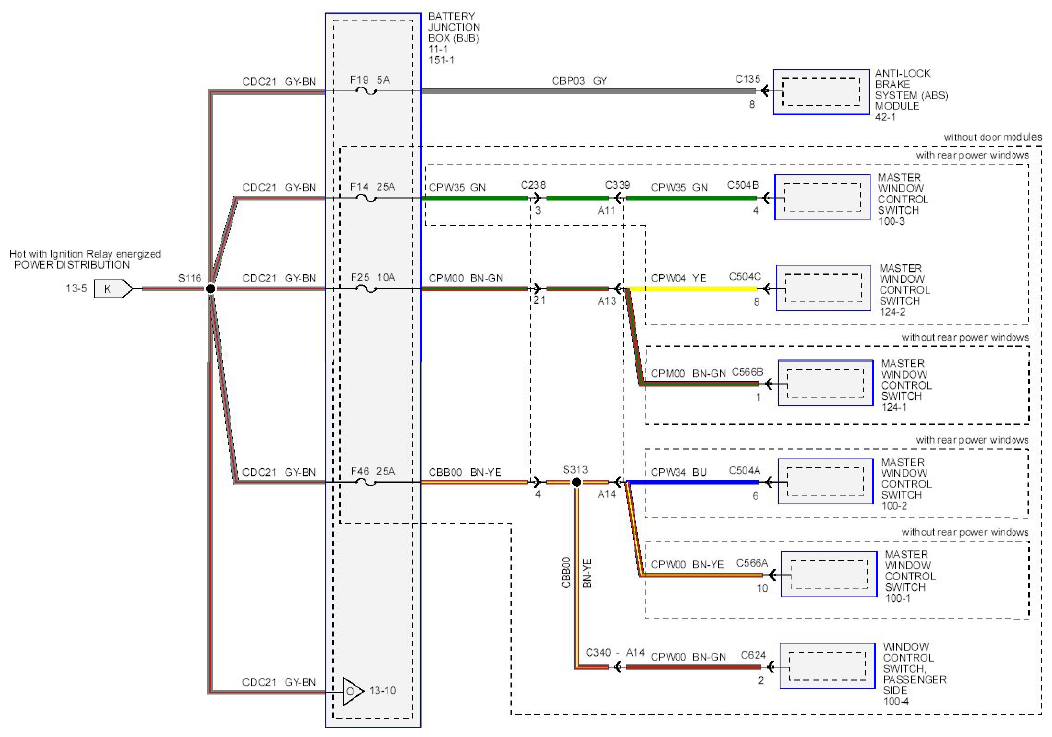

Fig 1: Power Distribution (F14, F19, F25, F46) - Circuit Diagram
Courtesy of FORD MOTOR CO.
