Power Distribution
>>
F10, F13, F20, F27
F10, F13, F20, F27

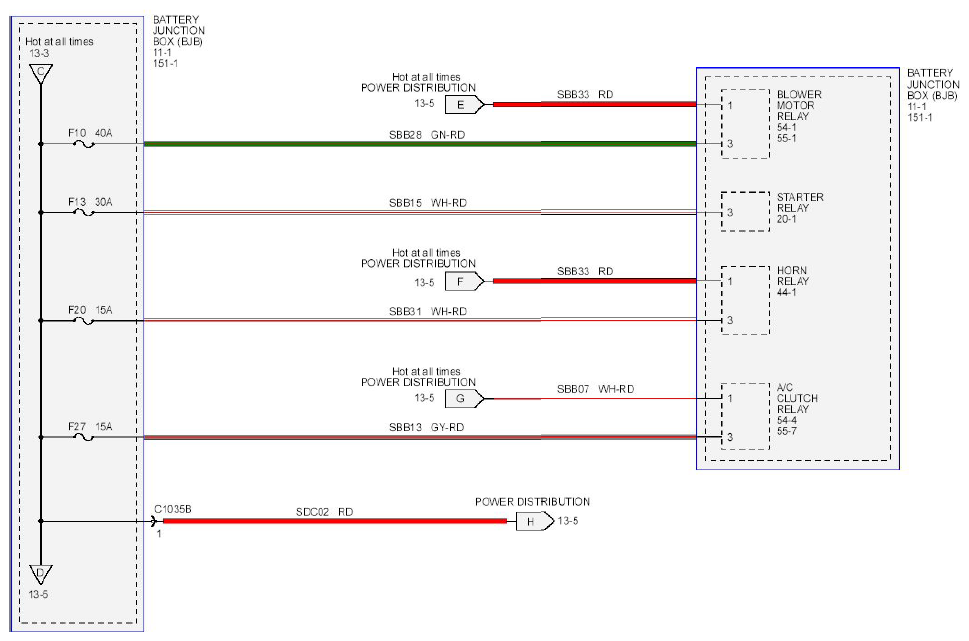

Fig 1: Power Distribution (F10, F13, F20, F27) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
