Passive Anti-Theft System
>>
With IA
With IA

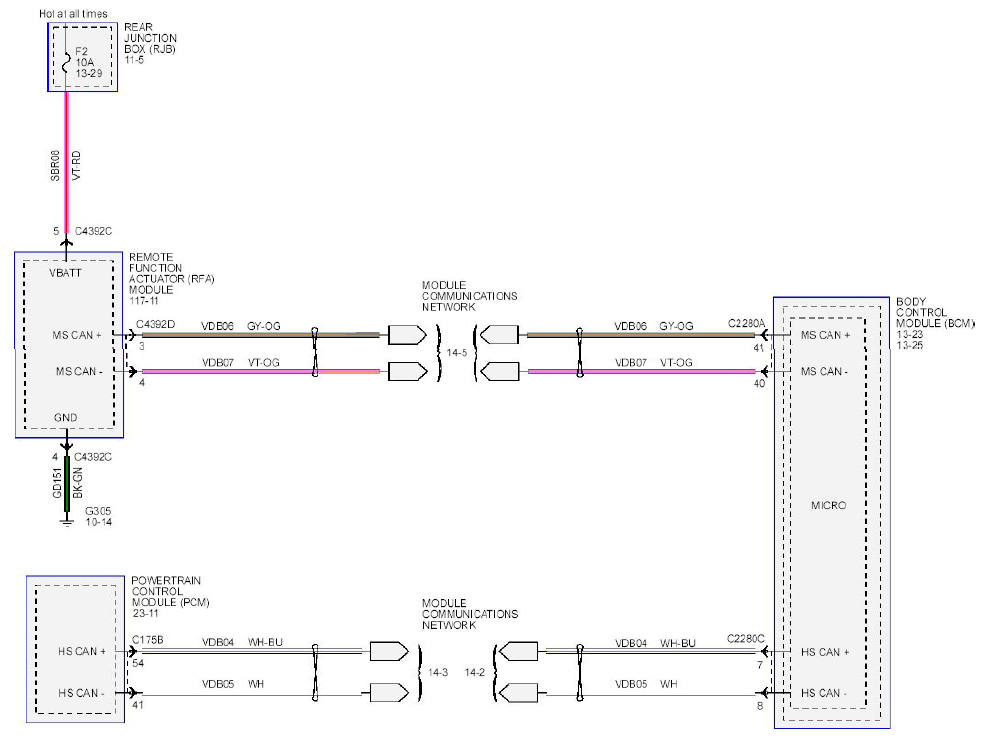

Fig 1: Passive Anti-Theft System (With IA) - Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

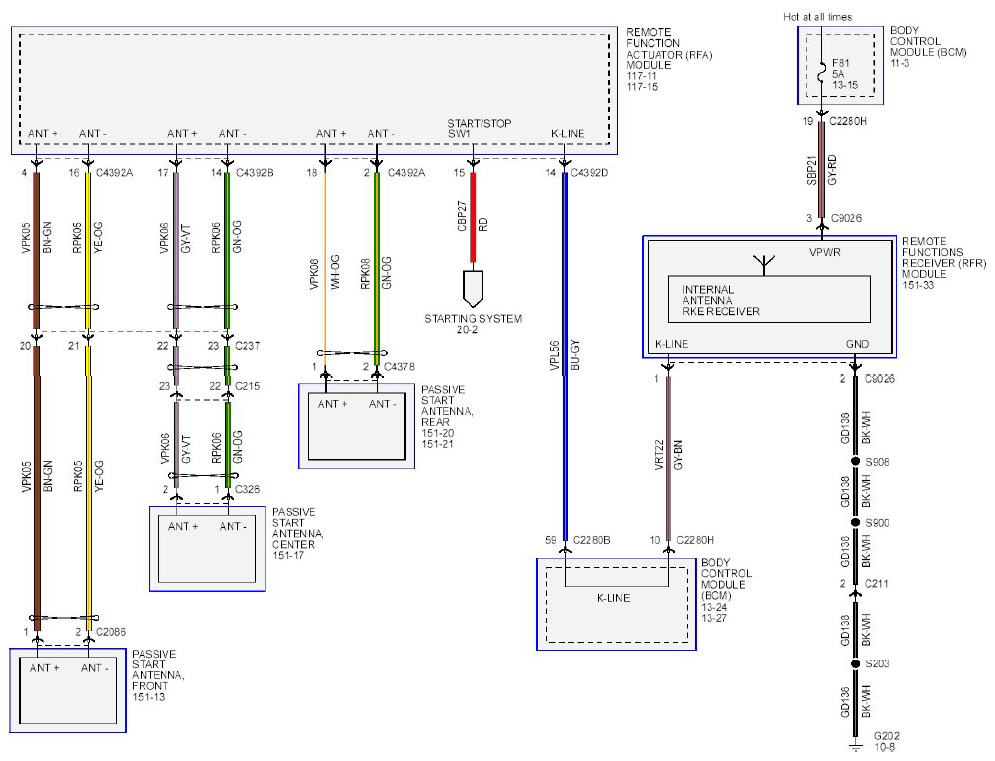

Fig 2: Passive Anti-Theft System (With IA) - Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
