With Front Parking Aid And Active Park Assist

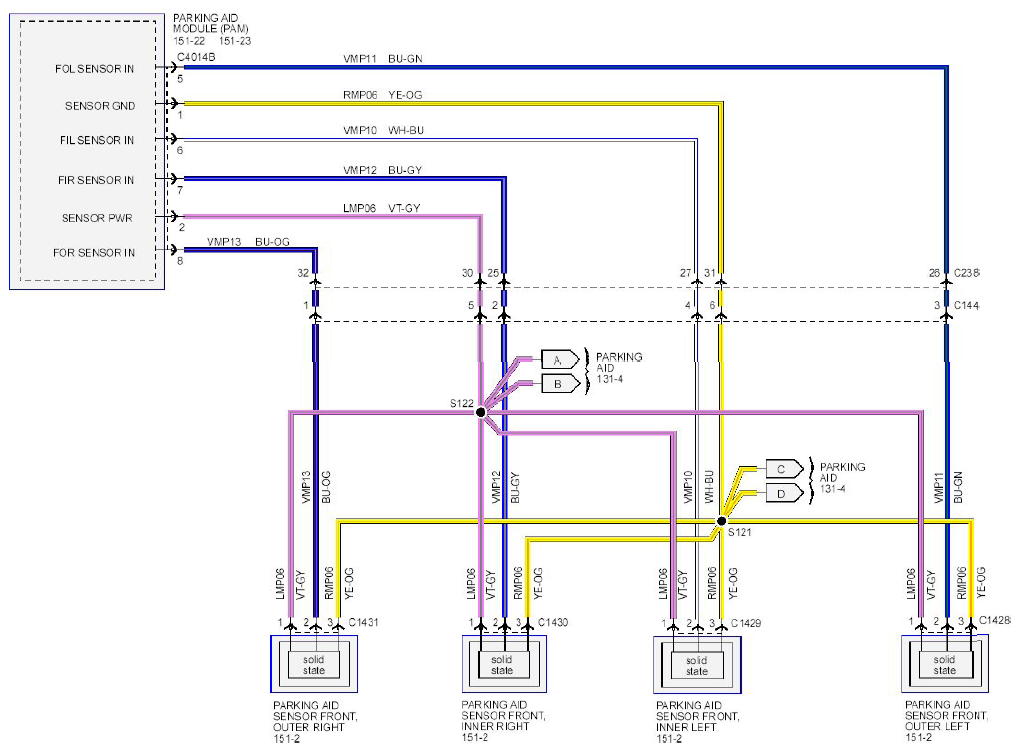

Fig 1: Parking Aid (With Front Parking Aid And Active Park Assist) - Circuit Diagram (1 Of 2)

Courtesy of FORD MOTOR CO.

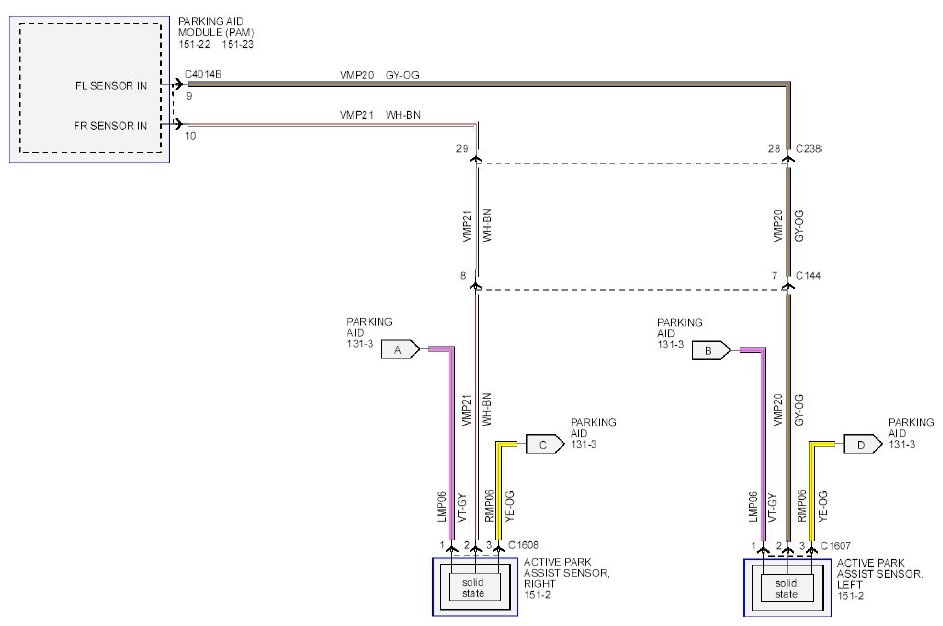

Fig 2: Parking Aid (With Front Parking Aid And Active Park Assist) - Circuit Diagram (2 Of 2)

Courtesy of FORD MOTOR CO.
