Ford
>>
2013
>>
Focus Titanium, 4D Sedan, Standard Trans, Gas
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams - Except Electric
>>
Parking Aid
>>
Rear View Camera With Sync Gen 2
Rear View Camera With Sync Gen 2

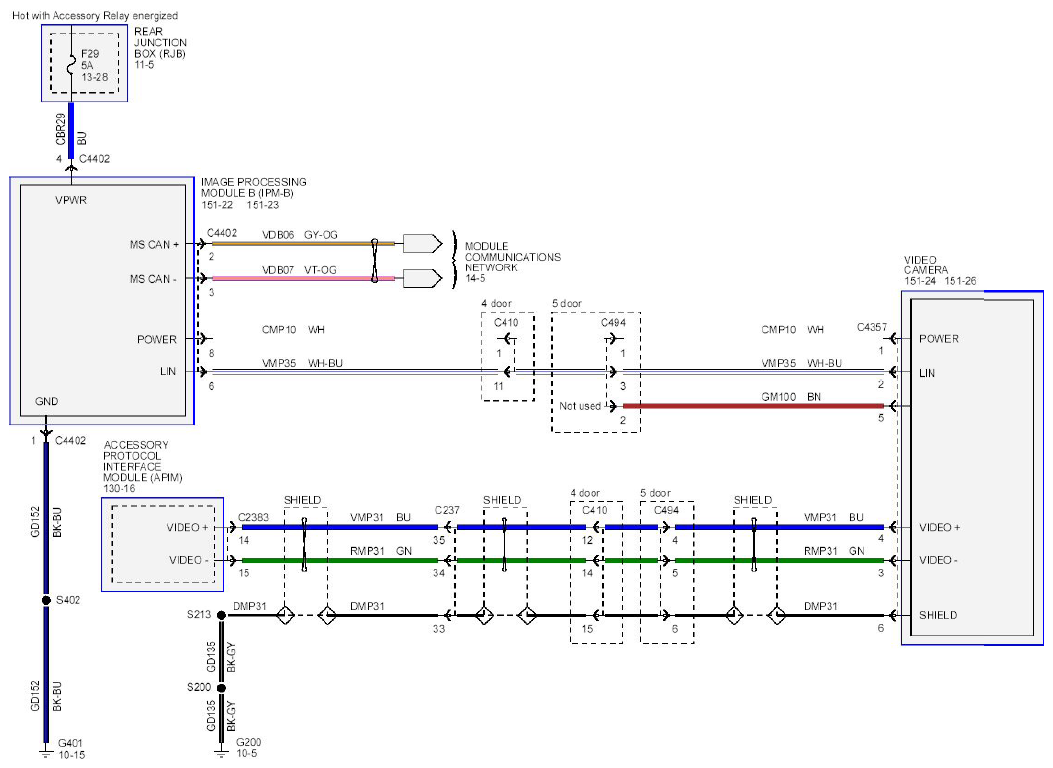

Fig 1: Parking Aid (Rear View Camera With SYNC GEN 2) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
