OEM Wiring Diagrams - Except Electric
>>
Luggage Compartment
>>
With IA
With IA

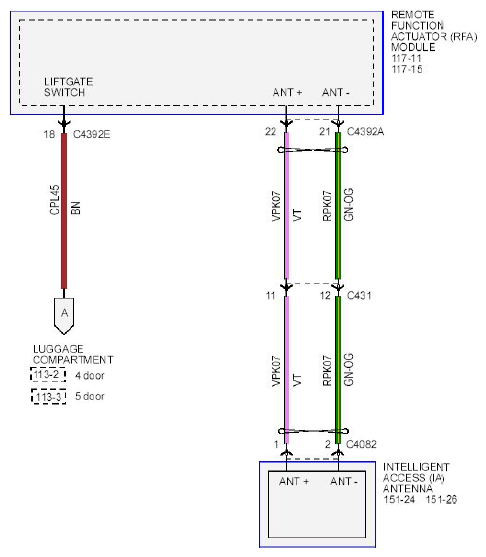

Fig 1: Luggage Compartment (With IA) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
