Luggage Compartment
>>
Notes
Luggage Compartment: Notes

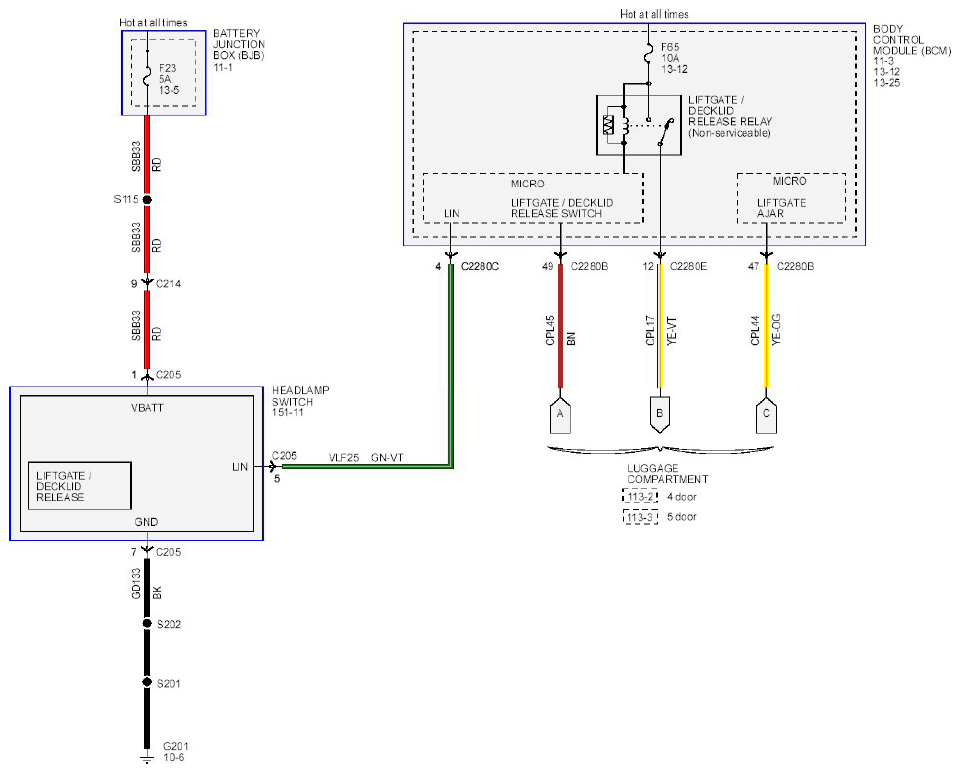

Fig 1: Luggage Compartment - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
