OEM Wiring Diagrams - Except Electric
>>
Interior Lamps
>>
With Roof Opening Panel
With Roof Opening Panel

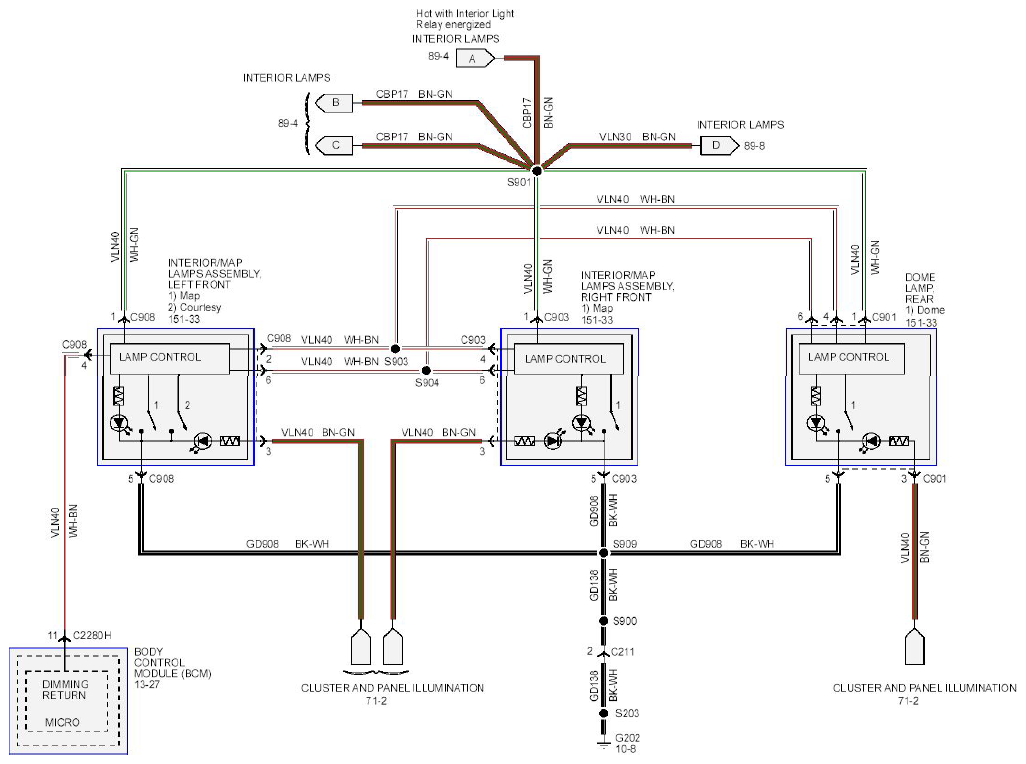

Fig 1: Interior Lamps (Without Roof Opening Panel) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
