Home >> Ford >> 2013 >> Focus Titanium, 4D Sedan, Standard Trans, Gas >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams - Except Electric >> Interior Lamps >> With Door Modules

With Door Modules

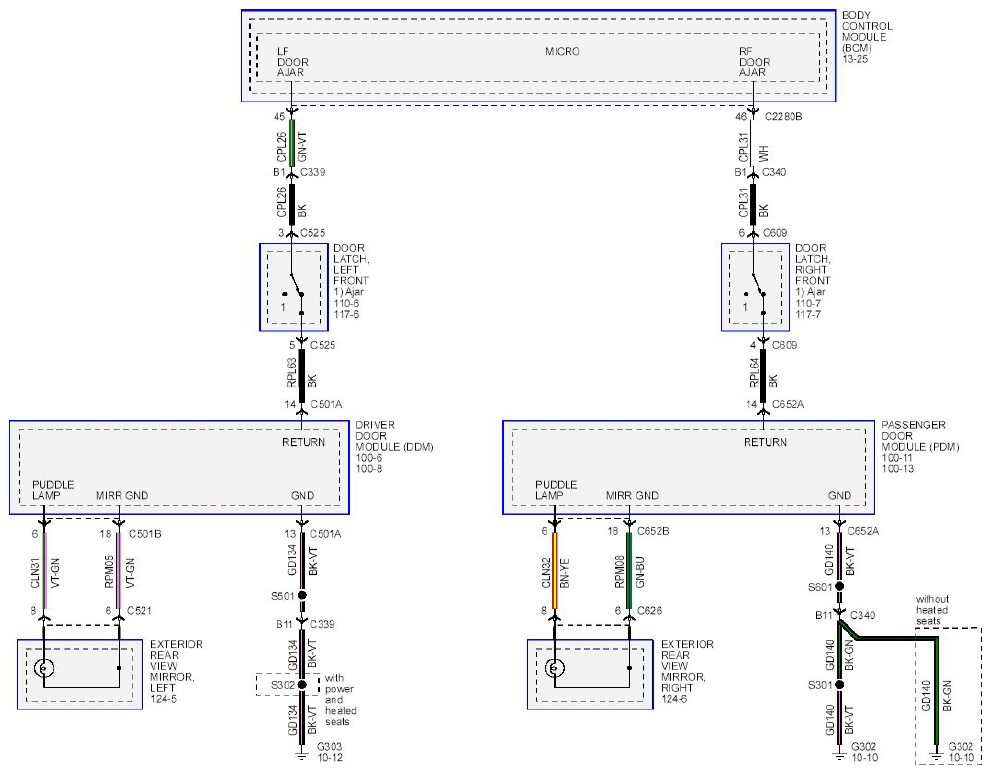

Fig 1: Interior Lamps (With Door Modules) - Circuit Diagram (1 Of 2)
G08750745Courtesy of FORD MOTOR CO.

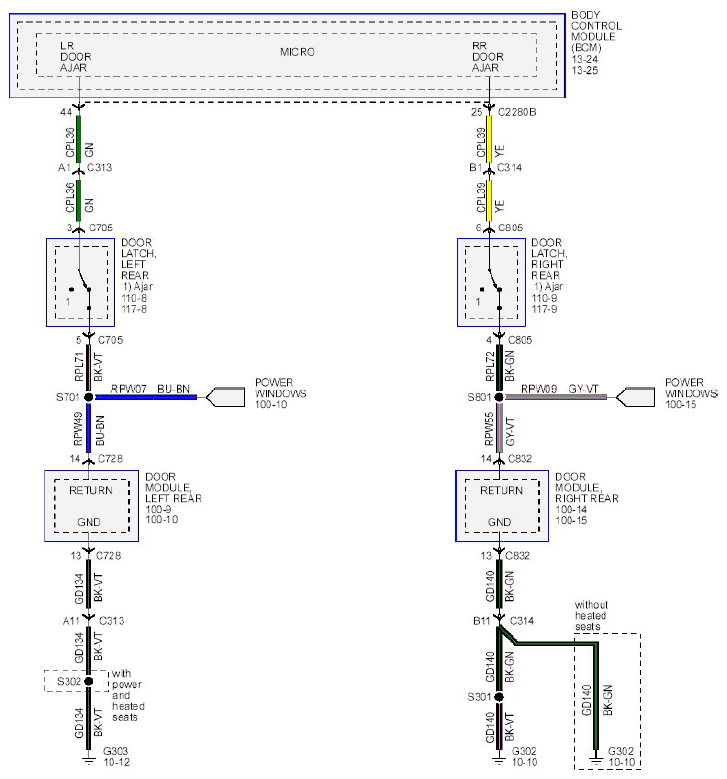

Fig 2: Interior Lamps (With Door Modules) - Circuit Diagram (2 Of 2)
G08750746Courtesy of FORD MOTOR CO.
