Interior Lamps
>>
With Ambient Lighting
With Ambient Lighting

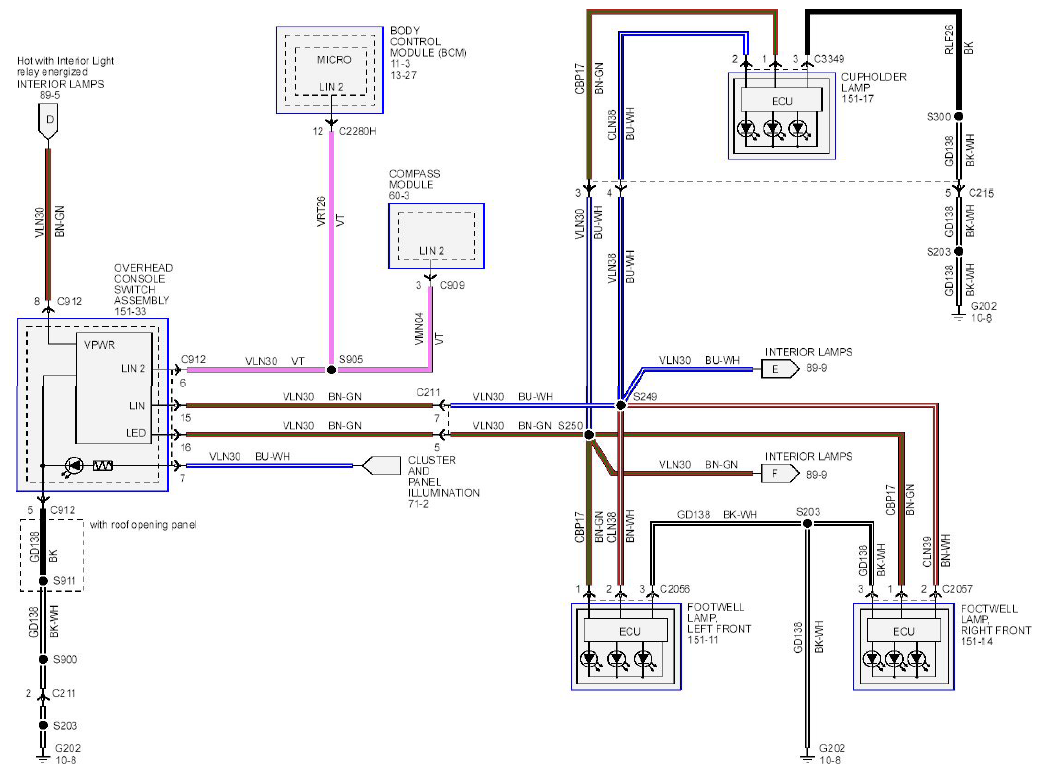

Fig 1: Interior Lamps (With Ambient Lighting) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
