Interior Lamps: Notes

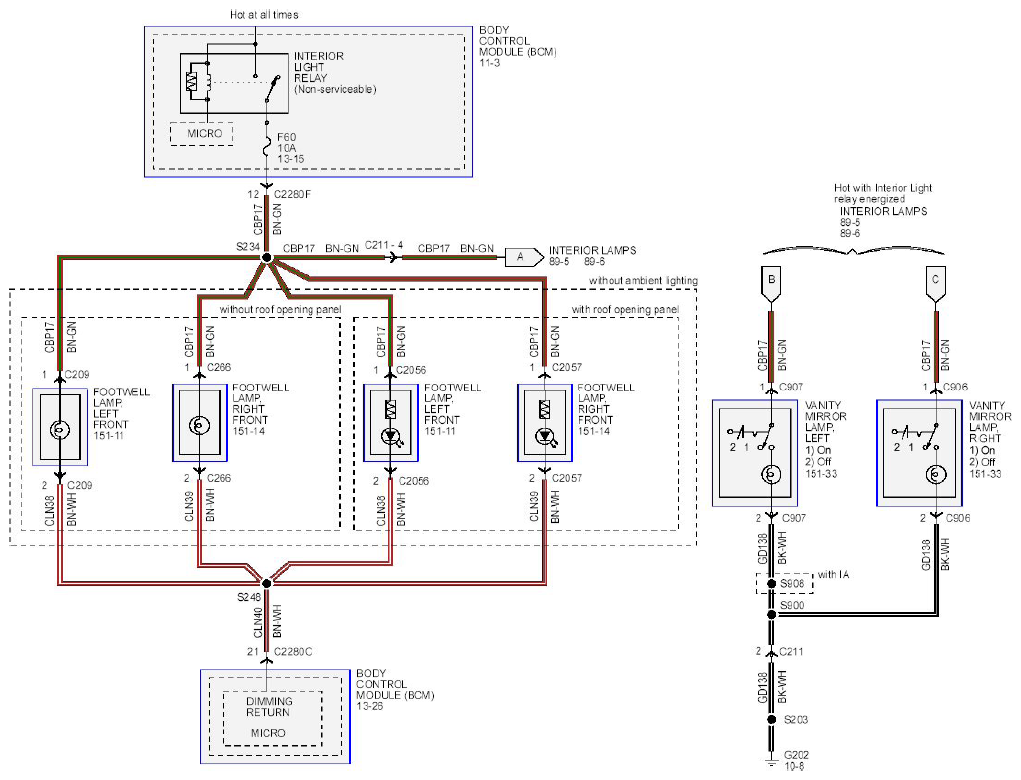

Fig 1: Interior Lamps - Circuit Diagram (1 Of 3)
G08750747Courtesy of FORD MOTOR CO.

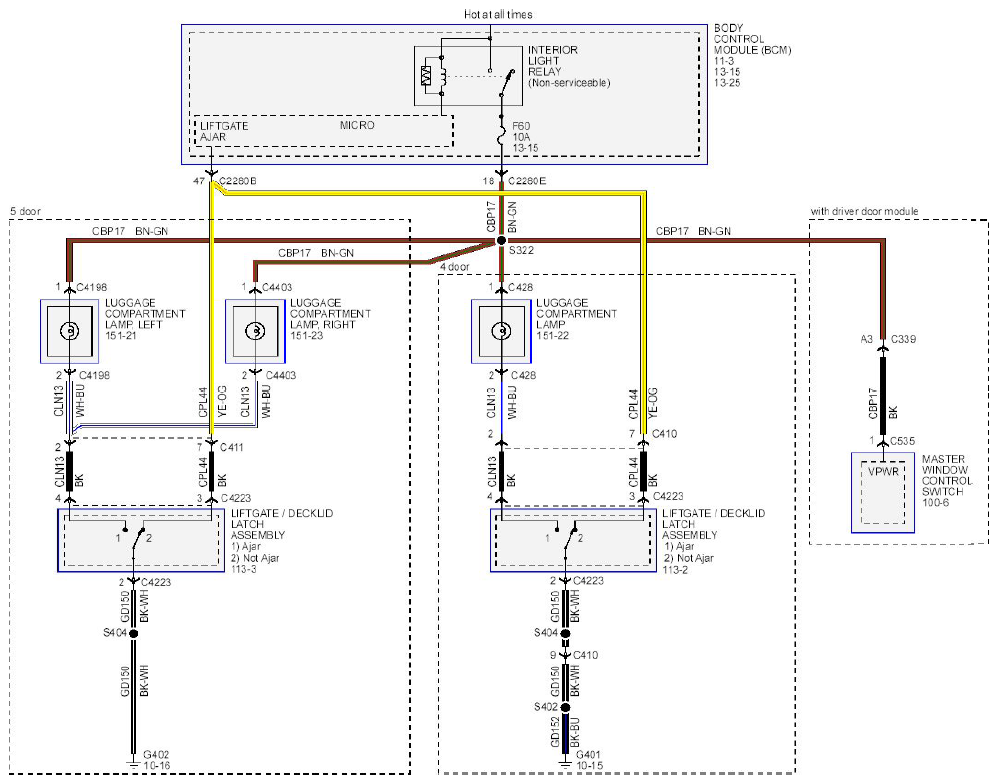

Fig 2: Interior Lamps - Circuit Diagram (2 Of 3)
G08750750Courtesy of FORD MOTOR CO.

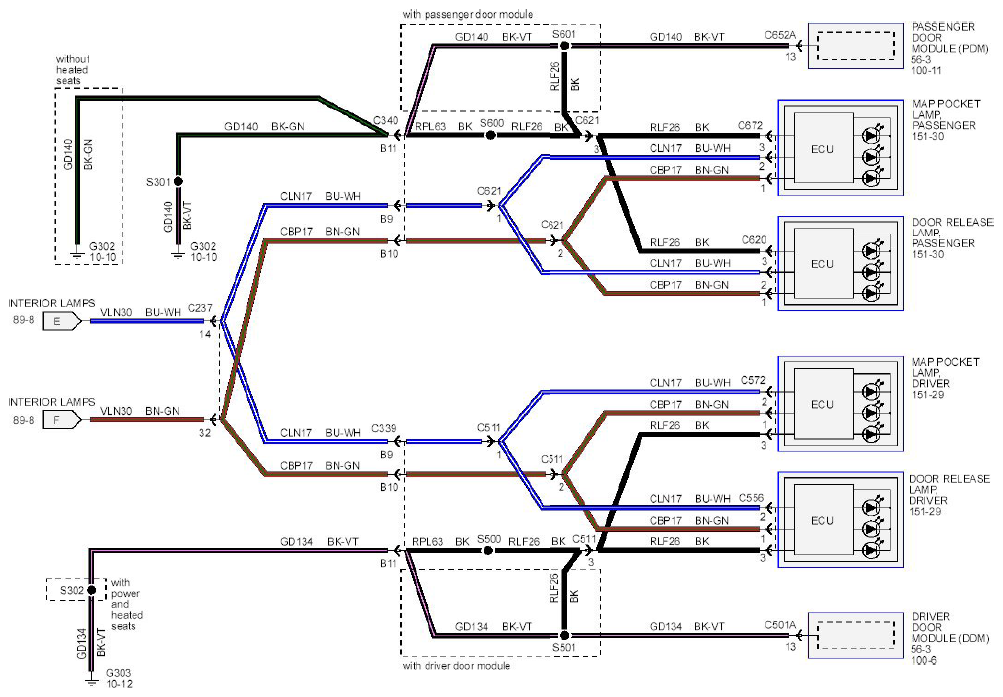

Fig 3: Interior Lamps - Circuit Diagram (3 Of 3)
G08750752Courtesy of FORD MOTOR CO.
