Instrument Cluster
>>
Notes
Instrument Cluster: Notes

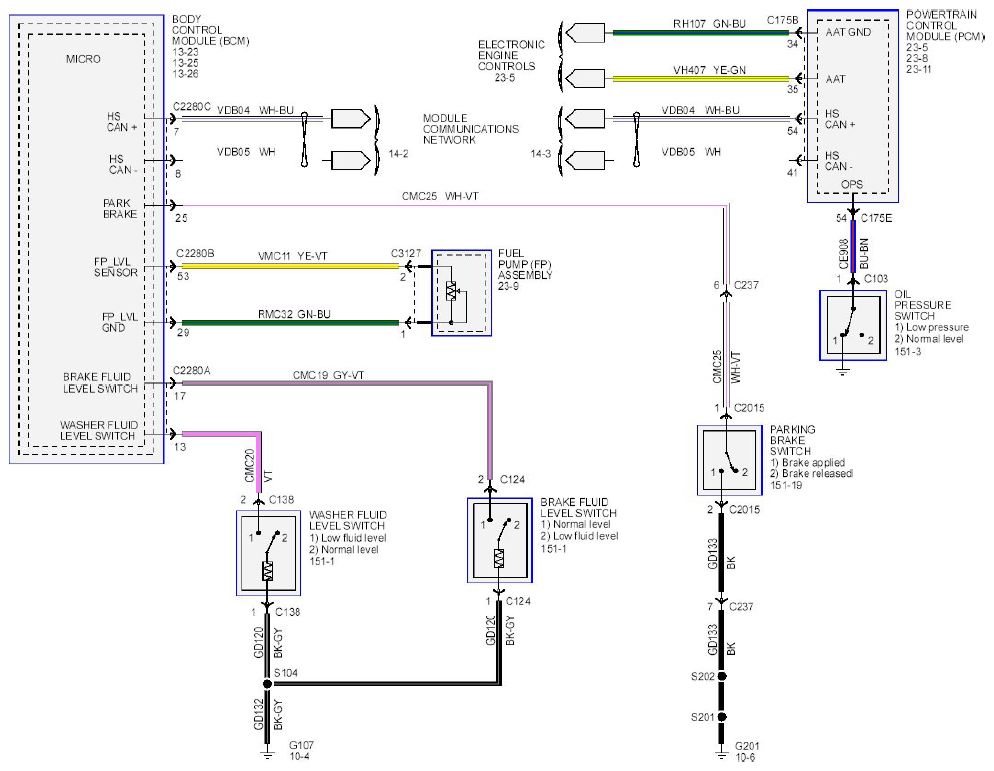

Fig 1: Instrument Cluster - Circuit Diagram (1 Of 3)
Courtesy of FORD MOTOR CO.

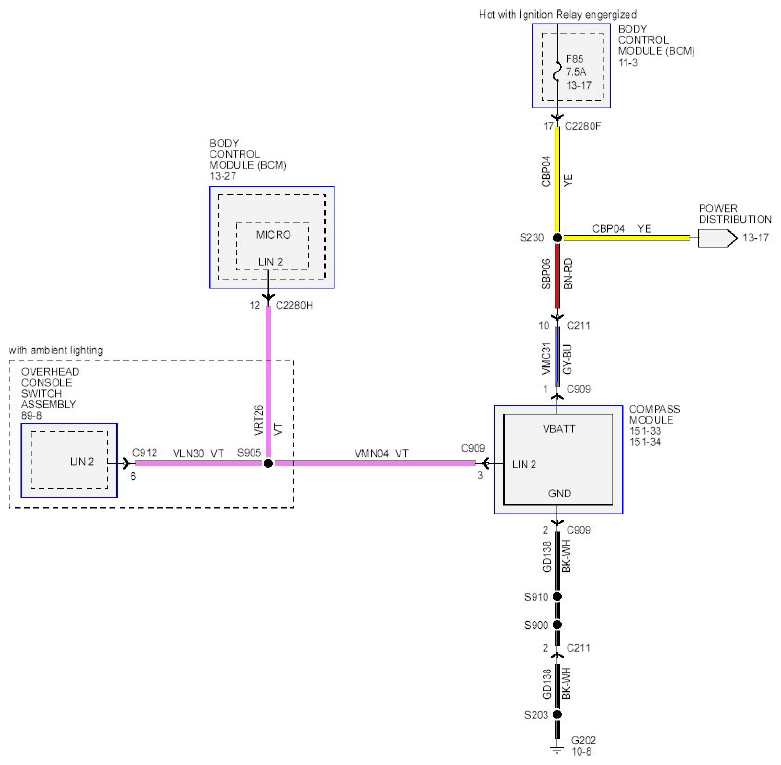

Fig 2: Instrument Cluster - Circuit Diagram (2 Of 3)
Courtesy of FORD MOTOR CO.

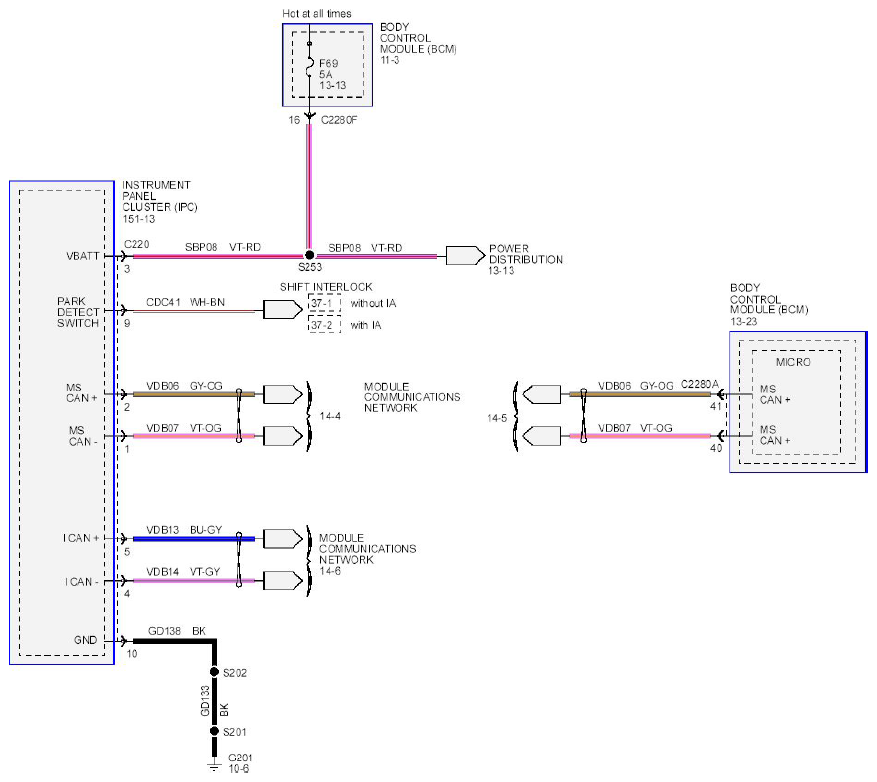

Fig 3: Instrument Cluster - Circuit Diagram (3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
