Instrument Cluster: GTDI

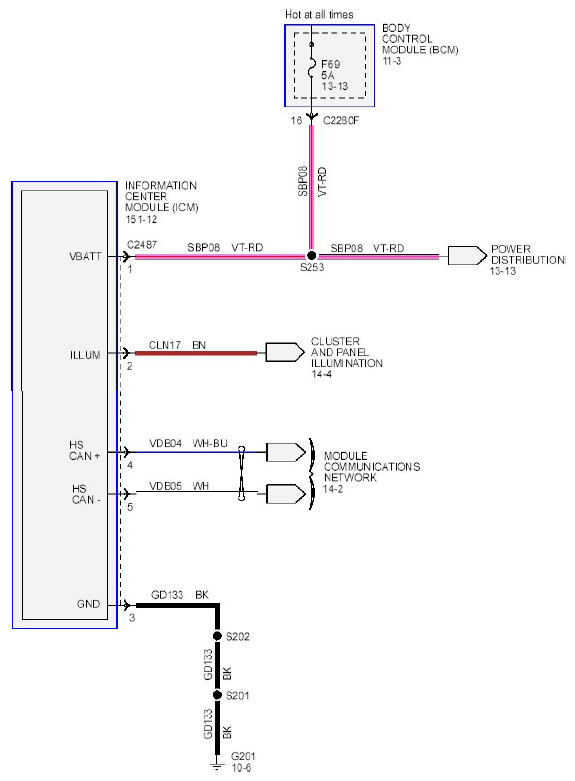

Fig 1: Instrument Cluster (GTDI) - Circuit Diagram

G08744334

Courtesy of FORD MOTOR CO.
