Heated Window
>>
Notes
Heated Window: Notes

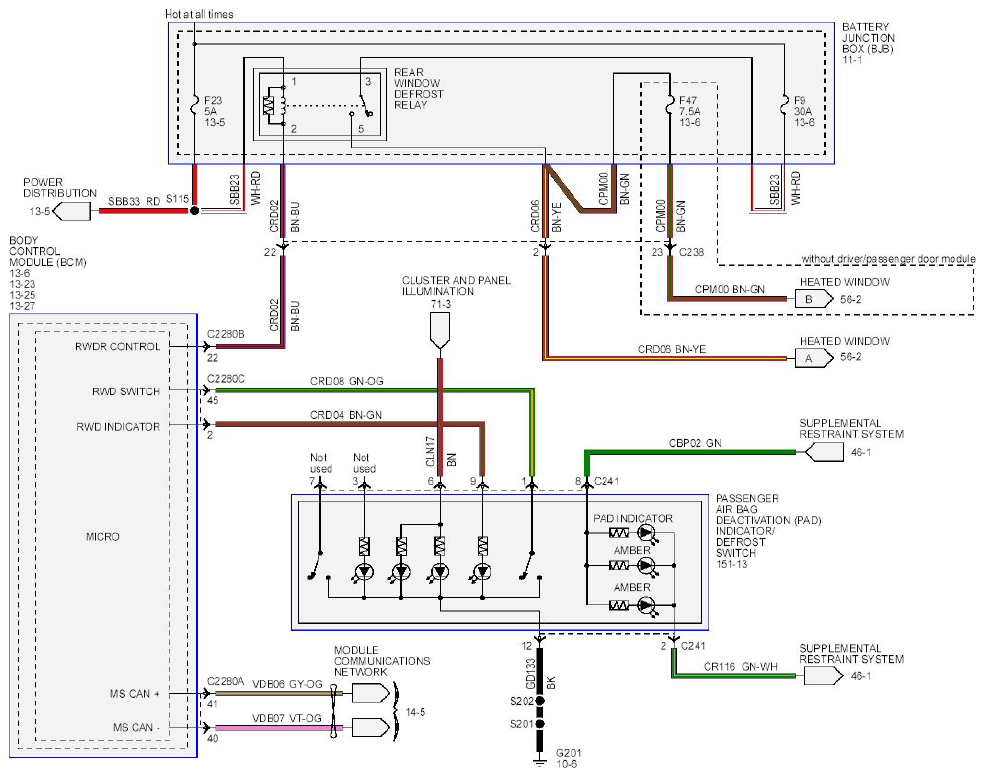

Fig 1: Heated Window - Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

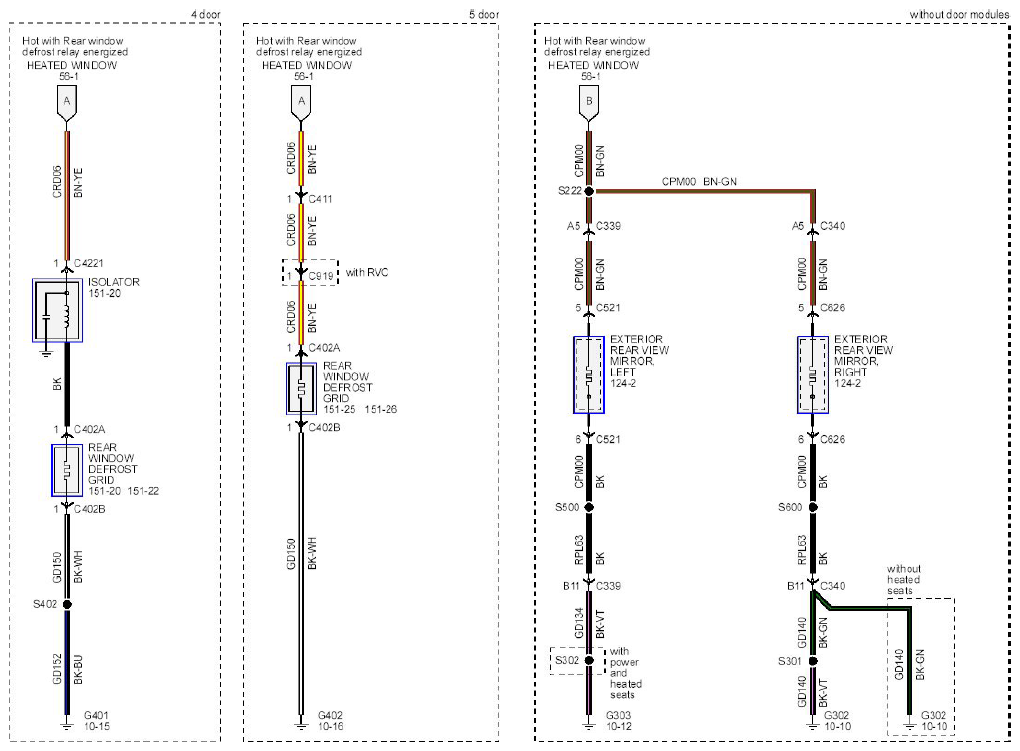

Fig 2: Heated Window - Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
