OEM Wiring Diagrams - Except Electric: Headlamps/AUTOLAMPS: Notes

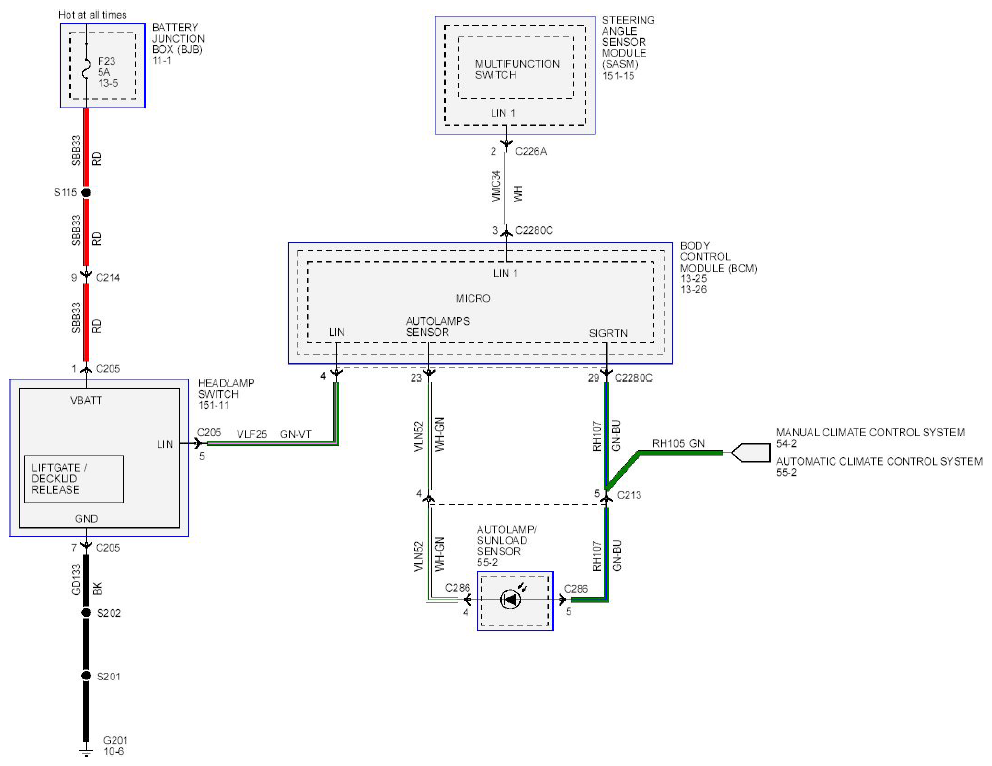

Fig 1: Headlamps_Autolamps - Circuit Diagram

G08744344

Courtesy of FORD MOTOR CO.
