OEM Wiring Diagrams - Except Electric: Headlamps/AUTOLAMPS: Hid

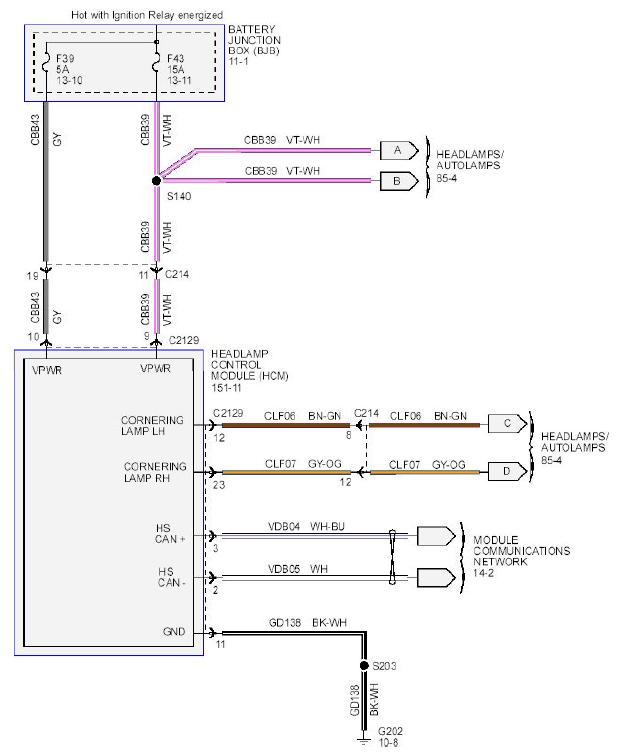

Fig 1: HID Headlamps - Circuit Diagram (1 Of 2)
G08744346Courtesy of FORD MOTOR CO.

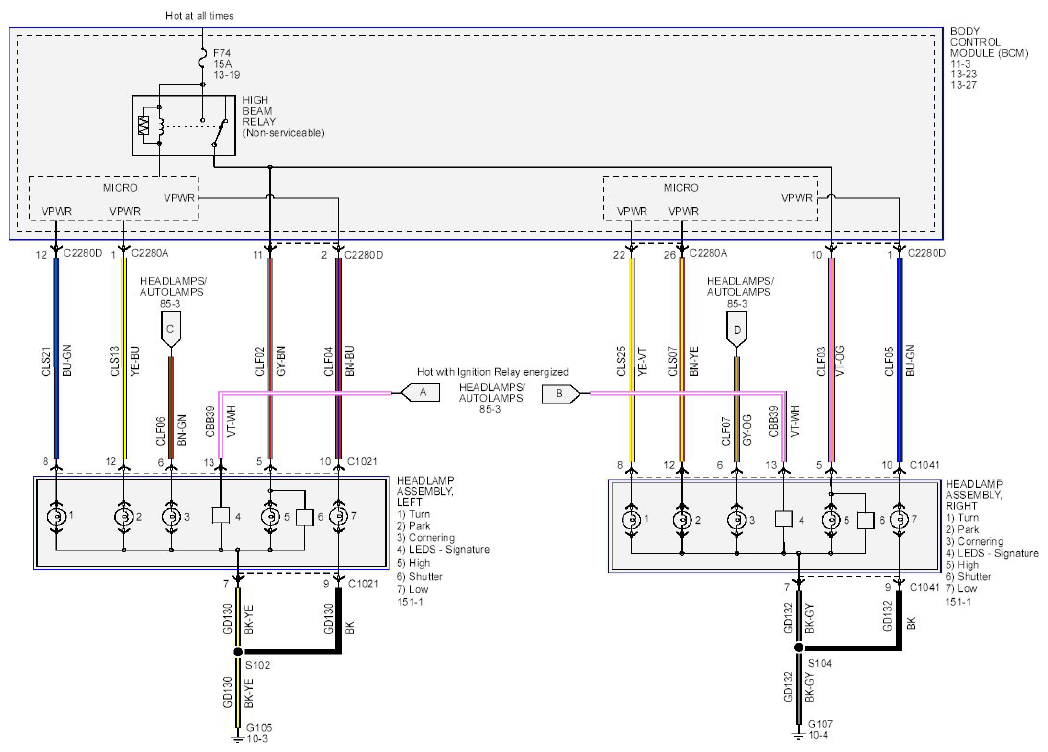

Fig 2: HID Headlamps - Circuit Diagram (2 Of 2)
G08744347Courtesy of FORD MOTOR CO.
