OEM Wiring Diagrams - Except Electric: Headlamps/AUTOLAMPS: Halogen

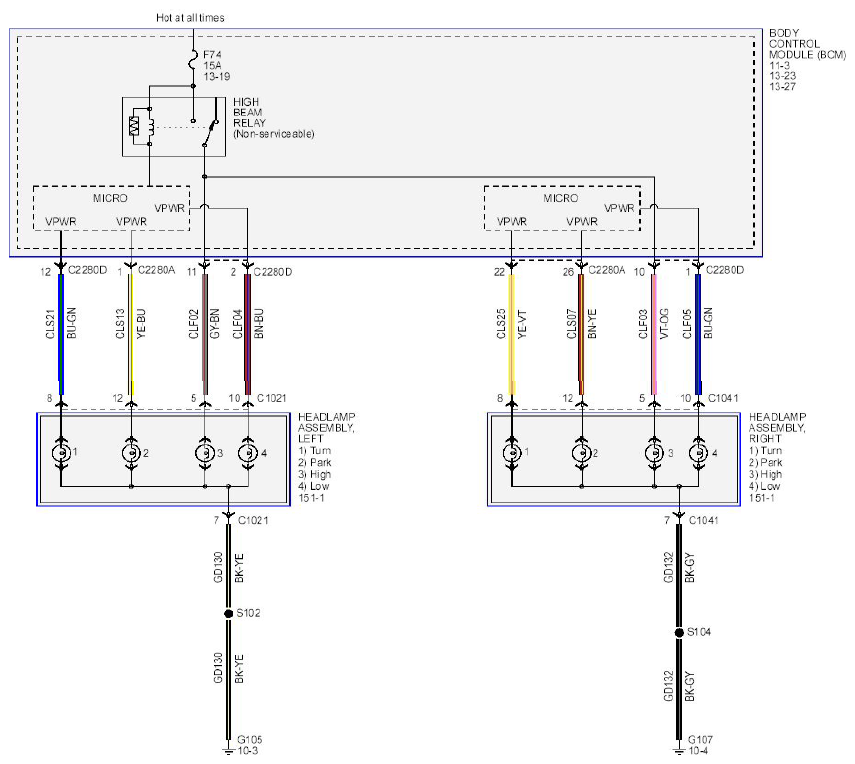

Fig 1: Halogen Headlamps - Circuit Diagram

G08744345

Courtesy of FORD MOTOR CO.
