Cruise Control: Notes

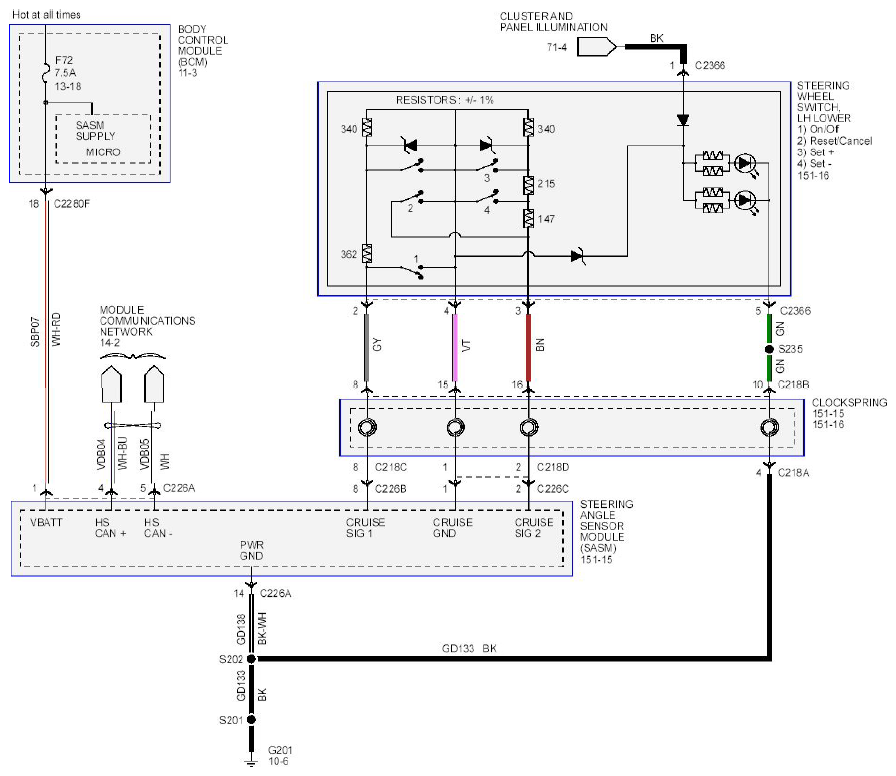

Fig 1: Cruise Control - Circuit Diagram

G08750739

Courtesy of FORD MOTOR CO.
