Cruise Control: GTDI

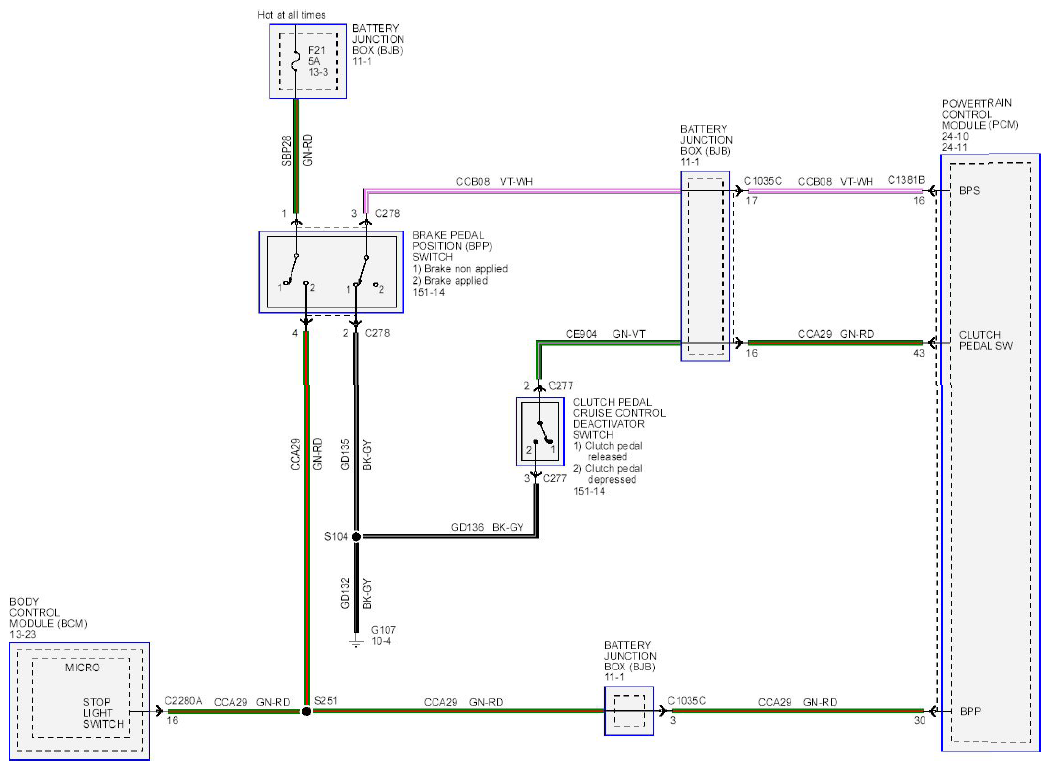

Fig 1: Cruise Control (GTDI) - Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

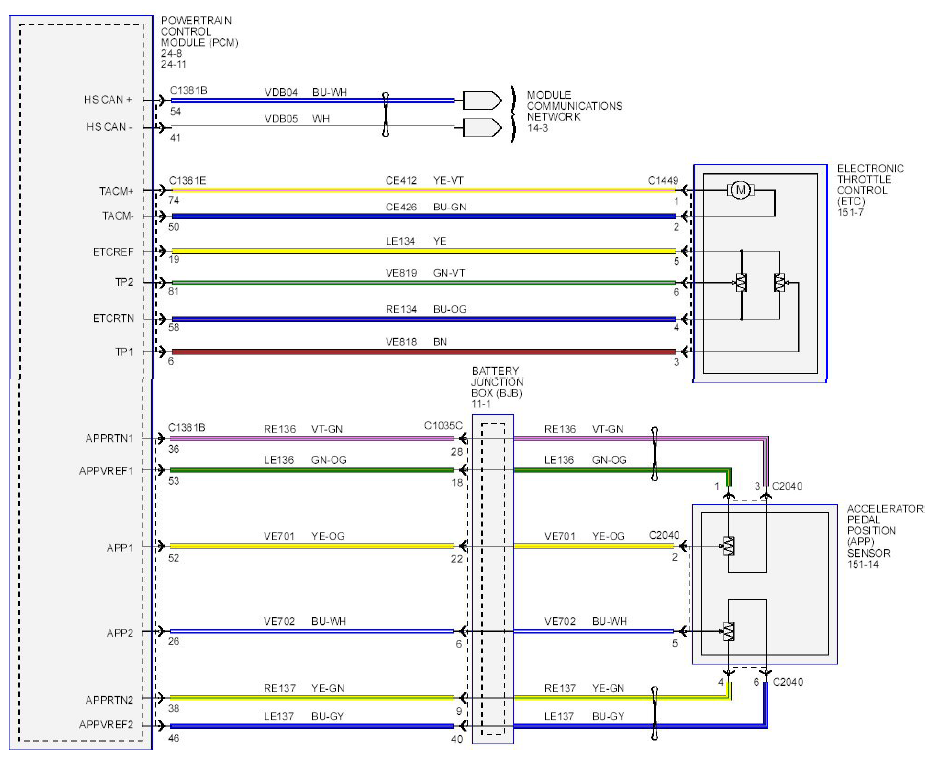

Fig 2: Cruise Control (GTDI) - Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
