Cluster And Panel Illumination

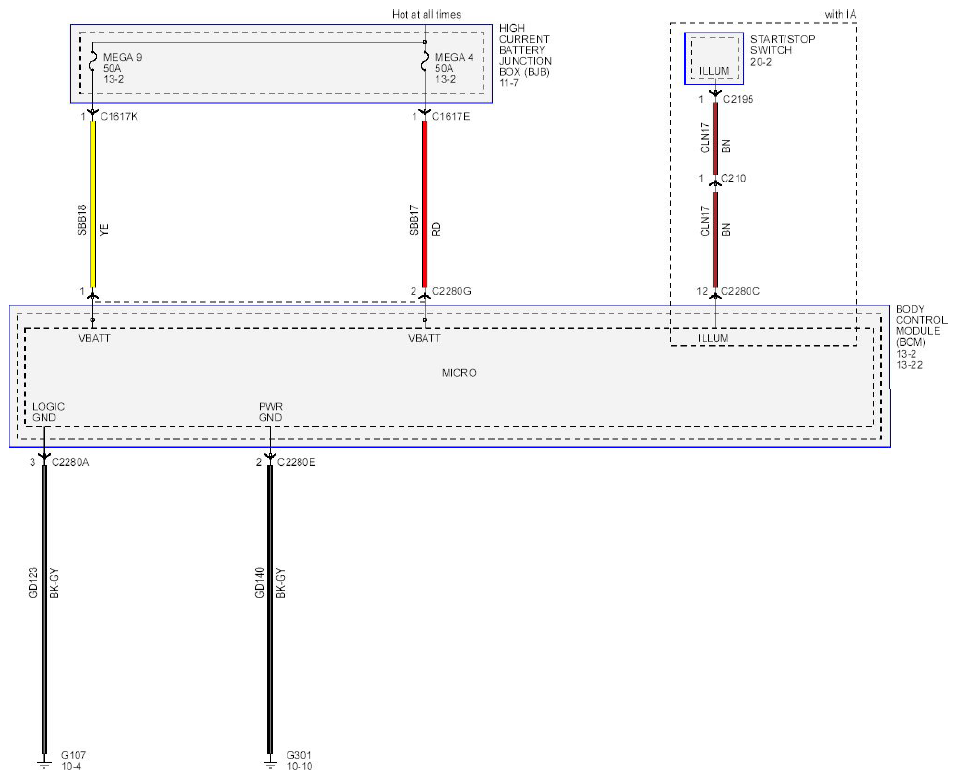

Fig 1: Cluster And Panel Illumination - Circuit Diagram (1 Of 5)
G08744335Courtesy of FORD MOTOR CO.

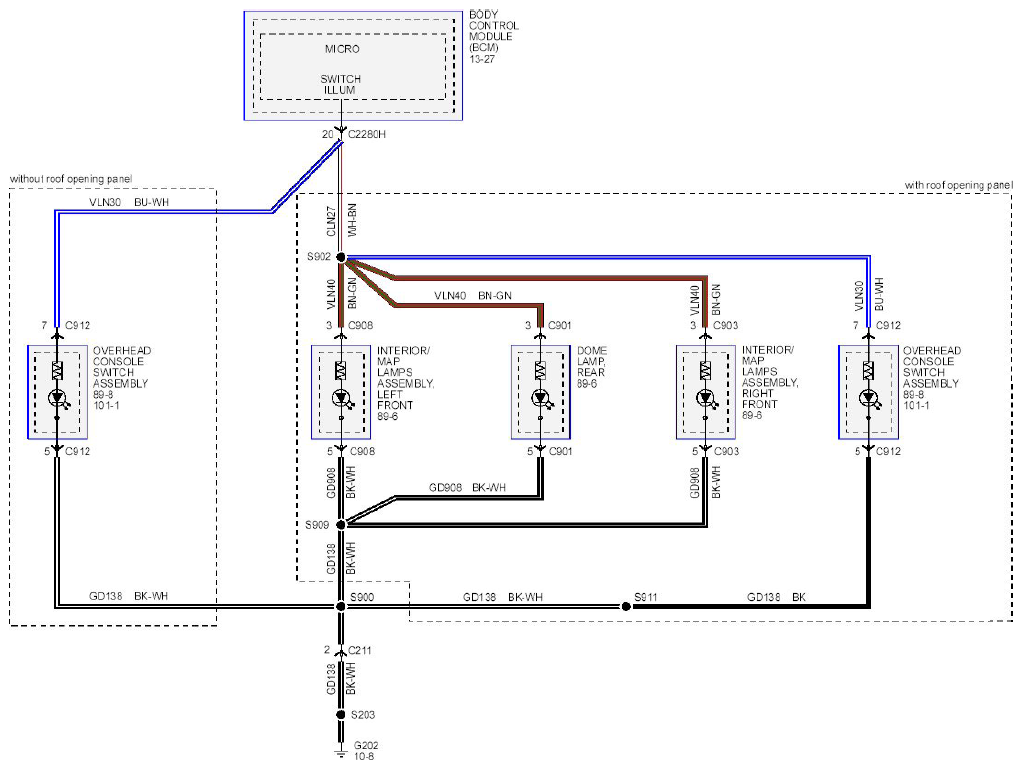

Fig 2: Cluster And Panel Illumination - Circuit Diagram (2 Of 5)
G08744336Courtesy of FORD MOTOR CO.

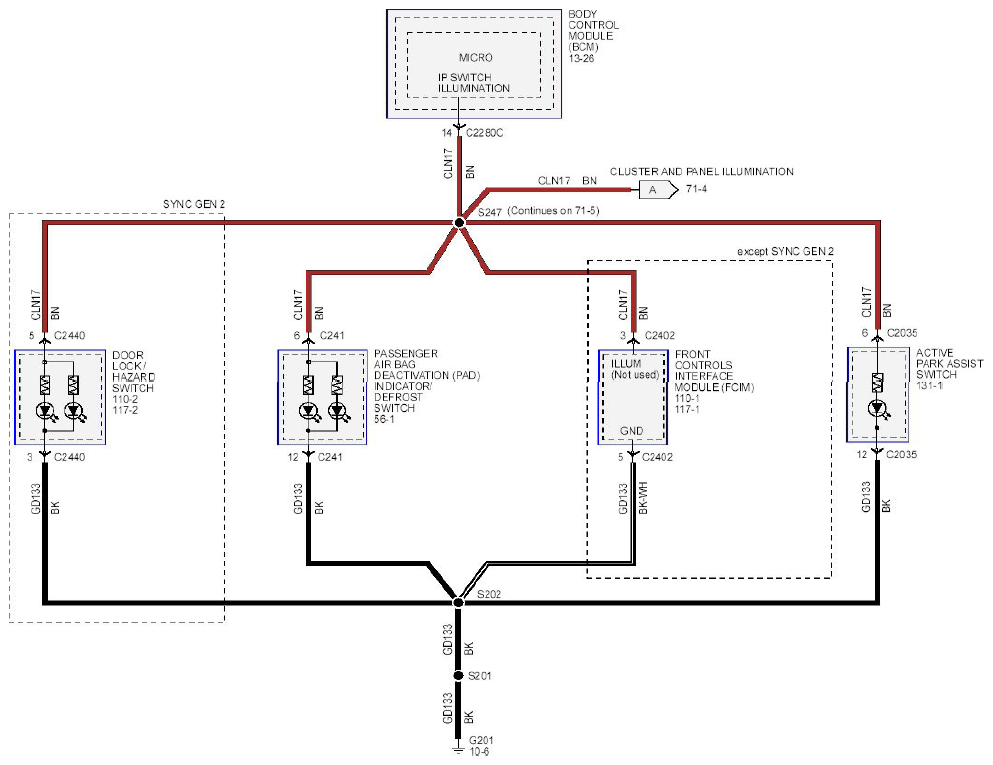

Fig 3: Cluster And Panel Illumination - Circuit Diagram (3 Of 5)
G08744337Courtesy of FORD MOTOR CO.

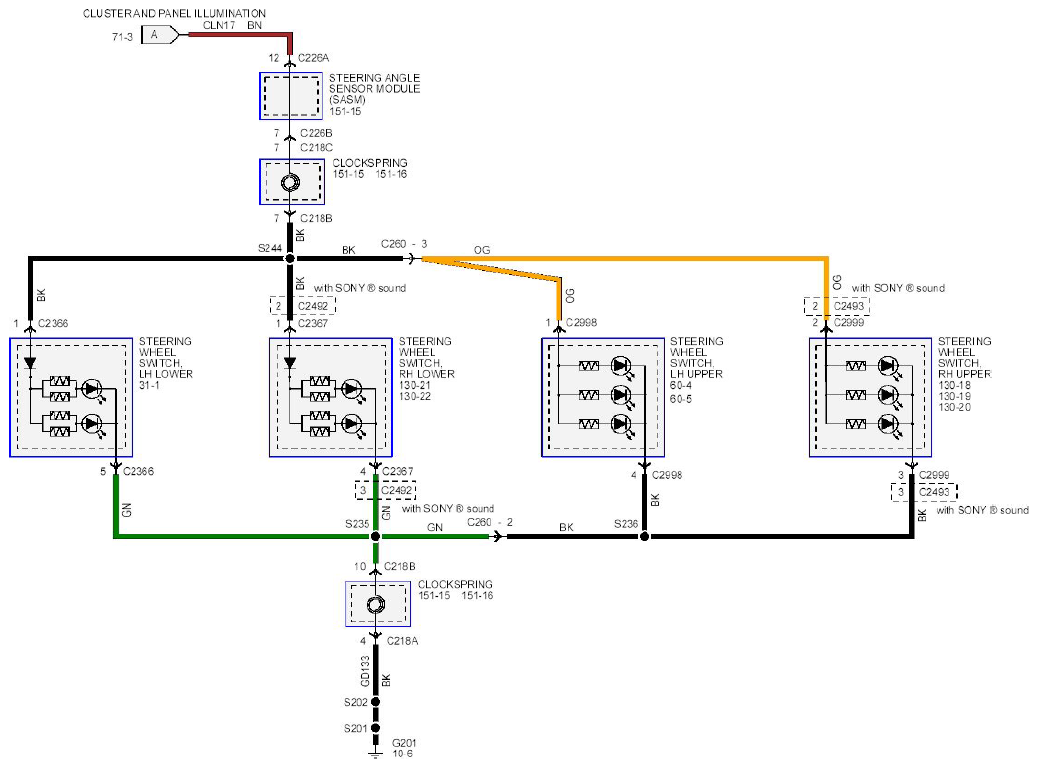

Fig 4: Cluster And Panel Illumination - Circuit Diagram (4 Of 5)
G08744338Courtesy of FORD MOTOR CO.

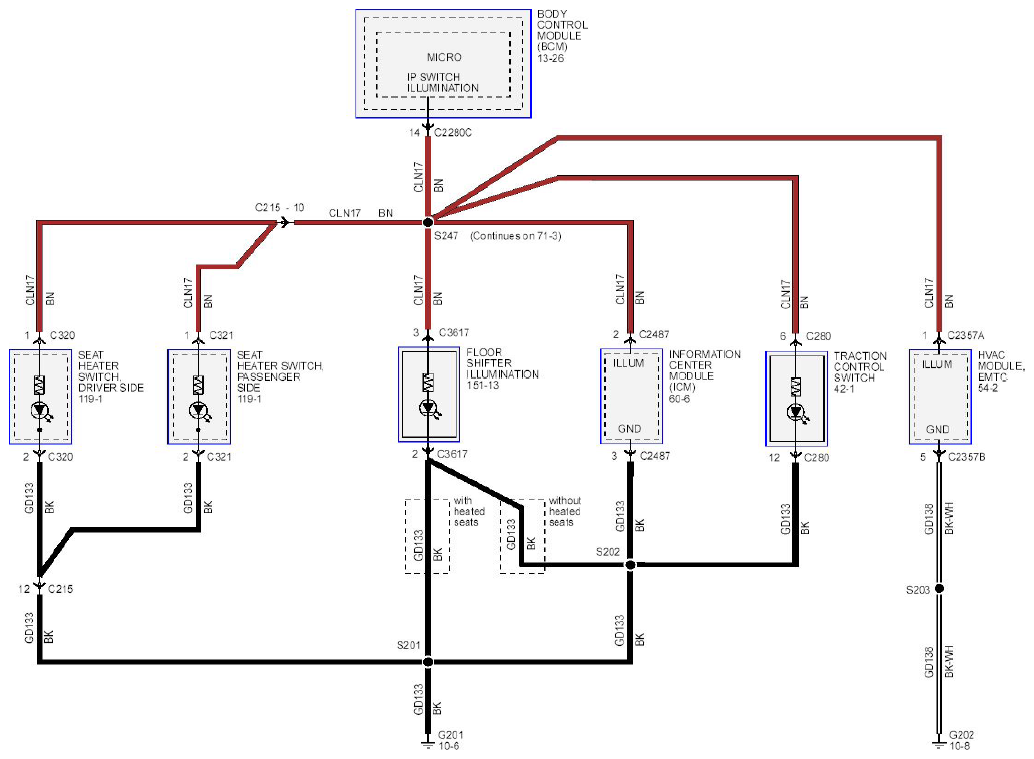

Fig 5: Cluster And Panel Illumination - Circuit Diagram (5 Of 5)
G08744339Courtesy of FORD MOTOR CO.
