Climate Controlled Seats

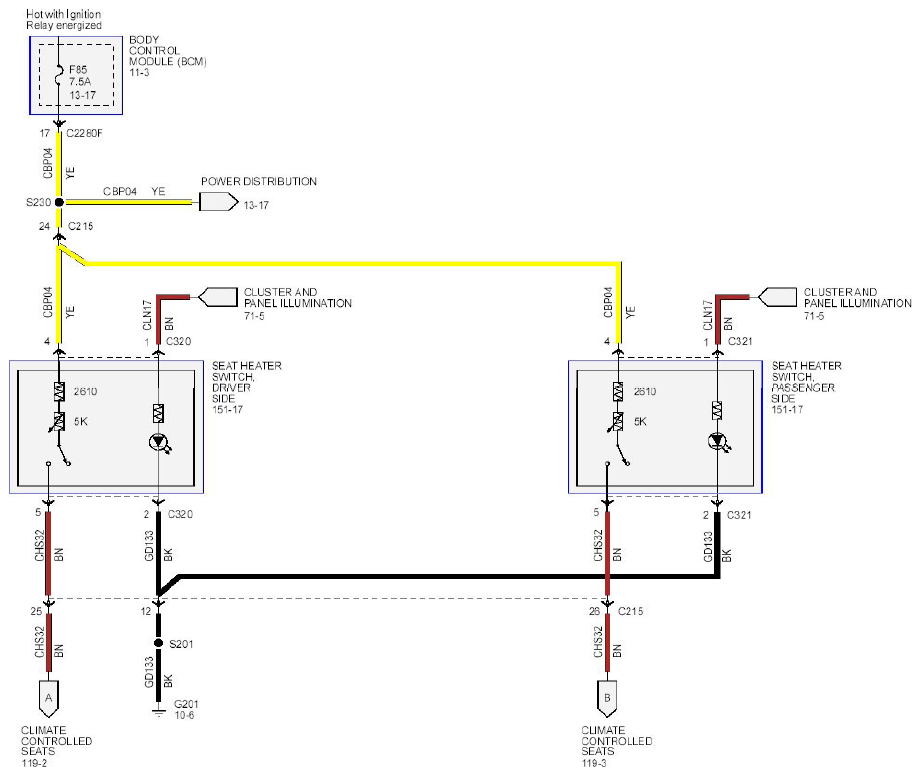

Fig 1: Climate Controlled Seats - Circuit Diagram (1 Of 3)

Courtesy of FORD MOTOR CO.

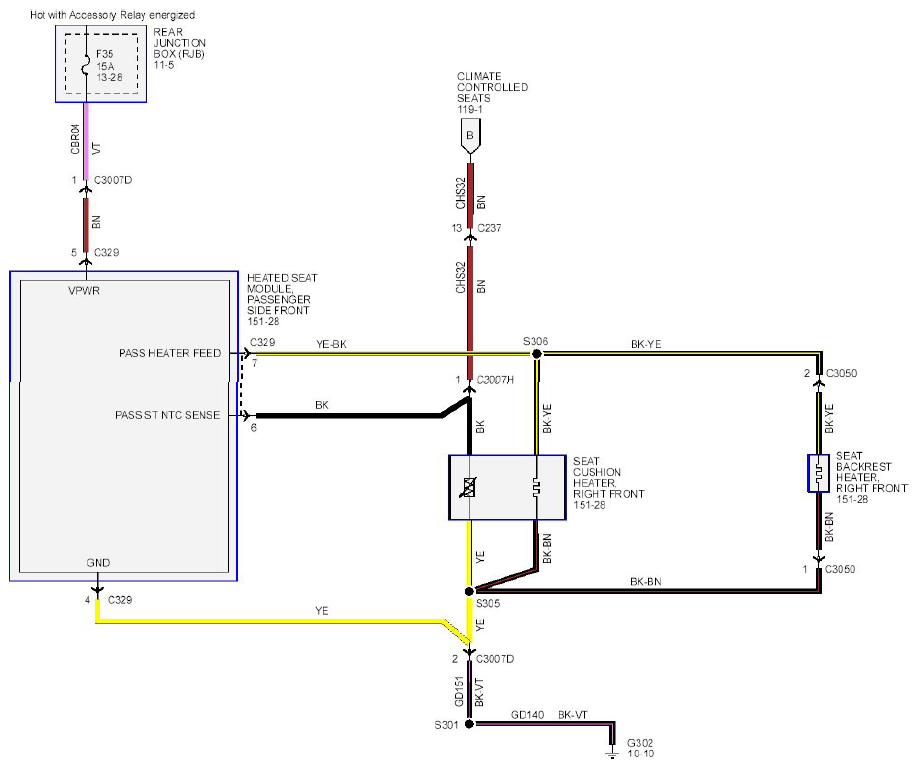

Fig 2: Climate Controlled Seats - Circuit Diagram (2 Of 3)

Courtesy of FORD MOTOR CO.

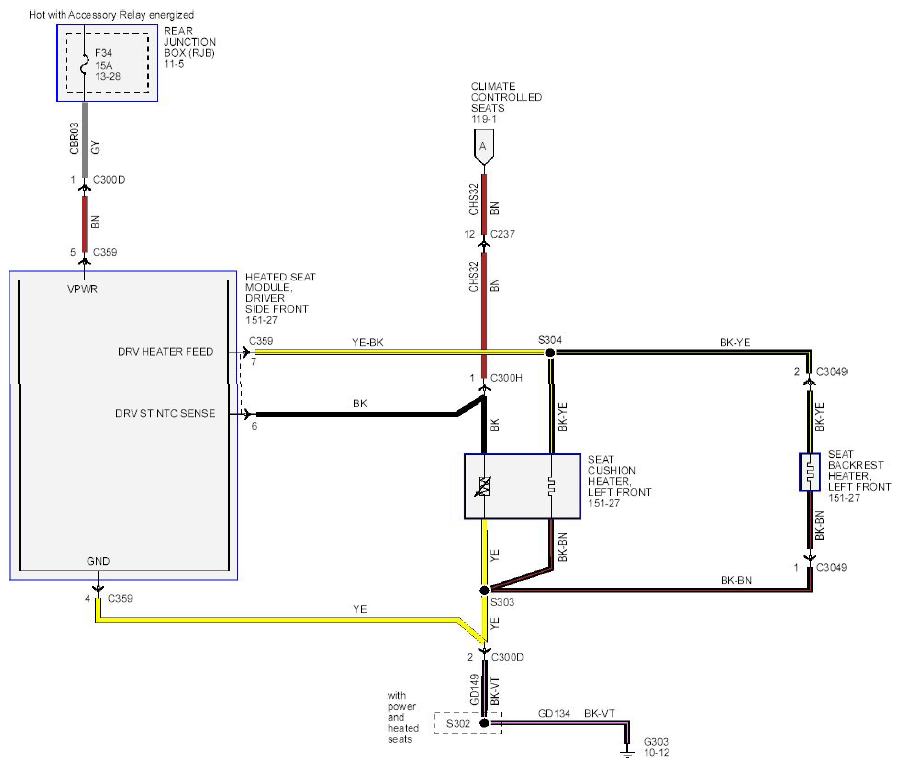

Fig 3: Climate Controlled Seats - Circuit Diagram (3 Of 3)

Courtesy of FORD MOTOR CO.
