Home >> Ford >> 2013 >> Focus Titanium, 4D Sedan, Standard Trans, Gas >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams - Except Electric >> Charging System >> GTDI

Charging System: GTDI

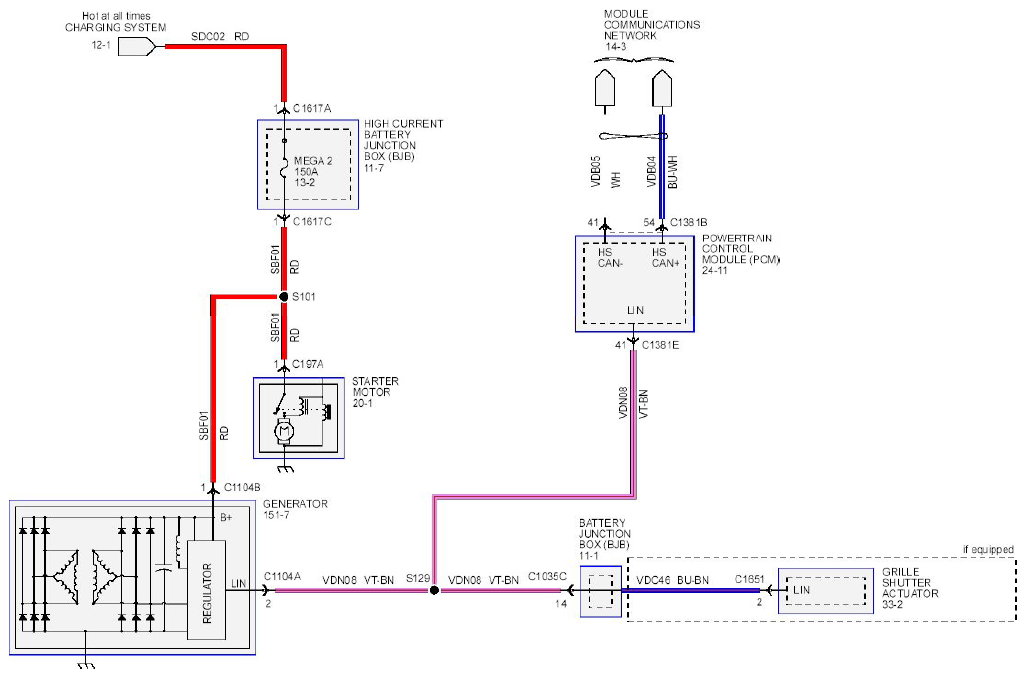

Fig 1: Charging System - Circuit Diagram (GTDI)

G08744231

Courtesy of FORD MOTOR CO.
