Charging System: GDI

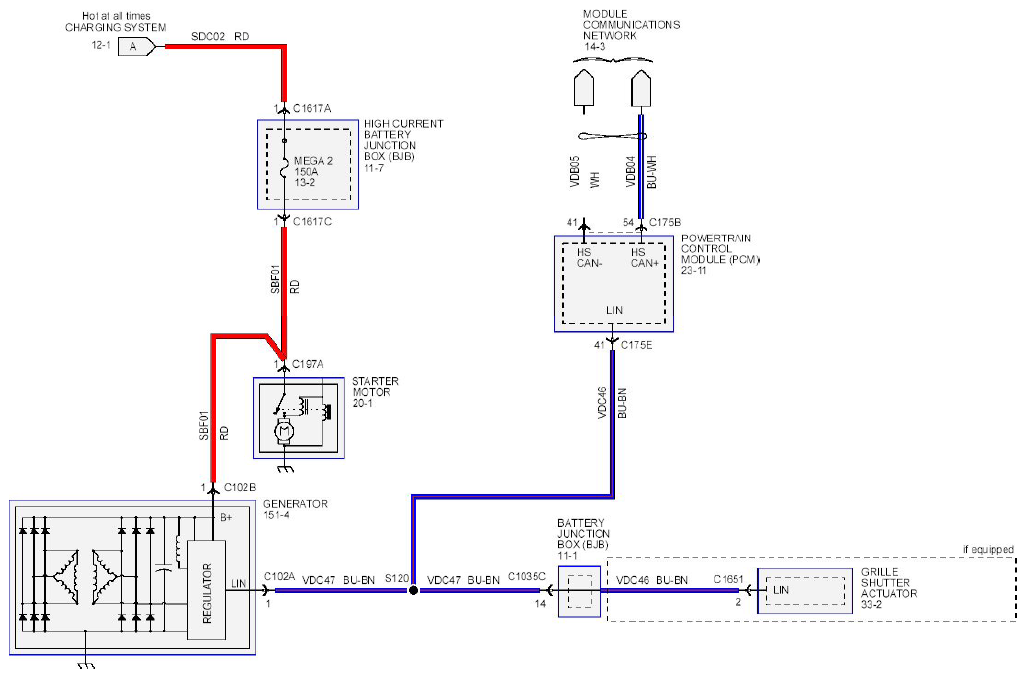

Fig 1: Charging System - Circuit Diagram (GDI)

G08744230

Courtesy of FORD MOTOR CO.
