With SONY ® Sound

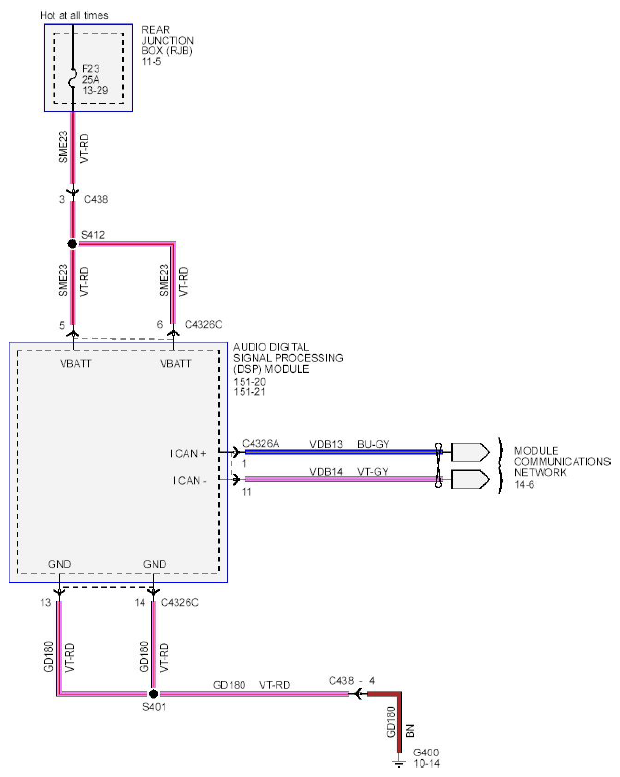

Fig 1: Audio System/Navigation (With Sony ® Sound) - Circuit Diagram (1 Of 4)
G08744416Courtesy of FORD MOTOR CO.

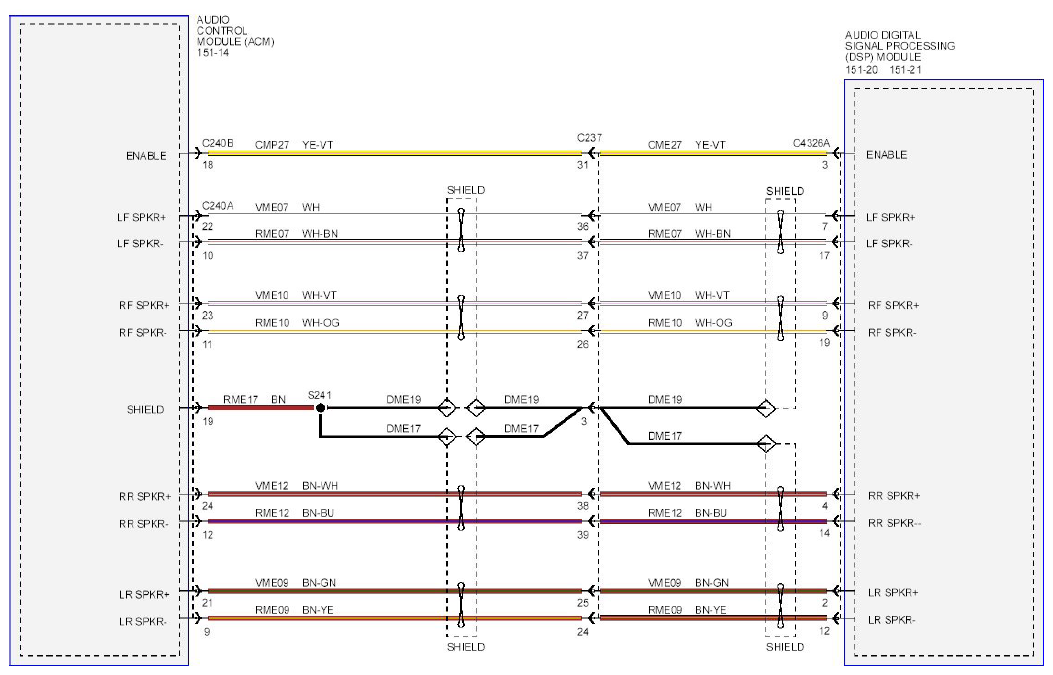

Fig 2: Audio System/Navigation (With Sony ® Sound) - Circuit Diagram (2 Of 4)
G08744417Courtesy of FORD MOTOR CO.

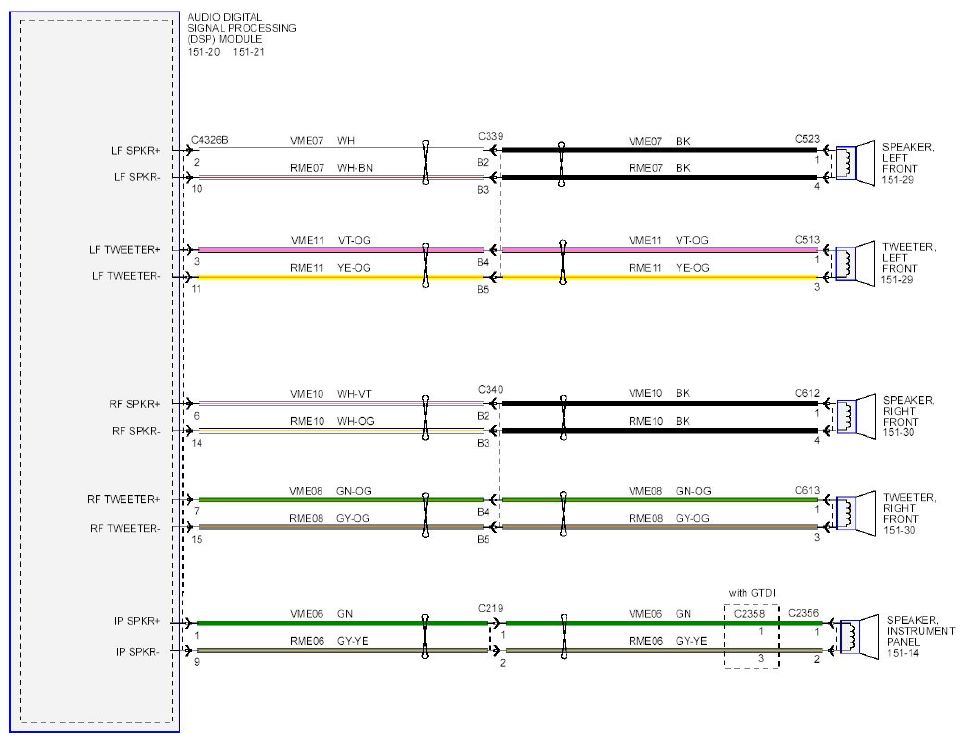

Fig 3: Audio System/Navigation (With Sony ® Sound) - Circuit Diagram (3 Of 4)
G08744418Courtesy of FORD MOTOR CO.

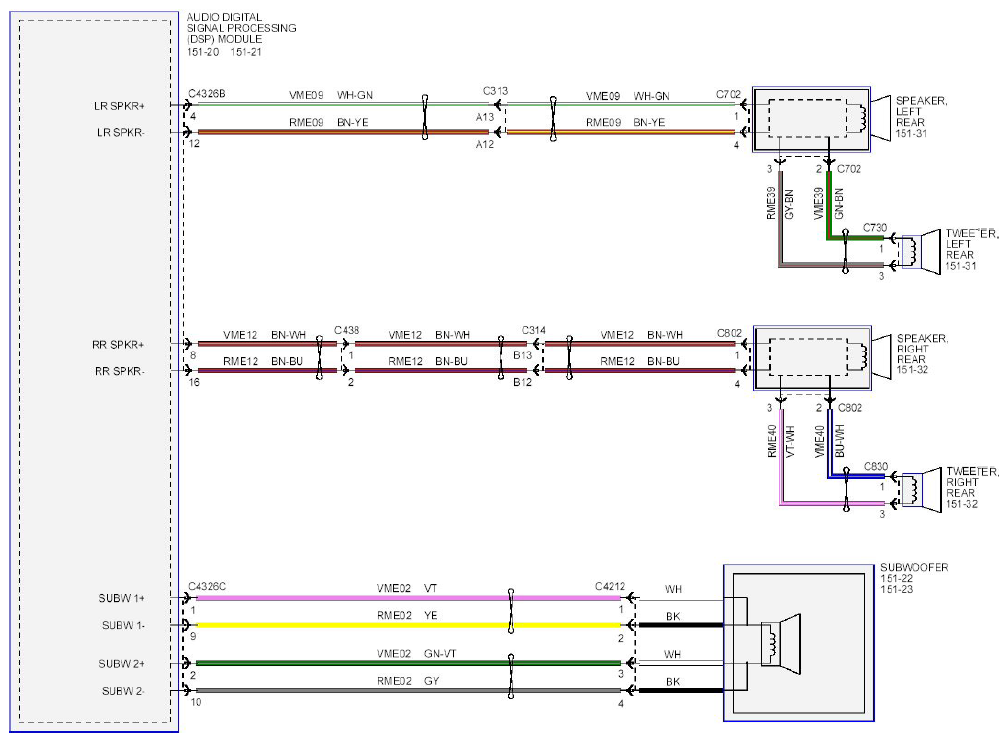

Fig 4: Audio System/Navigation (With Sony ® Sound) - Circuit Diagram (4 Of 4)
G08744419Courtesy of FORD MOTOR CO.
