With SONY ® Sound RH Upper Switch

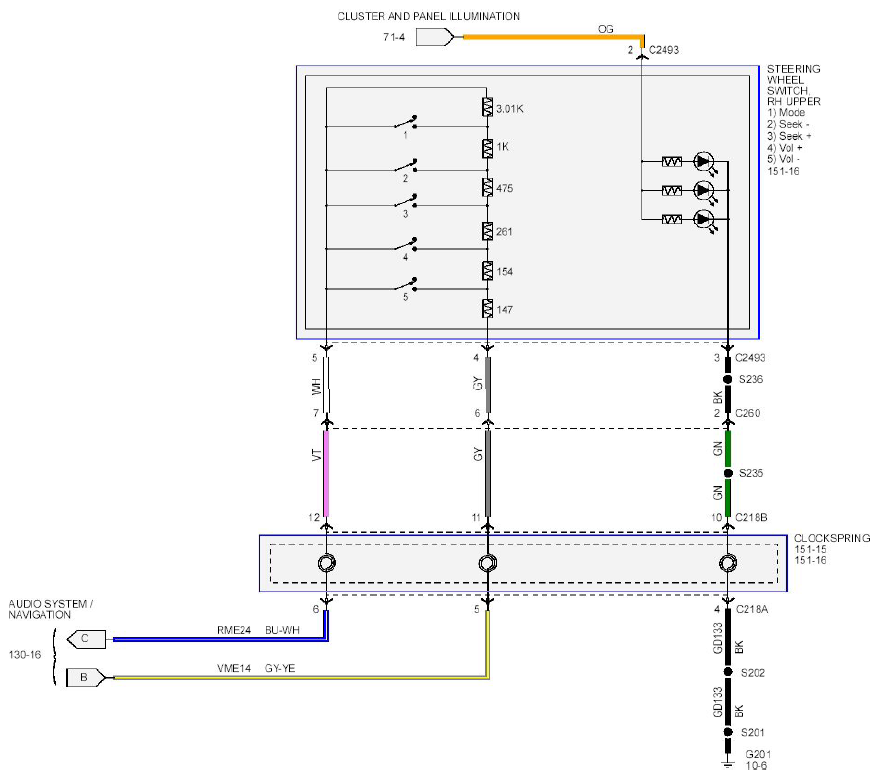

Fig 1: Audio System/Navigation (With Sony ® Sound RH Upper Switch) - Circuit Diagram
G08744429Courtesy of FORD MOTOR CO.


Fig 1: Audio System/Navigation (With Sony ® Sound RH Upper Switch) - Circuit Diagram
G08744431Courtesy of FORD MOTOR CO.
