Sync Gen 2

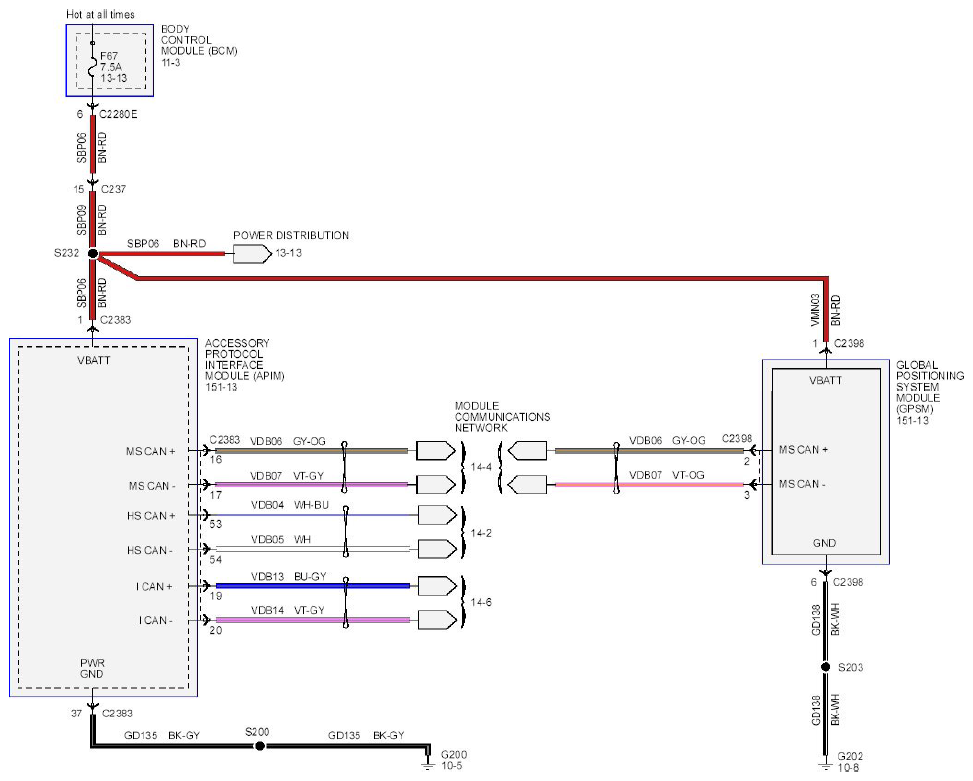

Fig 1: Audio System/Navigation (SYNC GEN 2) - Circuit Diagram (1 Of 4)
G08744422Courtesy of FORD MOTOR CO.

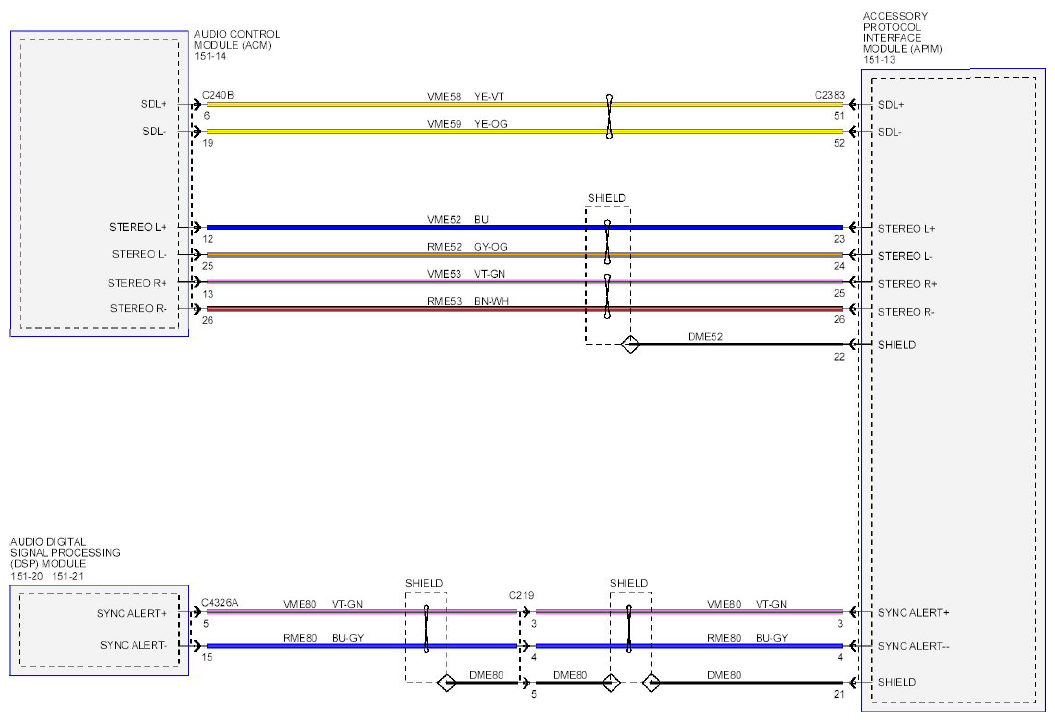

Fig 2: Audio System/Navigation (SYNC GEN 2) - Circuit Diagram (2 Of 4)
G08744423Courtesy of FORD MOTOR CO.

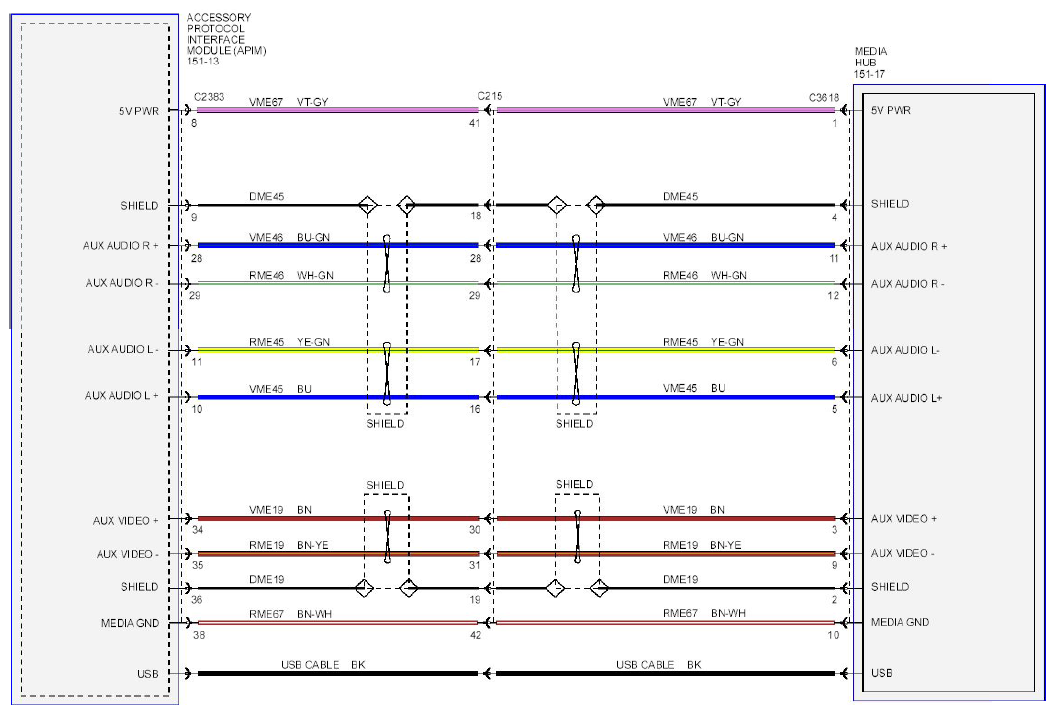

Fig 3: Audio System/Navigation (SYNC GEN 2) - Circuit Diagram (3 Of 4)
G08744424Courtesy of FORD MOTOR CO.

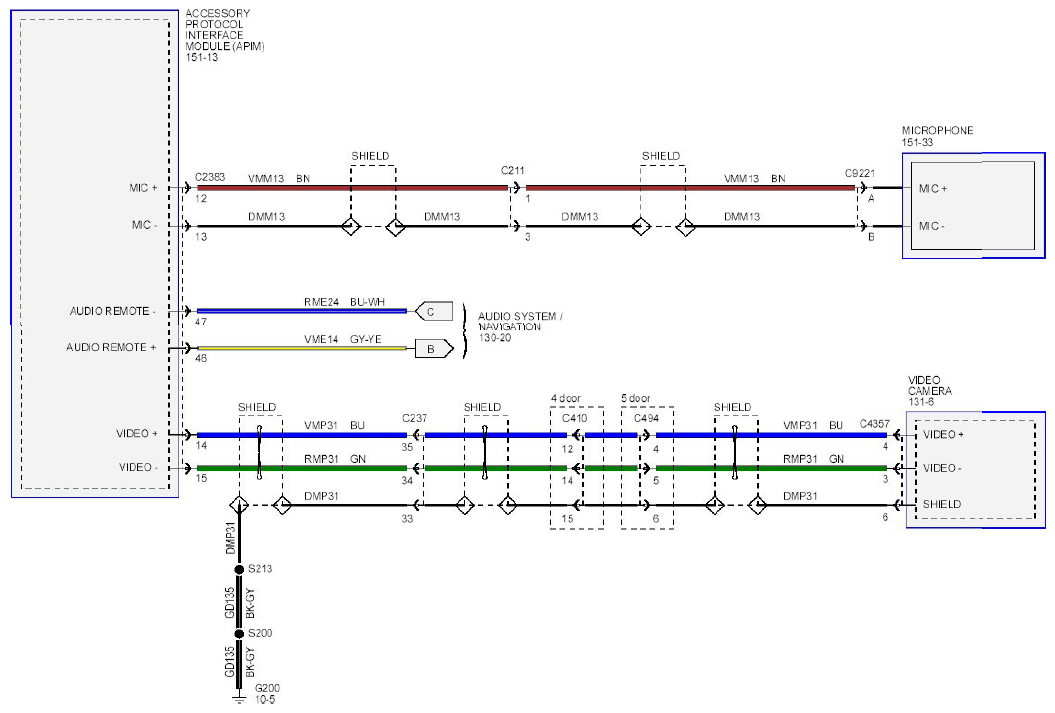

Fig 4: Audio System/Navigation (SYNC GEN 2) - Circuit Diagram (4 Of 4)
G08744425Courtesy of FORD MOTOR CO.
