Home >> Ford >> 2013 >> Focus Titanium, 4D Sedan, Standard Trans, Gas >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams - Except Electric >> Audio System/Navigation >> Sync Gen 1

Sync Gen 1

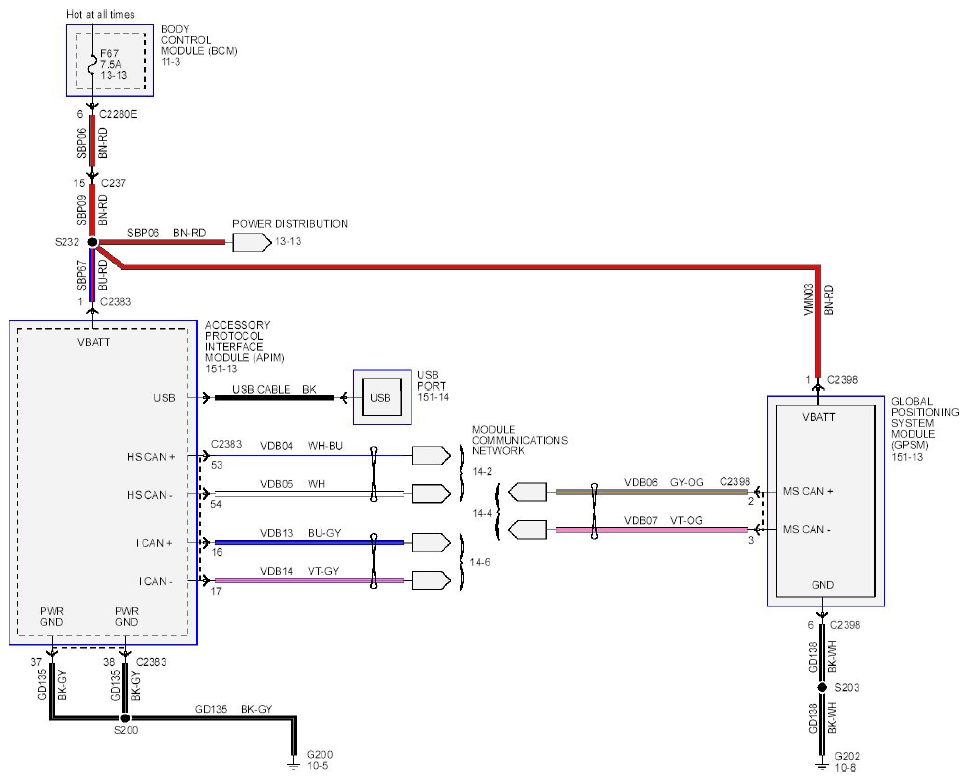

Fig 1: Audio System/Navigation (SYNC GEN 1) - Circuit Diagram (1 Of 2)
G08744420Courtesy of FORD MOTOR CO.

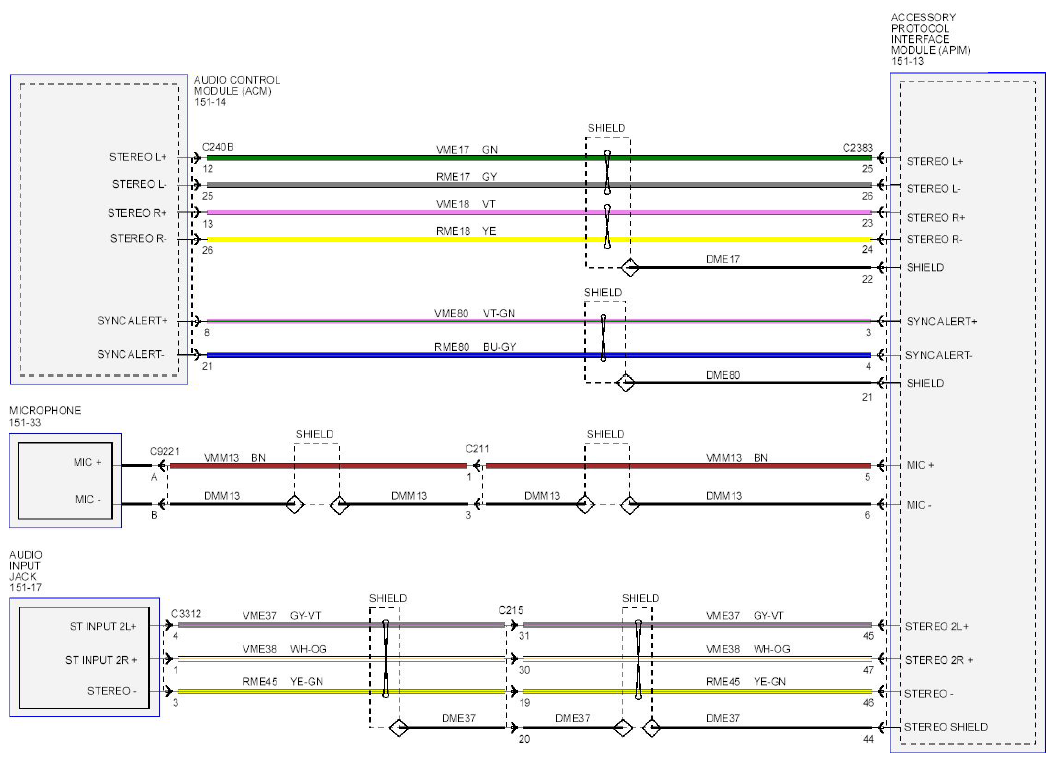

Fig 2: Audio System/Navigation (SYNC GEN 1) - Circuit Diagram (2 Of 2)
G08744421Courtesy of FORD MOTOR CO.
