Audio System/Navigation: Notes
Fig 1: Audio System/Navigation - Circuit Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

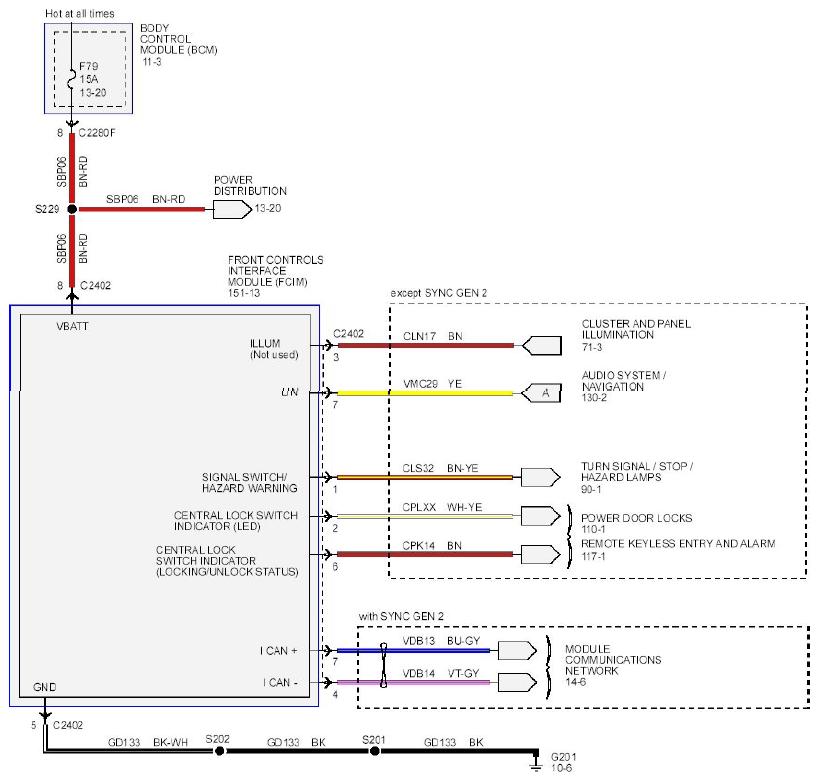

Fig 2: Audio System/Navigation - Circuit Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

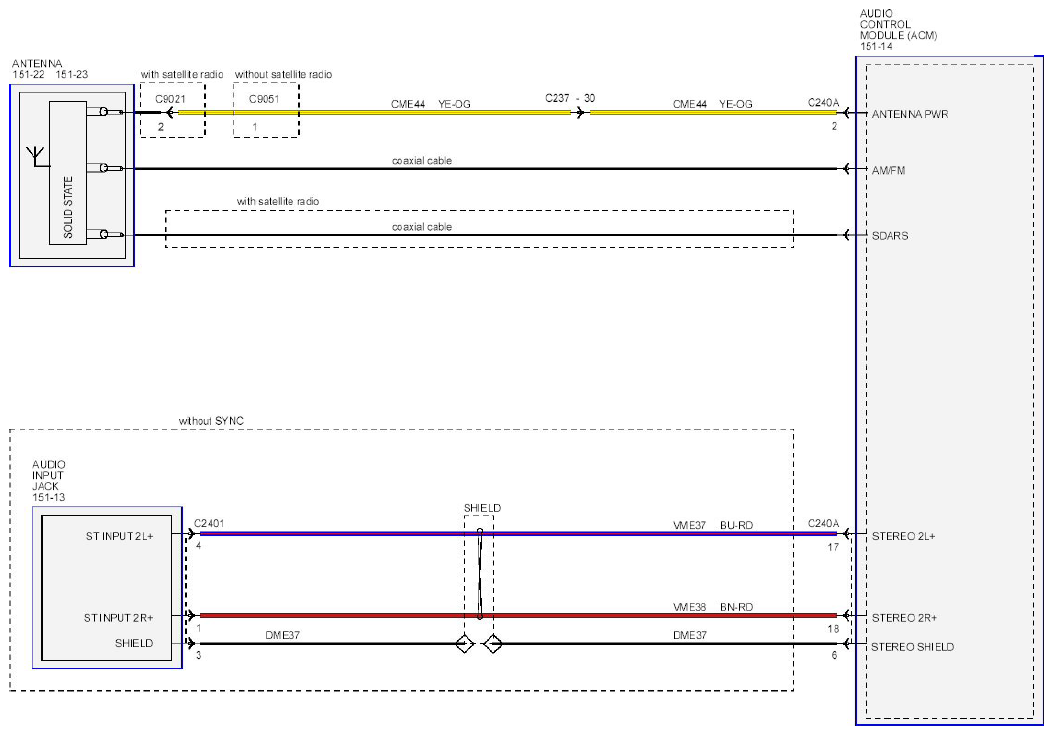

Fig 3: Audio System/Navigation - Circuit Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.
Fig 4: Audio System/Navigation - Circuit Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
