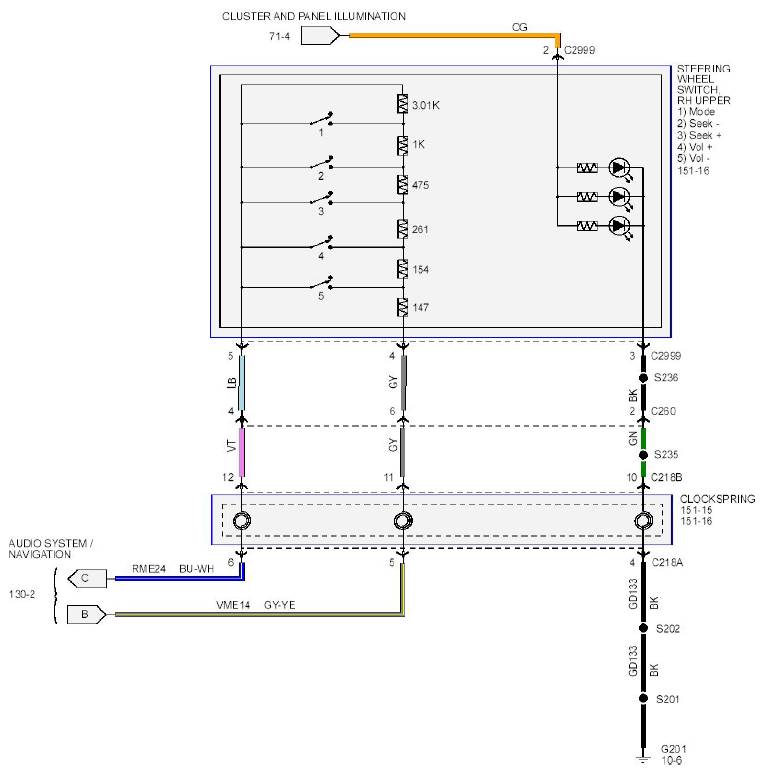

Home >> Ford >> 2013 >> Focus Titanium, 4D Sedan, Standard Trans, Gas >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams - Except Electric >> Audio System/Navigation >> Base Audio RH Upper Switch
