Wheel Cylinder: Removal

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Removal steps in this procedure may include installation details.

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in SERVICE INFORMATION General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions ( HEALTH AND SAFETY PRECAUTIONS ).
Refer to: Brake Drum .
- Torque : 15 Nm
- Torque : 12 Nm

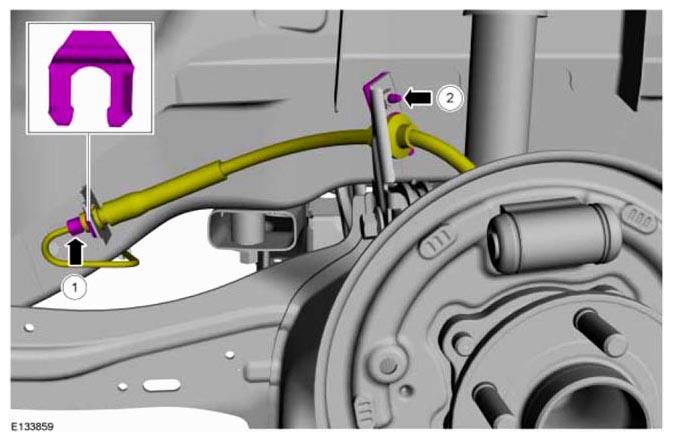

Fig 1: Locating Rear Brake Flexible Hose Clip And Bracket Bolt
Courtesy of FORD MOTOR CO.
- Torque : 23 Nm
- Torque : 12 Nm

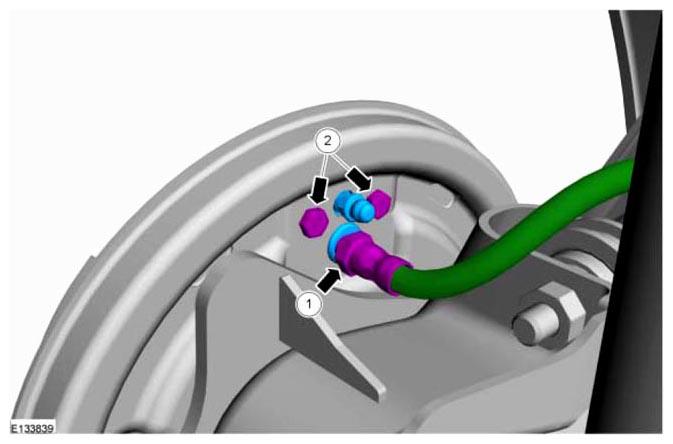

Fig 2: Locating Rear Brake Flexible Hose Fitting Nut
Courtesy of FORD MOTOR CO.
