Brake Shoes: Removal

Refer to: Health and Safety Precautions ( HEALTH AND SAFETY PRECAUTIONS ).
Refer to: Brake Drum .

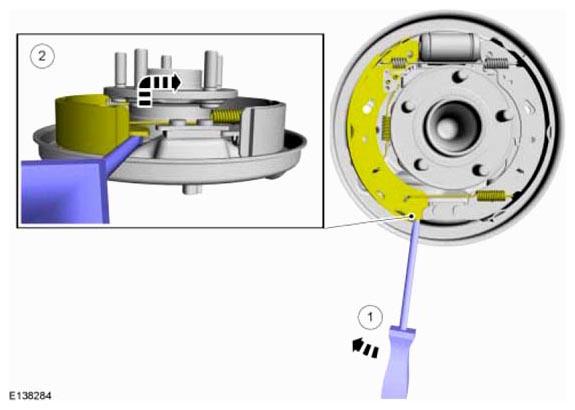

Fig 1: Locating Brake Shoe Retaining Clip
Courtesy of FORD MOTOR CO.
Fig 2: Removing Brake Shoe
Courtesy of FORD MOTOR CO.
Fig 3: Identifying Brake Shoe Return Spring
Courtesy of FORD MOTOR CO.
Fig 4: Removing Brake Shoe Return Spring
Courtesy of FORD MOTOR CO.
Fig 5: Identifying Brake Shoe
Courtesy of FORD MOTOR CO.
Fig 6: Removing Brake Shoe
Courtesy of FORD MOTOR CO.
Fig 7: Removing Brake Cable
Courtesy of FORD MOTOR CO.
