Component Location Charts

Fig 1: Identifying A/C Compressor Clutch Field Coil Connector (C100)

Courtesy of FORD MOTOR CO.

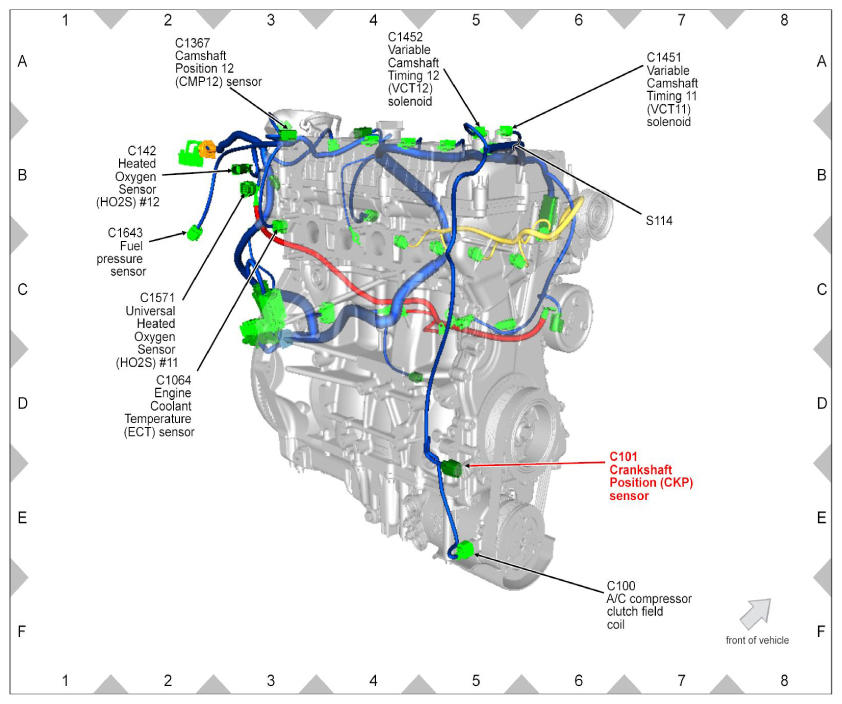

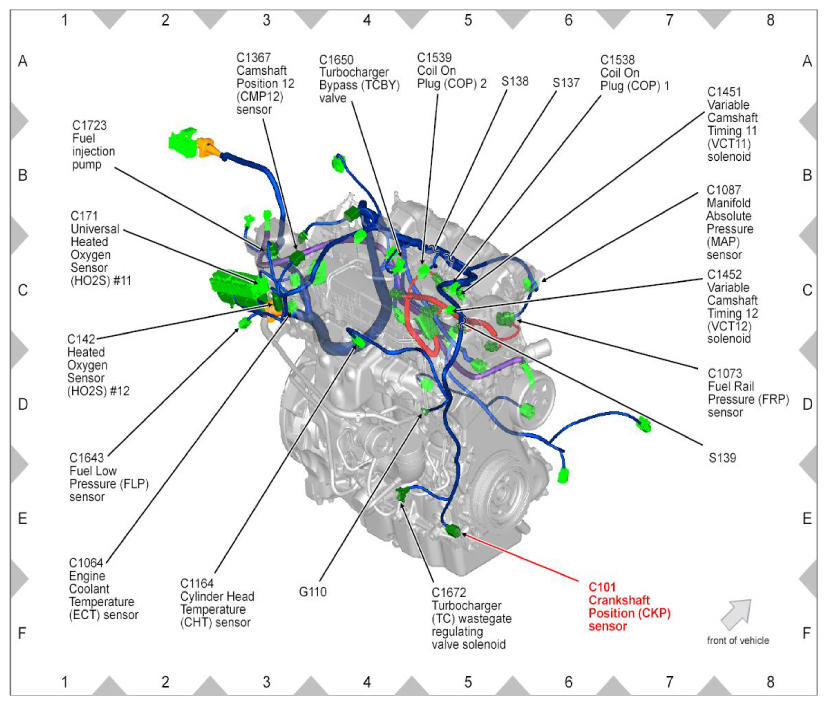

Fig 2: Identifying Crankshaft Position Sensor Connector (C101)

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Crankshaft Position Sensor Connector (C101) (GTDI)

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Generator Connector (C102A)

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Connector (C102B)

Courtesy of FORD MOTOR CO.

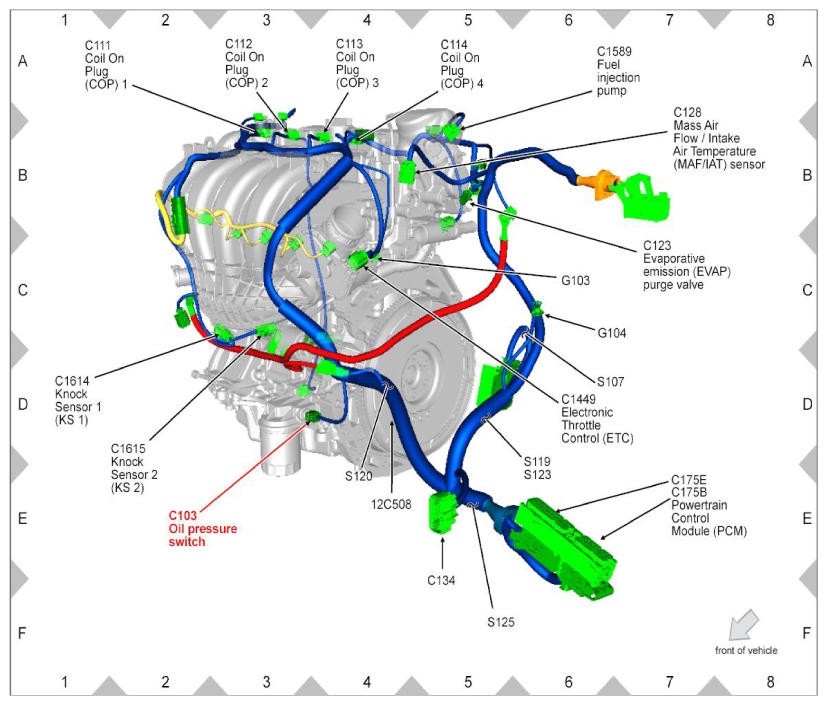

Fig 6: Identifying Oil Pressure Switch Connector (C103)

Courtesy of FORD MOTOR CO.

Fig 7: Identifying Connector (C110)

Courtesy of FORD MOTOR CO.

Fig 8: Identifying Coil On Plug 1 Connector (C111)

Courtesy of FORD MOTOR CO.

Fig 9: Identifying Coil On Plug 2 Connector (C112)

Courtesy of FORD MOTOR CO.

Fig 10: Identifying Coil On Plug 3 Connector (C113)

Courtesy of FORD MOTOR CO.

Fig 11: Identifying Coil On Plug 4 Connector (C114)

Courtesy of FORD MOTOR CO.

Fig 12: Identifying Evaporative Emission Purge Valve Connector (C123)

Courtesy of FORD MOTOR CO.

Fig 13: Identifying Evaporative Emission Purge Valve Connector (C123) (GTDI)

Courtesy of FORD MOTOR CO.

Fig 14: Identifying Brake Fluid Level Switch Connector (C124)

Courtesy of FORD MOTOR CO.

Fig 15: Identifying Anti-Theft Hood Switch Connector (C127)

Courtesy of FORD MOTOR CO.

Fig 16: Identifying Mass Air Flow/Intake Air Temperature Sensor Connector (C128)

Courtesy of FORD MOTOR CO.

Fig 17: Identifying Horn Connector (C131)

Courtesy of FORD MOTOR CO.

Fig 18: Identifying Connector (C133)

Courtesy of FORD MOTOR CO.

Fig 19: Identifying Connector (C133) (GTDI)

Courtesy of FORD MOTOR CO.

Fig 20: Identifying Connector (C134)

Courtesy of FORD MOTOR CO.

Fig 21: Identifying Anti-Lock Brake System Module Connector (C135)

Courtesy of FORD MOTOR CO.

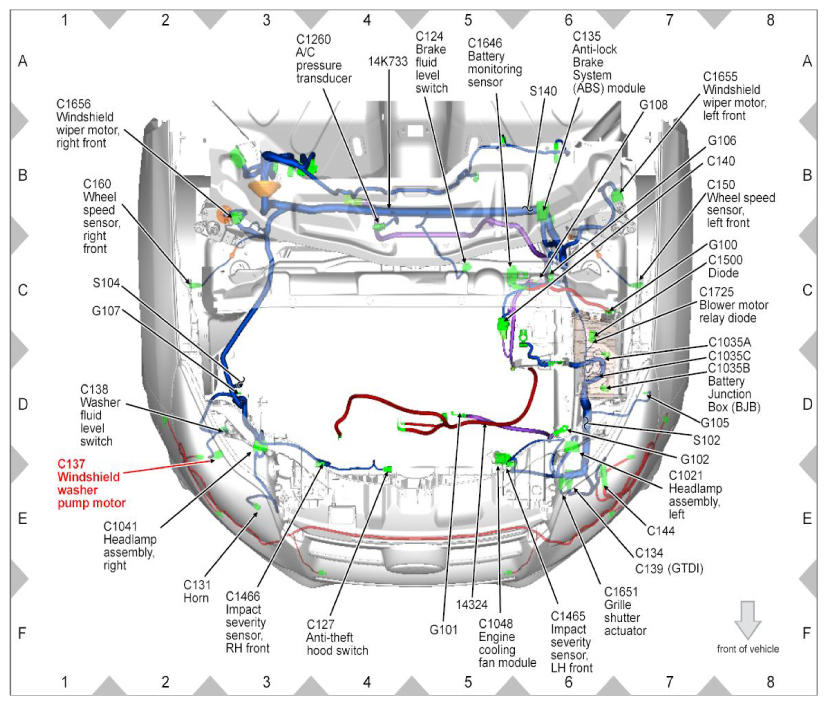

Fig 22: Identifying Windshield Washer Pump Motor Connector (C137)

Courtesy of FORD MOTOR CO.

Fig 23: Identifying Washer Fluid Level Switch Connector (C138)

Courtesy of FORD MOTOR CO.

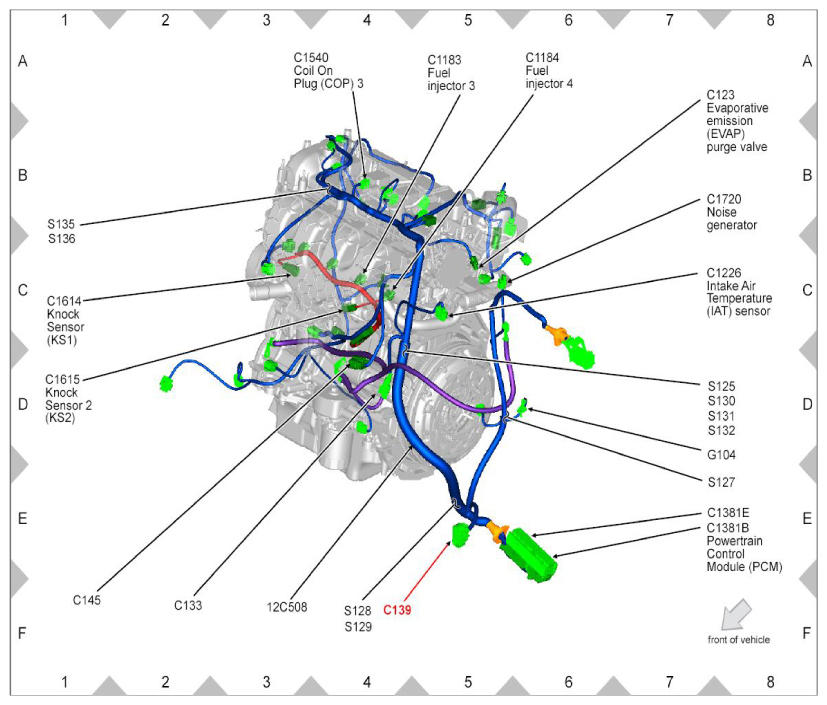

Fig 24: Identifying Connector (C139)

Courtesy of FORD MOTOR CO.

Fig 25: Identifying Connector (C139) (GTDI)

Courtesy of FORD MOTOR CO.

Fig 26: Identifying Connector (C140)

Courtesy of FORD MOTOR CO.

Fig 27: Identifying Heated Oxygen Sensor No. 12 Connector (C142)

Courtesy of FORD MOTOR CO.

Fig 28: Identifying Heated Oxygen Sensor No. 12 Connector (C142) (GTDI)

Courtesy of FORD MOTOR CO.

Fig 29: Identifying Input Shaft Speed Sensor 1 Connector (C143)

Courtesy of FORD MOTOR CO.

Fig 30: Identifying Connector (C144)

Courtesy of FORD MOTOR CO.

Fig 31: Identifying Connector (C145)

Courtesy of FORD MOTOR CO.

Fig 32: Identifying Wheel Speed Sensor, Left Front Connector (C150)

Courtesy of FORD MOTOR CO.

Fig 33: Identifying Fog Lamp, Left Front Connector (C152)

Courtesy of FORD MOTOR CO.

Fig 34: Identifying Wheel Speed Sensor, Right Front Connector (C160)

Courtesy of FORD MOTOR CO.

Fig 35: Identifying Fog Lamp, Right Front Connector (C162)

Courtesy of FORD MOTOR CO.

Fig 36: Identifying Input Shaft Speed Sensor 2 Connector (C164)

Courtesy of FORD MOTOR CO.

Fig 37: Identifying Transmission Range Sensor Connector (C167)

Courtesy of FORD MOTOR CO.

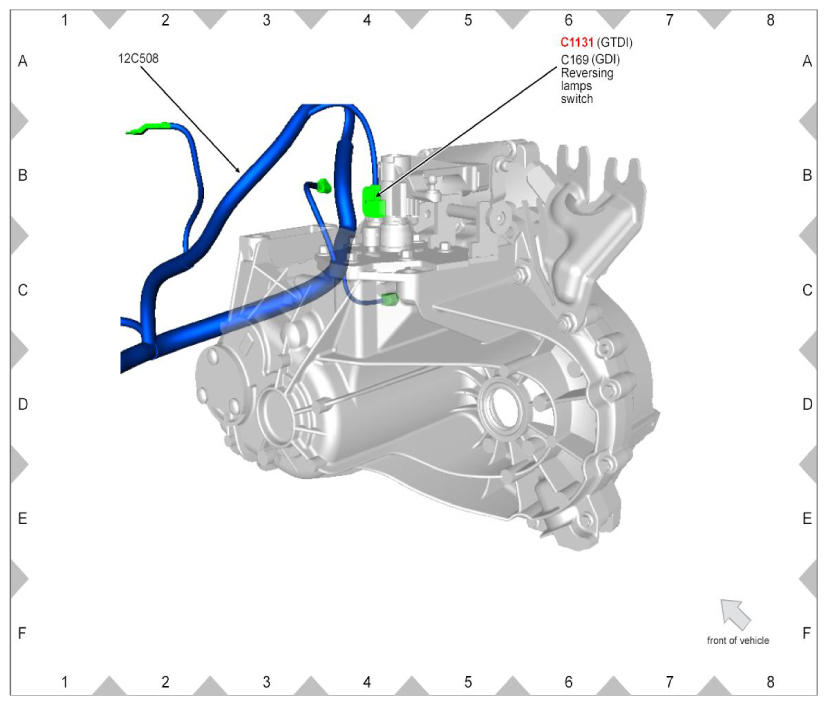

Fig 38: Identifying Reversing Lamps Switch Connector (C169)

Courtesy of FORD MOTOR CO.

Fig 39: Identifying Universal Heated Oxygen Sensor No. 11 Connector (C171)

Courtesy of FORD MOTOR CO.

Fig 40: Identifying Powertrain Control Module Connector (C175B)

Courtesy of FORD MOTOR CO.

Fig 41: Identifying Connector (C175E)

Courtesy of FORD MOTOR CO.

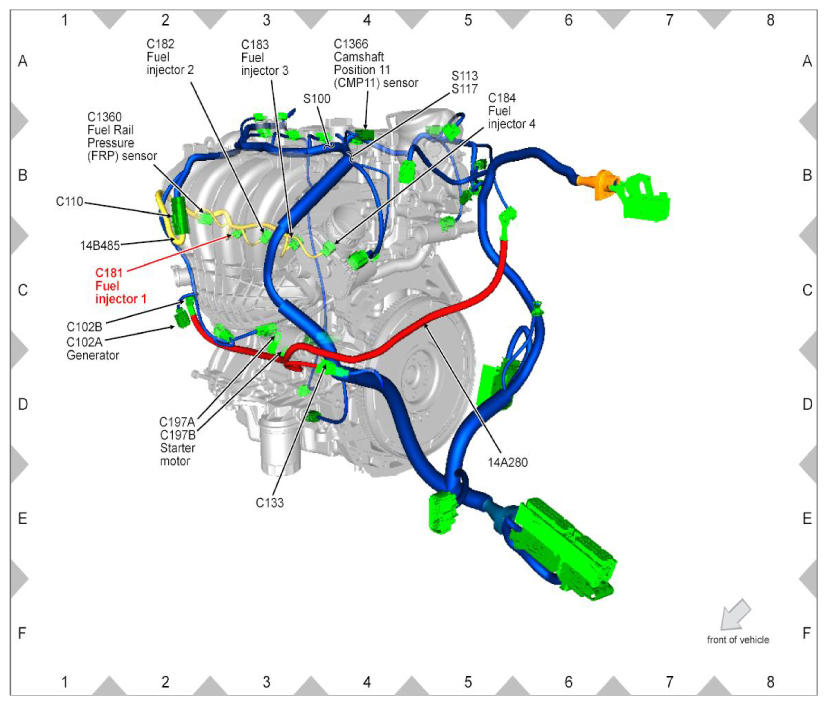

Fig 42: Identifying Fuel Injector 1 Connector (C181)

Courtesy of FORD MOTOR CO.

Fig 43: Identifying Fuel Injector 2 Connector (C182)

Courtesy of FORD MOTOR CO.

Fig 44: Identifying Fuel Injector 3 Connector (C183)

Courtesy of FORD MOTOR CO.

Fig 45: Identifying Fuel Injector 4 Connector (C184)

Courtesy of FORD MOTOR CO.

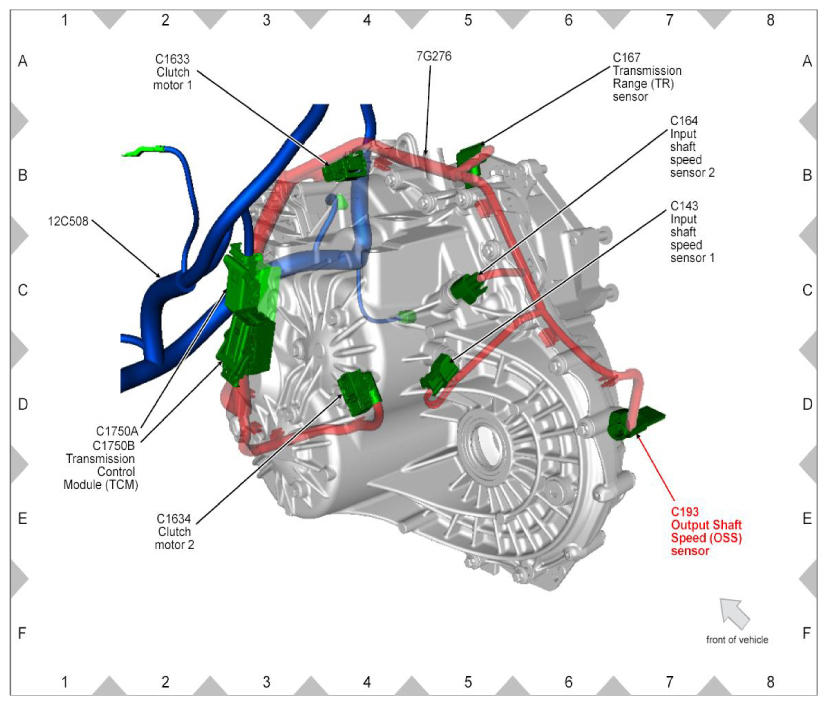

Fig 46: Identifying Output Shaft Speed Sensor Connector (C193)

Courtesy of FORD MOTOR CO.

Fig 47: Identifying Connector (C197A)

Courtesy of FORD MOTOR CO.

Fig 48: Identifying Connector (C197A) (GTDI)

Courtesy of FORD MOTOR CO.

Fig 49: Identifying Starter Motor Connector (C197B)

Courtesy of FORD MOTOR CO.

Fig 50: Identifying Starter Motor Connector (C197B) (GTDI)

Courtesy of FORD MOTOR CO.

Fig 51: Identifying Headlamp Switch Connector (C205)

Courtesy of FORD MOTOR CO.

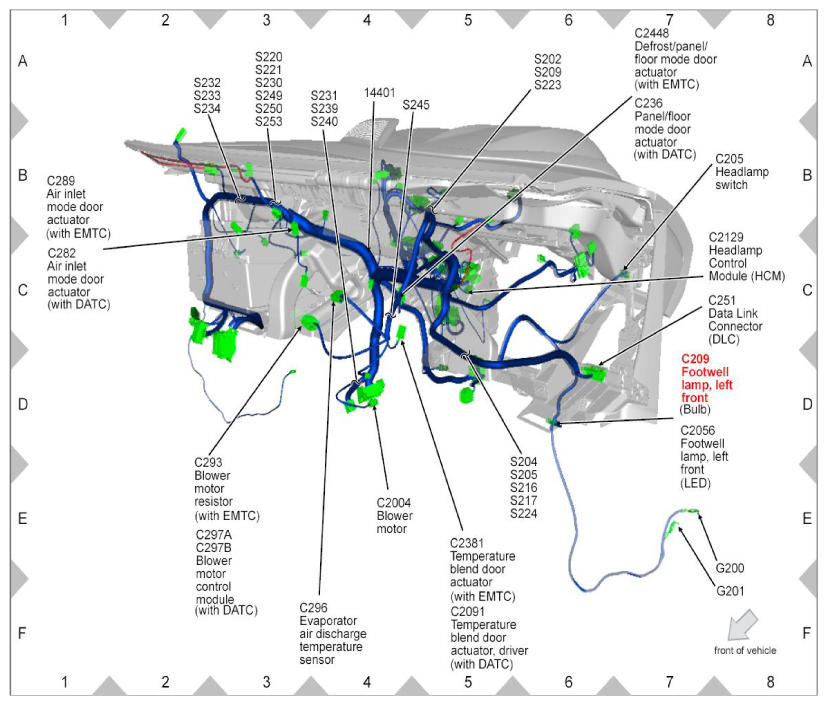

Fig 52: Identifying Footwell Lamp, Left Front Connector (C209)

Courtesy of FORD MOTOR CO.

Fig 53: Identifying Connector (C210)

Courtesy of FORD MOTOR CO.

Fig 54: Identifying Connector (C211)

Courtesy of FORD MOTOR CO.

Fig 55: Identifying Connector (C213)

Courtesy of FORD MOTOR CO.

Fig 56: Identifying Connector (C214)

Courtesy of FORD MOTOR CO.

Fig 57: Identifying Connector (C215)

Courtesy of FORD MOTOR CO.

Fig 58: Identifying Driver Air Bag Module Connector (C216A)

Courtesy of FORD MOTOR CO.

Fig 59: Identifying Driver Air Bag Module Connector (C216B)

Courtesy of FORD MOTOR CO.

Fig 60: Identifying Connector (C217A)

Courtesy of FORD MOTOR CO.

Fig 61: Identifying Horn Switch Connector (C217B)

Courtesy of FORD MOTOR CO.

Fig 62: Identifying Clockspring Connector (C218A)

Courtesy of FORD MOTOR CO.

Fig 63: Identifying Clockspring Connector (C218B)

Courtesy of FORD MOTOR CO.

Fig 64: Identifying Connector (C226B And C218C)

Courtesy of FORD MOTOR CO.

Fig 65: Identifying Connector (C226C And C218D)

Courtesy of FORD MOTOR CO.

Fig 66: Identifying Connector (C219)

Courtesy of FORD MOTOR CO.

Fig 67: Identifying Instrument Panel Cluster Connector (C220)

Courtesy of FORD MOTOR CO.

Fig 68: Identifying Steering Angle Sensor Module Connector (C226A)

Courtesy of FORD MOTOR CO.

Fig 69: Identifying Connector (C226B And C218C)

Courtesy of FORD MOTOR CO.

Fig 70: Identifying Connector (C226C And C218D)

Courtesy of FORD MOTOR CO.

Fig 71: Identifying HVAC Module, DATC Connector (C228A)

Courtesy of FORD MOTOR CO.

Fig 72: Identifying Connector (C228B)

Courtesy of FORD MOTOR CO.

Fig 73: Identifying Defrost Mode Door Actuator Connector (C232)

Courtesy of FORD MOTOR CO.

Fig 74: Identifying Panel/Floor Mode Door Actuator Connector (C236)

Courtesy of FORD MOTOR CO.

Fig 75: Identifying Connector (C237)

Courtesy of FORD MOTOR CO.

Fig 76: Identifying Connector (C238)

Courtesy of FORD MOTOR CO.

Fig 77: Identifying Audio Control Module Connector (C240A)

Courtesy of FORD MOTOR CO.

Fig 78: Identifying Audio Control Module Connector (C240B)

Courtesy of FORD MOTOR CO.

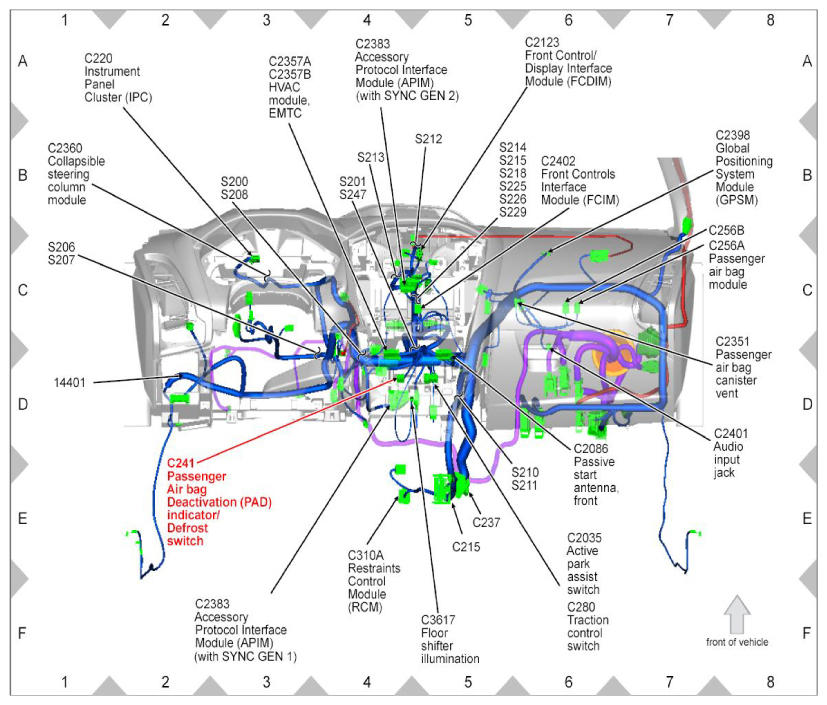

Fig 79: Identifying Passenger Air Bag Deactivation Indicator/Defrost Switch Connector (C241)

Courtesy of FORD MOTOR CO.

Fig 80: Identifying Connector (C248)

Courtesy of FORD MOTOR CO.

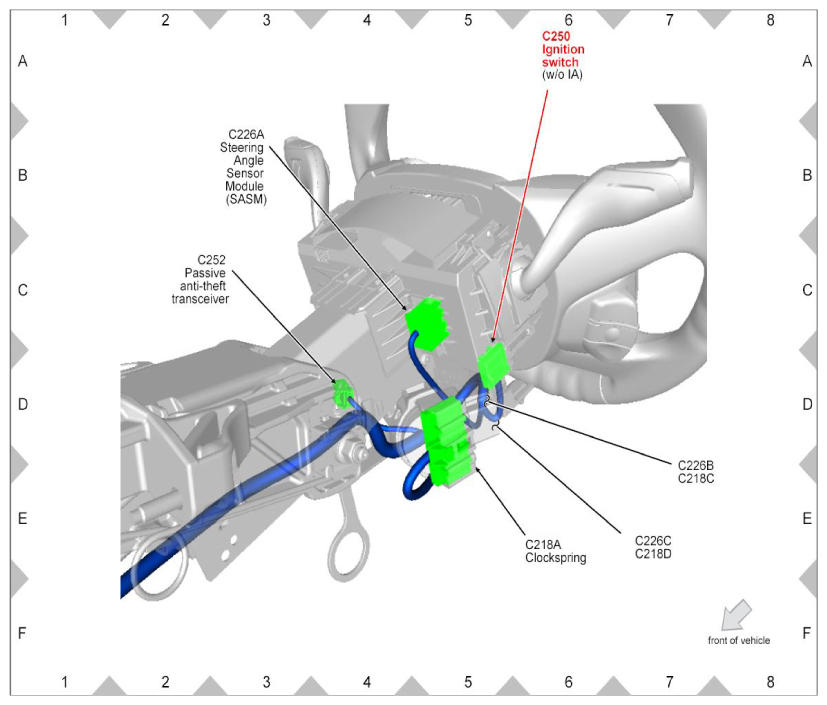

Fig 81: Identifying Ignition Switch Connector (C250)

Courtesy of FORD MOTOR CO.

Fig 82: Identifying Data Link Connector (C251)

Courtesy of FORD MOTOR CO.

Fig 83: Identifying Passive Anti-Theft Transceiver Connector (C252)

Courtesy of FORD MOTOR CO.

Fig 84: Identifying Passenger Air Bag Module Connector (C256A)

Courtesy of FORD MOTOR CO.

Fig 85: Identifying Connector (C256B)

Courtesy of FORD MOTOR CO.

Fig 86: Identifying Clutch Pedal Position Switch Connector (C257)

Courtesy of FORD MOTOR CO.

Fig 87: Identifying Connector (C260)

Courtesy of FORD MOTOR CO.

Fig 88: Identifying Footwell Lamp, Right Front Connector (C266)

Courtesy of FORD MOTOR CO.

Fig 89: Identifying Clutch Pedal Cruise Control Deactivator Switch Connector (C277)

Courtesy of FORD MOTOR CO.

Fig 90: Identifying Brake Pedal Position Switch Connector (C278)

Courtesy of FORD MOTOR CO.

Fig 91: Identifying Traction Control Switch Connector (C280)

Courtesy of FORD MOTOR CO.

Fig 92: Identifying Air Inlet Mode Door Actuator Connector (C282)

Courtesy of FORD MOTOR CO.

Fig 93: Identifying Autolamp/Sunload Sensor Connector (C286)

Courtesy of FORD MOTOR CO.

Fig 94: Identifying Air Inlet Mode Door Actuator Connector (C289)

Courtesy of FORD MOTOR CO.

Fig 95: Identifying Blower Motor Resistor Connector (C293)

Courtesy of FORD MOTOR CO.

Fig 96: Identifying Evaporator Air Discharge Temperature Sensor Connector (C296)

Courtesy of FORD MOTOR CO.

Fig 97: Identifying C297B Blower Motor Control Module Connector (C297A)

Courtesy of FORD MOTOR CO.

Fig 98: Identifying Blower Motor Control Module Connector (C297A And C297B)

Courtesy of FORD MOTOR CO.

Fig 99: Identifying Connector (C300B)

Courtesy of FORD MOTOR CO.

Fig 100: Identifying Connector (C300C)

Courtesy of FORD MOTOR CO.

Fig 101: Identifying Connector (C300D)

Courtesy of FORD MOTOR CO.

Fig 102: Identifying Connector (C300G)

Courtesy of FORD MOTOR CO.

Fig 103: Identifying Connector (C300H)

Courtesy of FORD MOTOR CO.

Fig 104: Identifying Connector (C300J)

Courtesy of FORD MOTOR CO.

Fig 105: Identifying Safety Belt Retractor Pretensioner, Passenger Connector (C303)

Courtesy of FORD MOTOR CO.

Fig 106: Identifying Restraints Control Module Connector (C310A)

Courtesy of FORD MOTOR CO.

Fig 107: Identifying Restraints Control Module Connector (C310B)

Courtesy of FORD MOTOR CO.

Fig 108: Identifying Connector (C313)

Courtesy of FORD MOTOR CO.

Fig 109: Identifying Connector (C314)

Courtesy of FORD MOTOR CO.

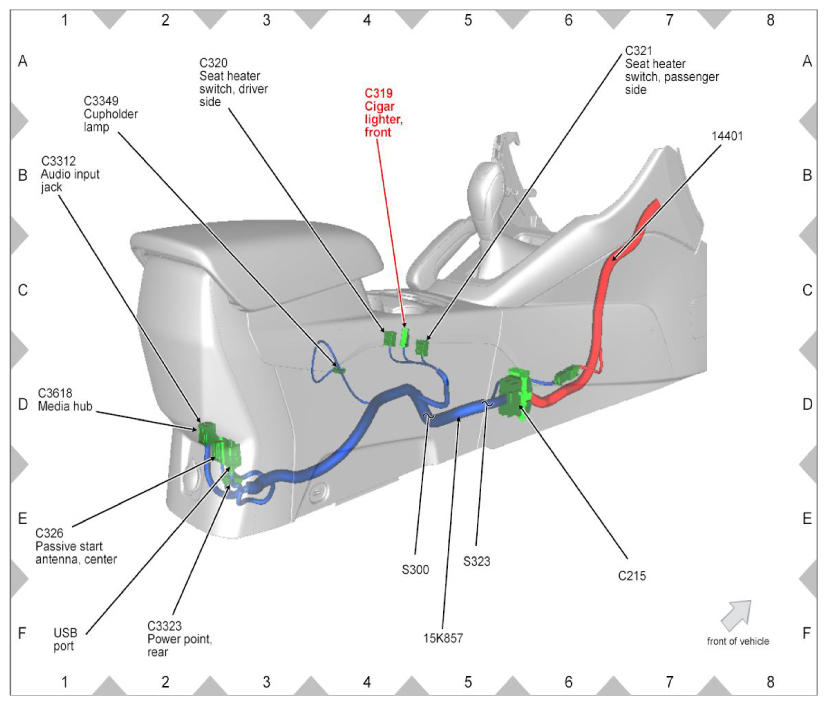

Fig 110: Identifying Cigar Lighter, Front Connector (C319)

Courtesy of FORD MOTOR CO.

Fig 111: Identifying Seat Heater Switch, Driver Side Connector (C320)

Courtesy of FORD MOTOR CO.

Fig 112: Identifying Seat Heater Switch, Passenger Side Connector (C321)

Courtesy of FORD MOTOR CO.

Fig 113: Identifying Safety Belt Retractor Pretensioner, Driver Connector (C323)

Courtesy of FORD MOTOR CO.

Fig 114: Identifying Passive Start Antenna, Center Connector (C326)

Courtesy of FORD MOTOR CO.

Fig 115: Identifying Heated Seat Module, Passenger Side Front Connector (C329)

Courtesy of FORD MOTOR CO.

Fig 116: Identifying Connector (C339)

Courtesy of FORD MOTOR CO.

Fig 117: Identifying Connector (C340)

Courtesy of FORD MOTOR CO.

Fig 118: Identifying Connector (C352A)

Courtesy of FORD MOTOR CO.

Fig 119: Identifying Connector (C352B)

Courtesy of FORD MOTOR CO.

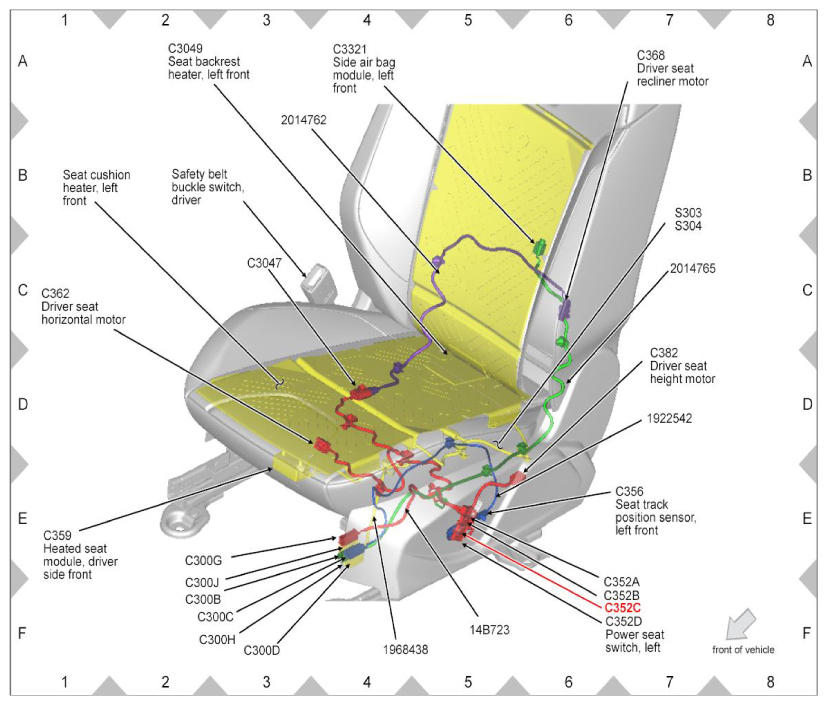

Fig 120: Identifying Connector (C352C)

Courtesy of FORD MOTOR CO.

Fig 121: Identifying Power Seat Switch, Left Connector (C352D)

Courtesy of FORD MOTOR CO.

Fig 122: Identifying Seat Track Position Sensor, Left Front Connector (C356)

Courtesy of FORD MOTOR CO.

Fig 123: Identifying Heated Seat Module, Driver Side Front Connector (C359)

Courtesy of FORD MOTOR CO.

Fig 124: Identifying Driver Seat Horizontal Motor Connector (C362)

Courtesy of FORD MOTOR CO.

Fig 125: Identifying Driver Seat Recliner Motor Connector (C368)

Courtesy of FORD MOTOR CO.

Fig 126: Identifying EVAP Canister Vent Valve Connector (C377) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 127: Identifying EVAP Canister Vent Valve Connector (C377) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 128: Identifying Driver Seat Height Motor Connector (C382)

Courtesy of FORD MOTOR CO.

Fig 129: Identifying Safety Belt Load Limiting Retractor, Passenger Connector (C389)

Courtesy of FORD MOTOR CO.

Fig 130: Identifying Rear Window Defrost Grid Connector (C402A) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 131: Identifying Rear Window Defrost Grid Connector (C402A) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 132: Identifying Rear Window Defrost Grid Connector (C402B) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 133: Identifying Rear Window Defrost Grid Connector (C402B) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 134: Identifying Connector (C405) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 135: Identifying Connector (C405) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 136: Identifying Connector (C406) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 137: Identifying Connector (C406) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 138: Identifying Connector (C410)

Courtesy of FORD MOTOR CO.

Fig 139: Identifying Connector (C411)

Courtesy of FORD MOTOR CO.

Fig 140: Identifying Park/Stop/Turn Lamp, Left Rear Connector (C412)

Courtesy of FORD MOTOR CO.

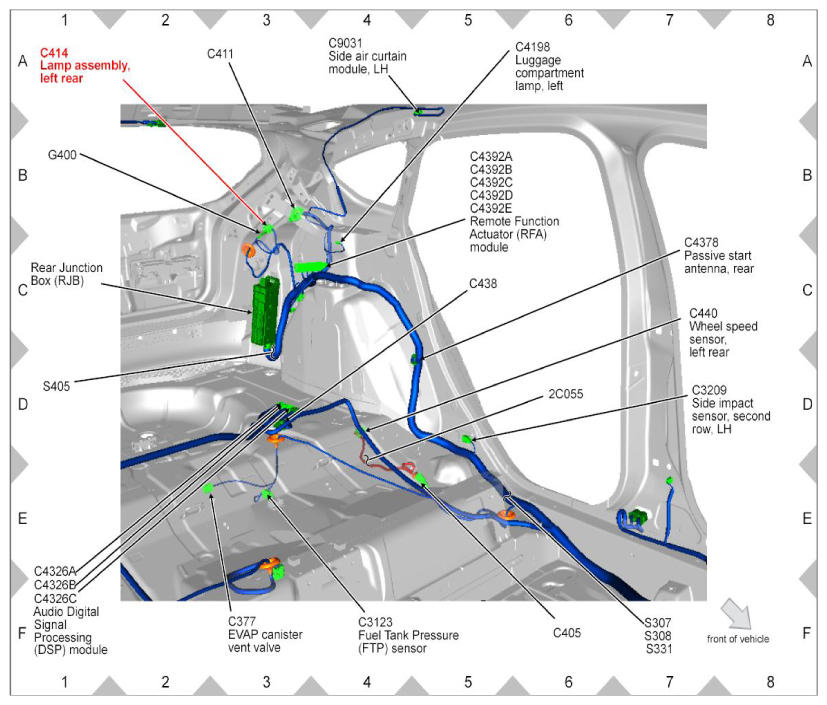

Fig 141: Identifying Lamp Assembly, Left Rear Connector (C414)

Courtesy of FORD MOTOR CO.

Fig 142: Identifying Park/Stop/Turn Lamp, Right Rear Connector (C415)

Courtesy of FORD MOTOR CO.

Fig 143: Identifying Lamp Assembly, Right Rear Connector (C417)

Courtesy of FORD MOTOR CO.

Fig 144: Identifying Wheel Speed Sensor, Right Rear Connector (C426) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 145: Identifying Wheel Speed Sensor, Right Rear Connector (C426) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 146: Identifying Luggage Compartment Lamp Connector (C428)

Courtesy of FORD MOTOR CO.

Fig 147: Identifying Connector (C431) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 148: Identifying Connector (C431) (4 Door)

Courtesy of FORD MOTOR CO.

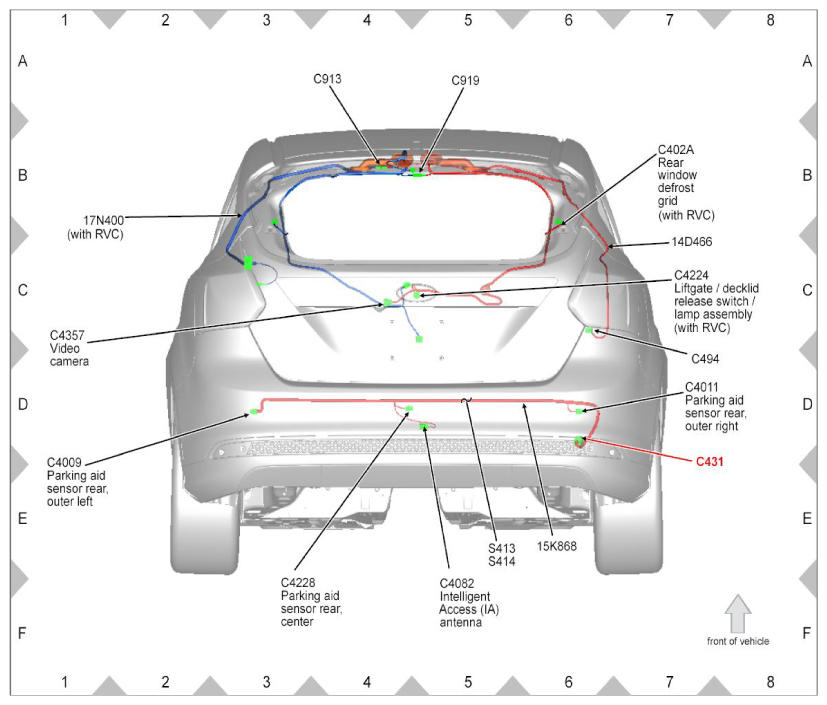

Fig 149: Identifying Connector (C431) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 150: Identifying Connector (C431) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 151: Identifying Connector (C438) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 152: Identifying Connector (C438) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 153: Identifying Wheel Speed Sensor, Left Rear Connector (C440) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 154: Identifying Wheel Speed Sensor, Left Rear Connector (C440) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 155: Identifying Reversing Lamp, Left Connector (C451)

Courtesy of FORD MOTOR CO.

Fig 156: Identifying Reversing Lamp, Left Connector (C461)

Courtesy of FORD MOTOR CO.

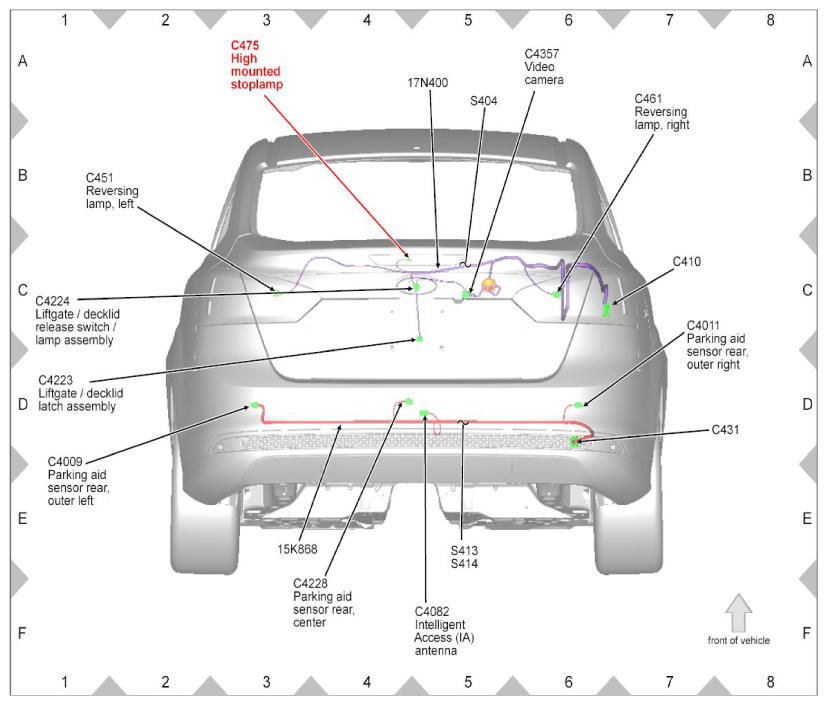

Fig 157: Identifying High Mounted Stoplamp Connector (C475)

Courtesy of FORD MOTOR CO.

Fig 158: Identifying Connector (C494)

Courtesy of FORD MOTOR CO.

Fig 159: Identifying Connector (C501A)

Courtesy of FORD MOTOR CO.

Fig 160: Identifying Driver Door Module Connector (C501B)

Courtesy of FORD MOTOR CO.

Fig 161: Identifying Connector (C504A)

Courtesy of FORD MOTOR CO.

Fig 162: Identifying Master Window Control Switch Connector (C504B)

Courtesy of FORD MOTOR CO.

Fig 163: Identifying Connector (C504C)

Courtesy of FORD MOTOR CO.

Fig 164: Identifying Connector (C510)

Courtesy of FORD MOTOR CO.

Fig 165: Identifying Connector (C511)

Courtesy of FORD MOTOR CO.

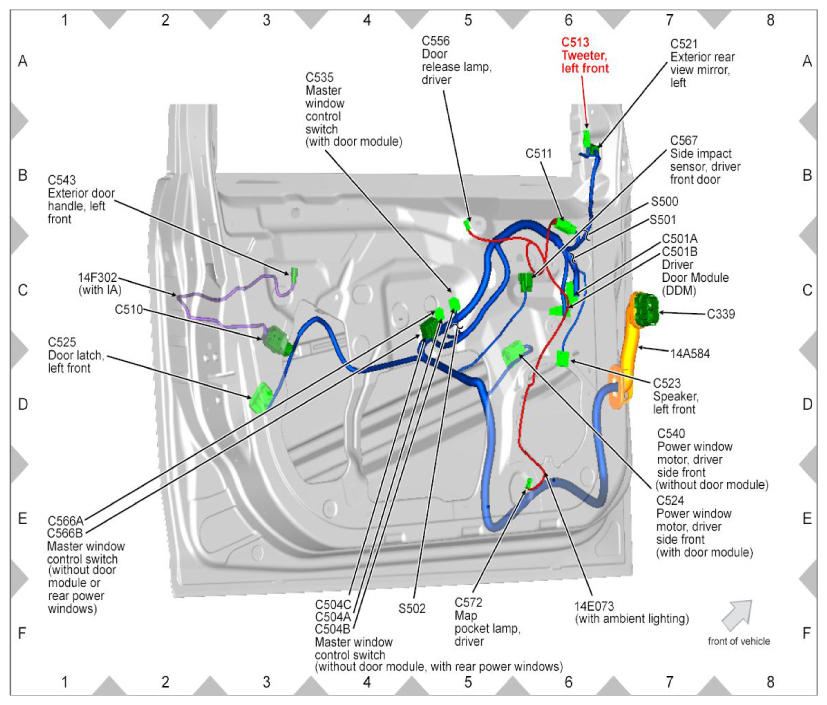

Fig 166: Identifying Tweeter, Left Front Connector (C513)

Courtesy of FORD MOTOR CO.

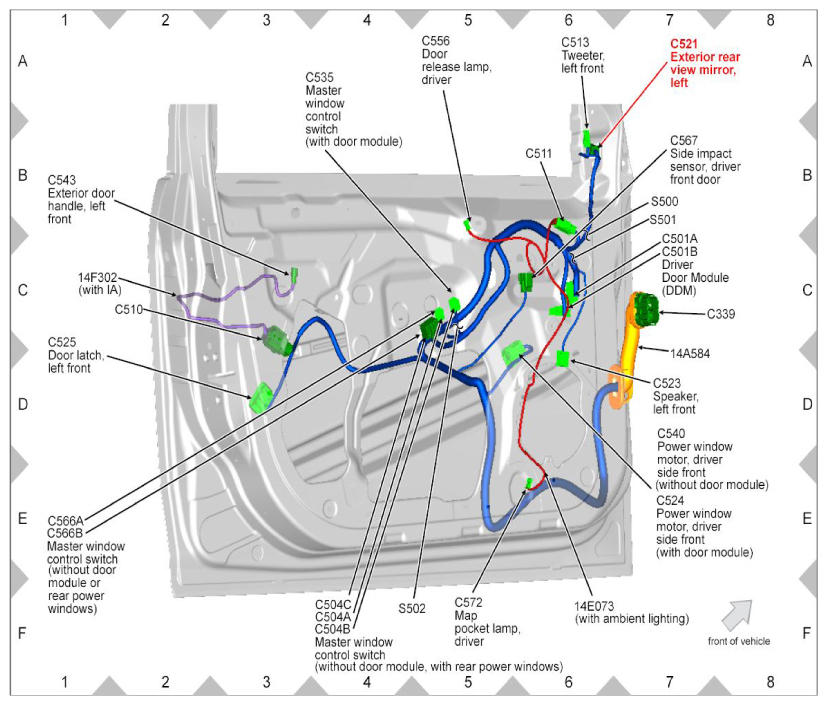

Fig 167: Identifying Exterior Rear View Mirror, Left Connector (C521)

Courtesy of FORD MOTOR CO.

Fig 168: Identifying Speaker, Left Front Connector (C523)

Courtesy of FORD MOTOR CO.

Fig 169: Identifying Power Window Motor, Driver Side Front Connector (C524)

Courtesy of FORD MOTOR CO.

Fig 170: Identifying Door Latch, Left Front Connector (C525)

Courtesy of FORD MOTOR CO.

Fig 171: Identifying Master Window Control Switch Connector (C535)

Courtesy of FORD MOTOR CO.

Fig 172: Identifying Power Window Motor, Driver Side Front Connector (C540)

Courtesy of FORD MOTOR CO.

Fig 173: Identifying Exterior Door Handle, Left Front Connector (C543)

Courtesy of FORD MOTOR CO.

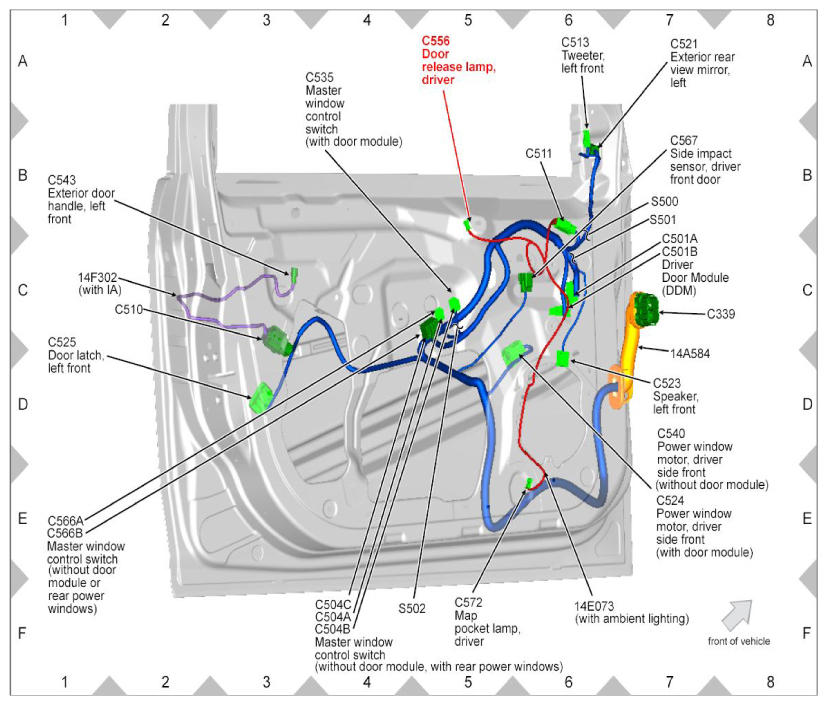

Fig 174: Identifying Door Release Lamp, Driver Connector (C556)

Courtesy of FORD MOTOR CO.

Fig 175: Identifying Connector (C566A)

Courtesy of FORD MOTOR CO.

Fig 176: Identifying Master Window Control Switch Connector (C566B)

Courtesy of FORD MOTOR CO.

Fig 177: Identifying Side Impact Sensor, Driver Front Door Connector (C567)

Courtesy of FORD MOTOR CO.

Fig 178: Identifying Map Pocket Lamp, Driver Connector (C572)

Courtesy of FORD MOTOR CO.

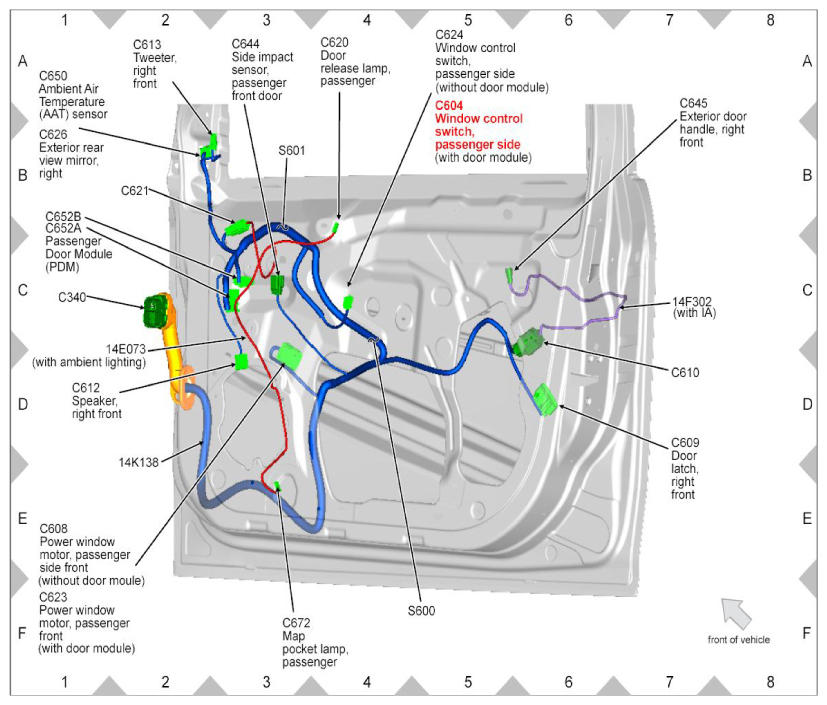

Fig 179: Identifying Window Control Switch, Passenger Side Connector (C604)

Courtesy of FORD MOTOR CO.

Fig 180: Identifying Power Window Motor, Passenger Side Front Connector (C608)

Courtesy of FORD MOTOR CO.

Fig 181: Identifying Door Latch, Right Front Connector (C609)

Courtesy of FORD MOTOR CO.

Fig 182: Identifying Connector (C610)

Courtesy of FORD MOTOR CO.

Fig 183: Identifying Speaker, Right Front Connector (C612)

Courtesy of FORD MOTOR CO.

Fig 184: Identifying Tweeter, Right Front Connector (C613)

Courtesy of FORD MOTOR CO.

Fig 185: Identifying Door Release Lamp, Passenger Connector (C620)

Courtesy of FORD MOTOR CO.

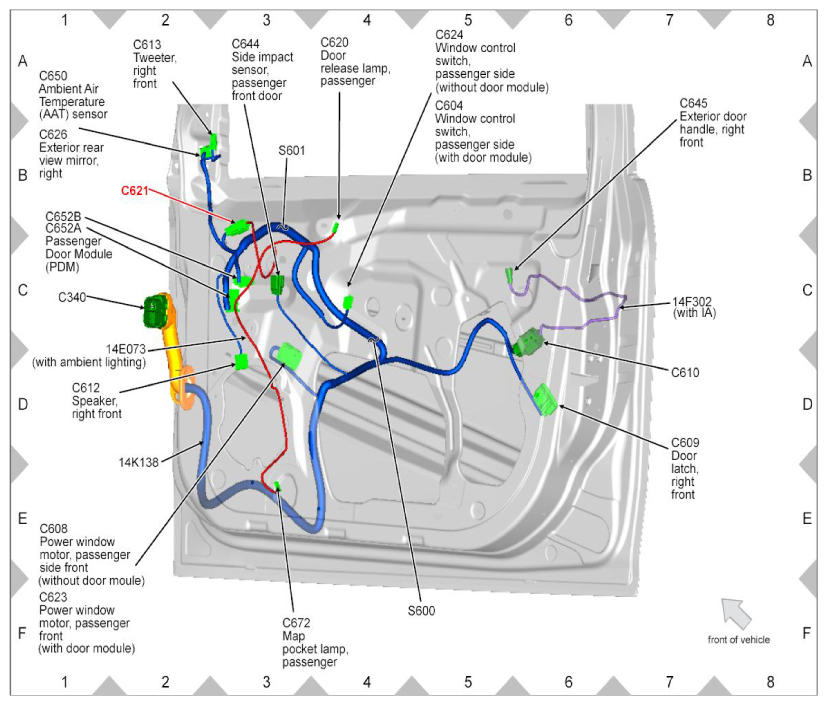

Fig 186: Identifying Connector (C621)

Courtesy of FORD MOTOR CO.

Fig 187: Identifying Power Window Motor, Passenger Front Connector (C623)

Courtesy of FORD MOTOR CO.

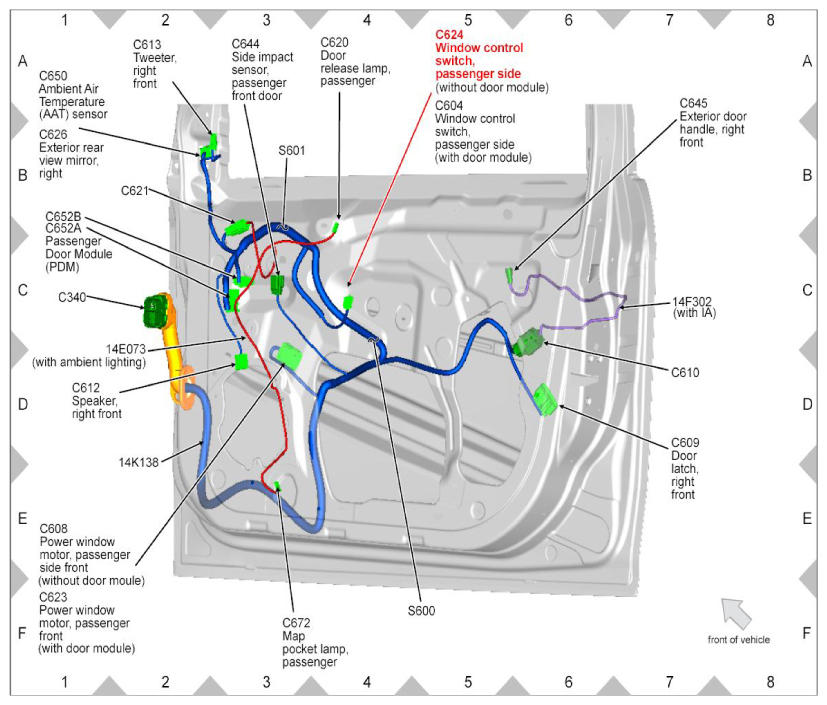

Fig 188: Identifying Window Control Switch, Passenger Side Connector (C624)

Courtesy of FORD MOTOR CO.

Fig 189: Identifying Exterior Rear View Mirror, Right Connector (C626)

Courtesy of FORD MOTOR CO.

Fig 190: Identifying Side Impact Sensor, Passenger Front Door Connector (C644)

Courtesy of FORD MOTOR CO.

Fig 191: Identifying Exterior Door Handle, Right Front Connector (C645)

Courtesy of FORD MOTOR CO.

Fig 192: Identifying Ambient Air Temperature Sensor Connector (C650)

Courtesy of FORD MOTOR CO.

Fig 193: Identifying Passenger Door Module Connector (C652A)

Courtesy of FORD MOTOR CO.

Fig 194: Identifying Connector (C652B)

Courtesy of FORD MOTOR CO.

Fig 195: Identifying Map Pocket Lamp, Passenger Connector (C672)

Courtesy of FORD MOTOR CO.

Fig 196: Identifying Connector (C700)

Courtesy of FORD MOTOR CO.

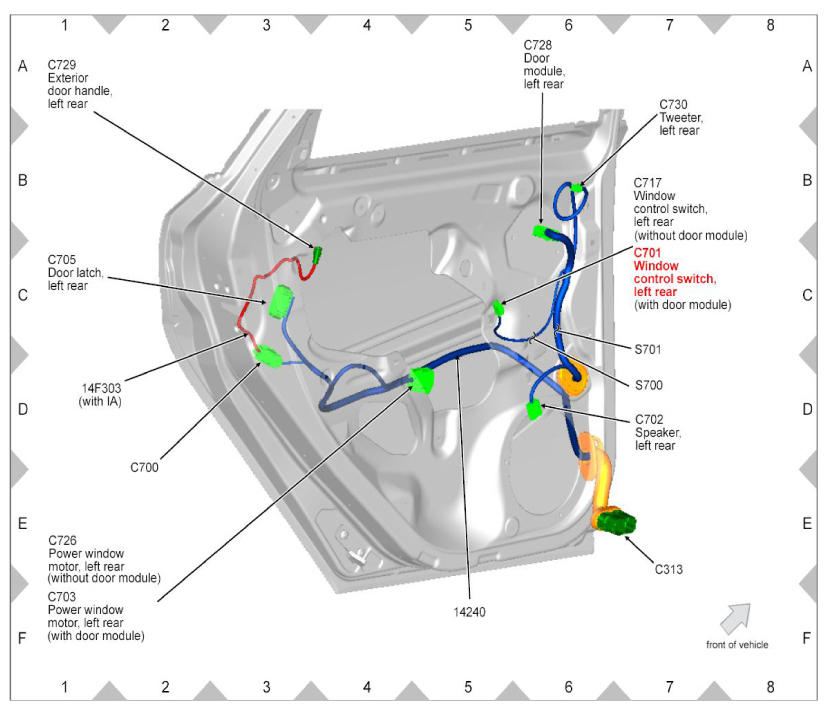

Fig 197: Identifying Window Control Switch, Left Rear Connector (C701)

Courtesy of FORD MOTOR CO.

Fig 198: Identifying Speaker, Left Rear Connector (C702)

Courtesy of FORD MOTOR CO.

Fig 199: Identifying Power Window Motor, Left Rear Connector (C703)

Courtesy of FORD MOTOR CO.

Fig 200: Identifying Door Latch Left Rear Connector (C705)

Courtesy of FORD MOTOR CO.

Fig 201: Identifying Window Control Switch, Left Rear Connector (C717)

Courtesy of FORD MOTOR CO.

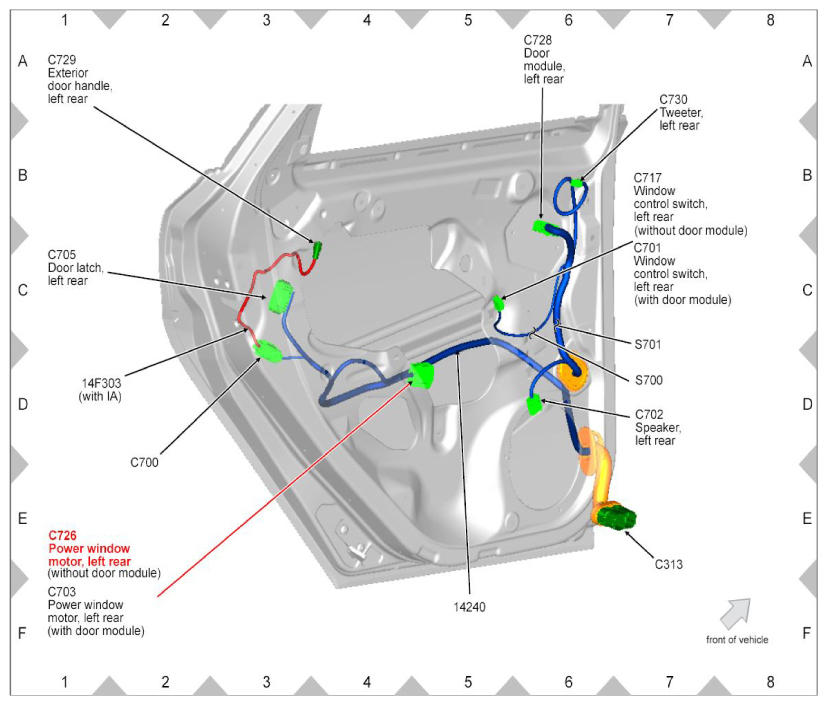

Fig 202: Identifying Power Window Motor, Left Rear Connector (C726)

Courtesy of FORD MOTOR CO.

Fig 203: Identifying Door Module, Left Rear Connector (C728)

Courtesy of FORD MOTOR CO.

Fig 204: Identifying Exterior Door Handle, Left Rear Connector (C729)

Courtesy of FORD MOTOR CO.

Fig 205: Identifying Tweeter, Left Rear Connector (C730)

Courtesy of FORD MOTOR CO.

Fig 206: Identifying Connector (C800)

Courtesy of FORD MOTOR CO.

Fig 207: Identifying Window Control Switch, Right Rear Connector (C801)

Courtesy of FORD MOTOR CO.

Fig 208: Identifying Speaker, Right Rear Connector (C802)

Courtesy of FORD MOTOR CO.

Fig 209: Identifying Power Window Motor, Right Rear Connector (C803)

Courtesy of FORD MOTOR CO.

Fig 210: Identifying Door Latch, Right Rear Connector (C805)

Courtesy of FORD MOTOR CO.

Fig 211: Identifying Window Control Switch, Right Rear Connector (C819)

Courtesy of FORD MOTOR CO.

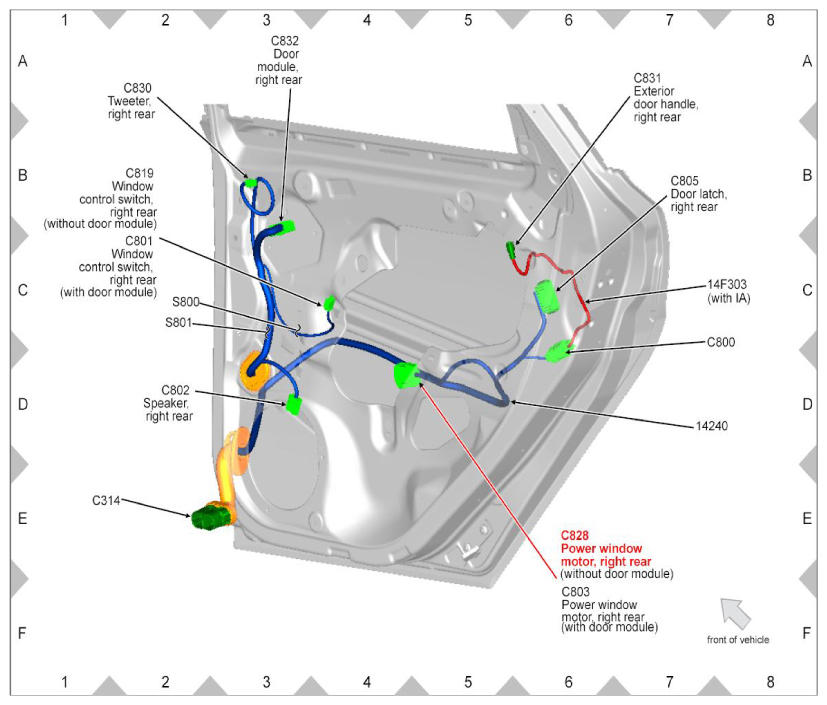

Fig 212: Identifying Power Window Motor, Right Rear Connector (C828)

Courtesy of FORD MOTOR CO.

Fig 213: Identifying Tweeter, Right Rear Connector (C830)

Courtesy of FORD MOTOR CO.

Fig 214: Identifying Exterior Door Handle, Right Rear Connector (C831)

Courtesy of FORD MOTOR CO.

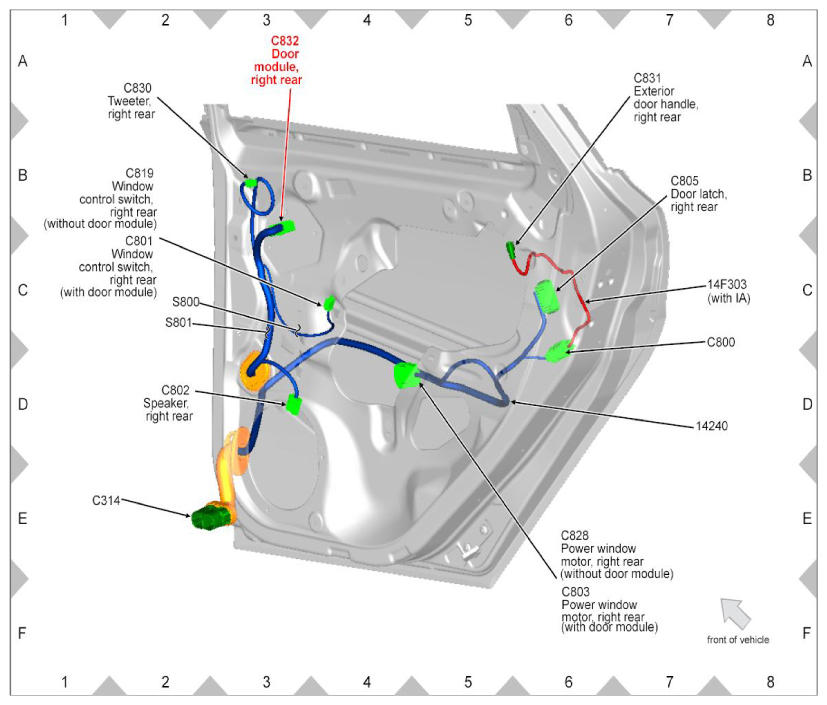

Fig 215: Identifying Door Module, Right Rear Connector (C832)

Courtesy of FORD MOTOR CO.

Fig 216: Identifying Dome Lamp, Rear Connector (C901)

Courtesy of FORD MOTOR CO.

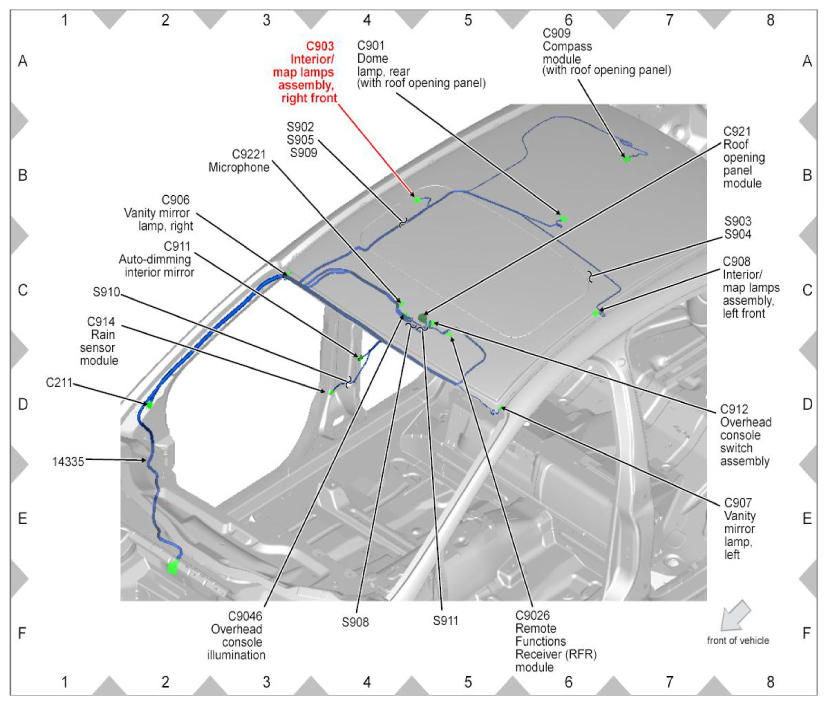

Fig 217: Identifying Interior/Map Lamps Assembly, Right Front Connector (C903)

Courtesy of FORD MOTOR CO.

Fig 218: Identifying High Mounted Stoplamp Connector (C904)

Courtesy of FORD MOTOR CO.

Fig 219: Identifying Vanity Mirror Lamp, Right Connector (C906)

Courtesy of FORD MOTOR CO.

Fig 220: Identifying Vanity Mirror Lamp, Left Connector (C907)

Courtesy of FORD MOTOR CO.

Fig 221: Identifying Interior/Map Lamps Assembly, Left Front Connector (C908)

Courtesy of FORD MOTOR CO.

Fig 222: Identifying Compass Module Connector (C909)

Courtesy of FORD MOTOR CO.

Fig 223: Identifying Auto-Dimming Interior Mirror Connector (C911)

Courtesy of FORD MOTOR CO.

Fig 224: Identifying Overhead Console Switch Assembly Connector (C912)

Courtesy of FORD MOTOR CO.

Fig 225: Identifying Connector (C913)

Courtesy of FORD MOTOR CO.

Fig 226: Identifying Rain Sensor Module Connector (C914)

Courtesy of FORD MOTOR CO.

Fig 227: Identifying Connector (C919)

Courtesy of FORD MOTOR CO.

Fig 228: Identifying Roof Opening Panel Module Connector (C921)

Courtesy of FORD MOTOR CO.

Fig 229: Identifying Dome Lamp, Rear Connector (C926)

Courtesy of FORD MOTOR CO.

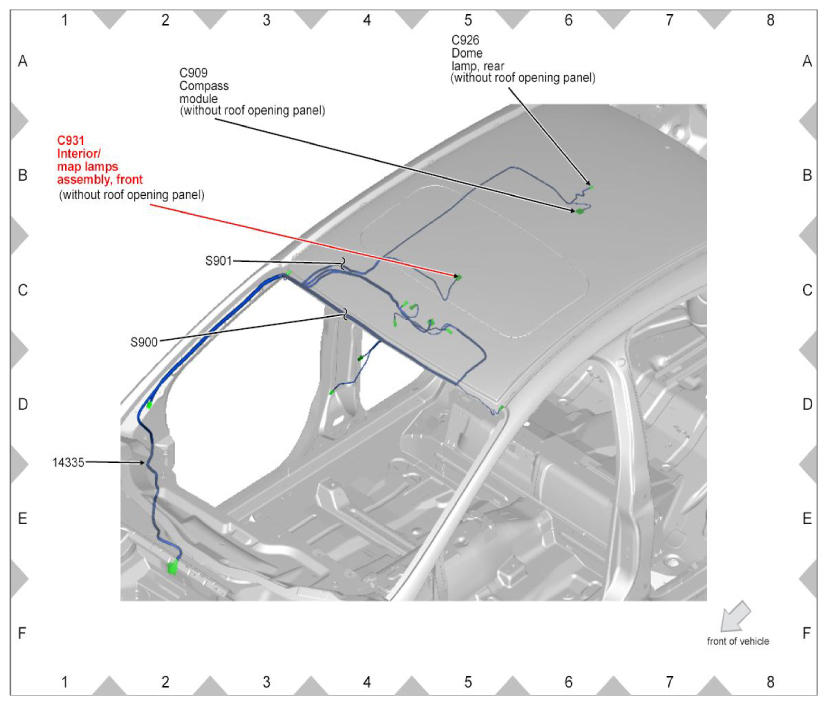

Fig 230: Identifying Interior/Map Lamps Assembly, Front Connector (C931)

Courtesy of FORD MOTOR CO.

Fig 231: Identifying Headlamp Assembly, Left Connector (C1021)

Courtesy of FORD MOTOR CO.

Fig 232: Identifying Connector (C1035A)

Courtesy of FORD MOTOR CO.

Fig 233: Identifying Battery Junction Box (BJB) Connector (C1035B)

Courtesy of FORD MOTOR CO.

Fig 234: Identifying Connector (C1035C)

Courtesy of FORD MOTOR CO.

Fig 235: Identifying Headlamp Assembly, Right Connector (C1041)

Courtesy of FORD MOTOR CO.

Fig 236: Identifying Engine Cooling Fan Module Connector (C1046)

Courtesy of FORD MOTOR CO.

Fig 237: Identifying Engine Coolant Temperature Sensor Connector (C1064)

Courtesy of FORD MOTOR CO.

Fig 238: Identifying Engine Coolant Temperature Sensor Connector (C1064) (GTDI)

Courtesy of FORD MOTOR CO.

Fig 239: Identifying Fuel Rail Pressure Sensor Connector (C1073)

Courtesy of FORD MOTOR CO.

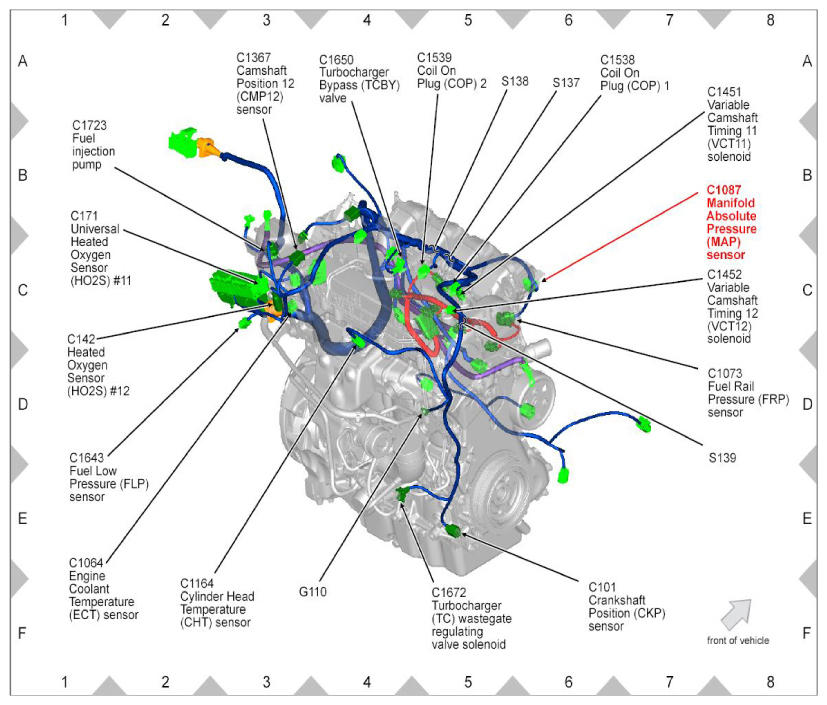

Fig 240: Identifying Manifold Absolute Pressure Sensor Connector (C1087)

Courtesy of FORD MOTOR CO.

Fig 241: Identifying Battery Connector (C1100A)

Courtesy of FORD MOTOR CO.

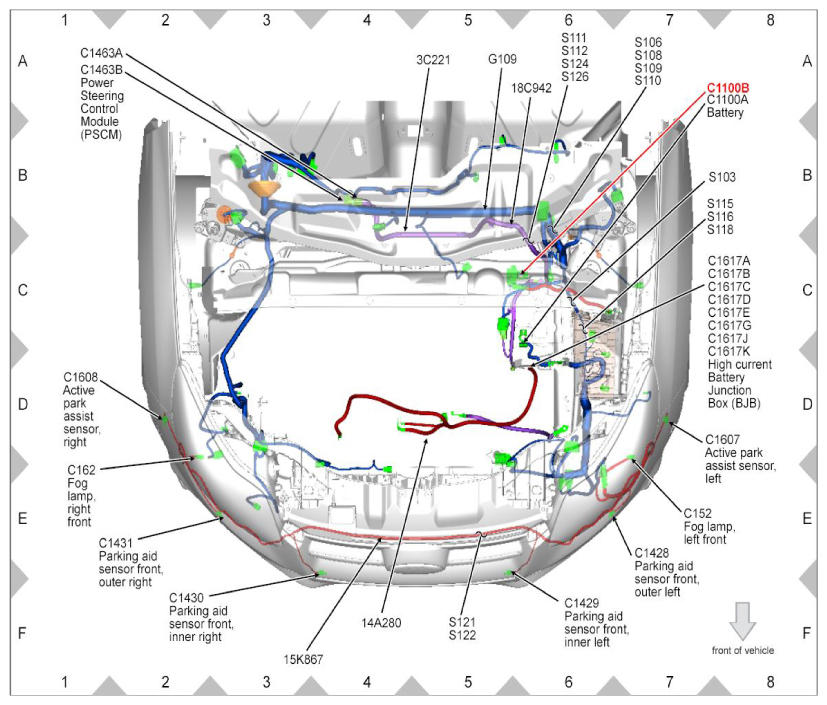

Fig 242: Identifying Connector (C1100B)

Courtesy of FORD MOTOR CO.

Fig 243: Identifying Generator Connector (C1104A)

Courtesy of FORD MOTOR CO.

Fig 244: Identifying Generator Connector (C1104B)

Courtesy of FORD MOTOR CO.

Fig 245: Identifying Connector (C1131)

Courtesy of FORD MOTOR CO.

Fig 246: Identifying Cylinder Head Temperature Sensor Connector (C1164)

Courtesy of FORD MOTOR CO.

Fig 247: Identifying Fuel Injector 1 Connector (C1181)

Courtesy of FORD MOTOR CO.

Fig 248: Identifying Fuel Injector 2 Connector (C1182)

Courtesy of FORD MOTOR CO.

Fig 249: Identifying Fuel Injector 3 Connector (C1183)

Courtesy of FORD MOTOR CO.

Fig 250: Identifying Fuel Injector 4 Connector (C1184)

Courtesy of FORD MOTOR CO.

Fig 251: Identifying Intake Air Temperature Sensor Connector (C1226)

Courtesy of FORD MOTOR CO.

Fig 252: Identifying A/C Pressure Transducer Connector (C1260)

Courtesy of FORD MOTOR CO.

Fig 253: Identifying Fuel Rail Pressure Sensor Connector (C1360)

Courtesy of FORD MOTOR CO.

Fig 254: Identifying Camshaft Position 11 Sensor Connector (C1366)

Courtesy of FORD MOTOR CO.

Fig 255: Identifying Camshaft Position 11 Sensor Connector (C1366) (GTDI)

Courtesy of FORD MOTOR CO.

Fig 256: Identifying Camshaft Position 12 Sensor Connector (C1367)

Courtesy of FORD MOTOR CO.

Fig 257: Identifying Camshaft Position 12 Sensor Connector (C1367) (GTDI)

Courtesy of FORD MOTOR CO.

Fig 258: Identifying Powertrain Control Module Connector (C1381B)

Courtesy of FORD MOTOR CO.

Fig 259: Identifying Connector (C1381E)

Courtesy of FORD MOTOR CO.

Fig 260: Identifying Parking Aid Sensor Front, Outer Left Connector (C1428)

Courtesy of FORD MOTOR CO.

Fig 261: Identifying Parking Aid Sensor Front, Inner Left Connector (C1429)

Courtesy of FORD MOTOR CO.

Fig 262: Identifying Parking Aid Sensor Front, Inner Right Connector (C1430)

Courtesy of FORD MOTOR CO.

Fig 263: Identifying Parking Aid Sensor Front, Outer Right Connector (C1431)

Courtesy of FORD MOTOR CO.

Fig 264: Identifying Electronic Throttle Control Connector (C1449)

Courtesy of FORD MOTOR CO.

Fig 265: Identifying Electronic Throttle Control Connector (C1449) (GTDI)

Courtesy of FORD MOTOR CO.

Fig 266: Identifying Variable Camshaft Timing 11 Solenoid Connector (C1451)

Courtesy of FORD MOTOR CO.

Fig 267: Identifying Variable Camshaft Timing 11 Solenoid Connector (C1451) (GTDI)

Courtesy of FORD MOTOR CO.

Fig 268: Identifying Variable Camshaft Timing 12 Solenoid Connector (C1452)

Courtesy of FORD MOTOR CO.

Fig 269: Identifying Variable Camshaft Timing 12 Solenoid Connector (C1452) (GTDI)

Courtesy of FORD MOTOR CO.

Fig 270: Identifying Connector (C1463A)

Courtesy of FORD MOTOR CO.

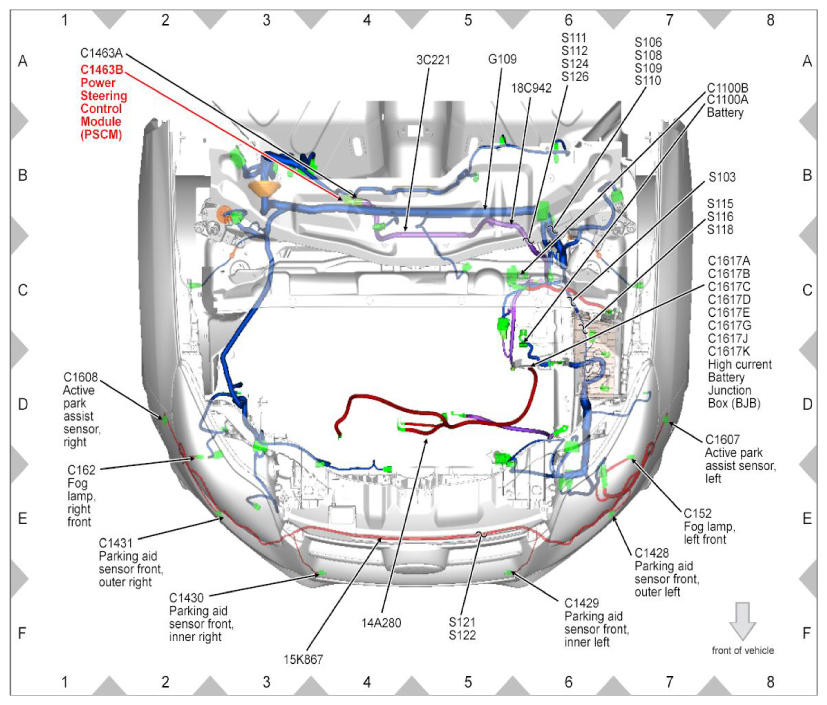

Fig 271: Identifying Power Steering Control Module Connector (C1463B)

Courtesy of FORD MOTOR CO.

Fig 272: Identifying Impact Severity Sensor, LH Front Connector (C1465)

Courtesy of FORD MOTOR CO.

Fig 273: Identifying Impact Severity Sensor, RH Front Connector (C1466)

Courtesy of FORD MOTOR CO.

Fig 274: Identifying Diode Connector (C1500)

Courtesy of FORD MOTOR CO.

Fig 275: Identifying Coil On Plug 1 Connector (C1538)

Courtesy of FORD MOTOR CO.

Fig 276: Identifying Coil On Plug 2 Connector (C1539)

Courtesy of FORD MOTOR CO.

Fig 277: Identifying Coil On Plug 3 Connector (C1540)

Courtesy of FORD MOTOR CO.

Fig 278: Identifying Coil On Plug 4 Connector (C1541)

Courtesy of FORD MOTOR CO.

Fig 279: Identifying Universal Heated Oxygen Sensor No. 11 Connector (C1571)

Courtesy of FORD MOTOR CO.

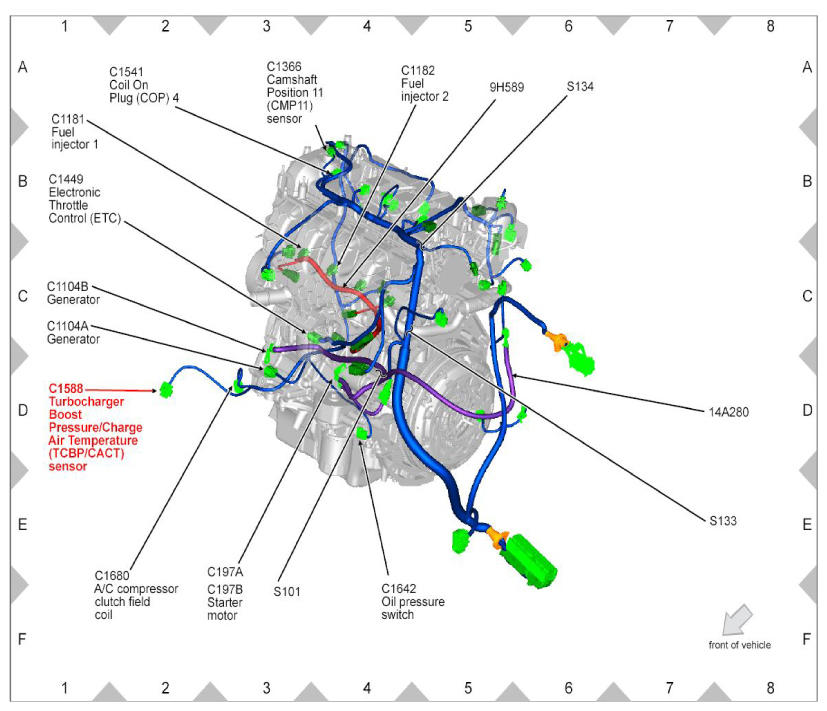

Fig 280: Identifying Turbocharger Boost Pressure/Charge Air Temperature Connector (C1588)

Courtesy of FORD MOTOR CO.

Fig 281: Identifying Fuel Injection Pump Connector (C1589)

Courtesy of FORD MOTOR CO.

Fig 282: Identifying Active Park Assist Sensor, Left Connector (C1607)

Courtesy of FORD MOTOR CO.

Fig 283: Identifying Active Park Assist Sensor, Right Connector (C1608)

Courtesy of FORD MOTOR CO.

Fig 284: Identifying Knock Sensor 1 Connector (C1614)

Courtesy of FORD MOTOR CO.

Fig 285: Identifying Knock Sensor 1 Connector (C1614) (GTDI)

Courtesy of FORD MOTOR CO.

Fig 286: Identifying Knock Sensor 2 Connector (C1615)

Courtesy of FORD MOTOR CO.

Fig 287: Identifying Knock Sensor 2 Connector (C1615) (GTDI)

Courtesy of FORD MOTOR CO.

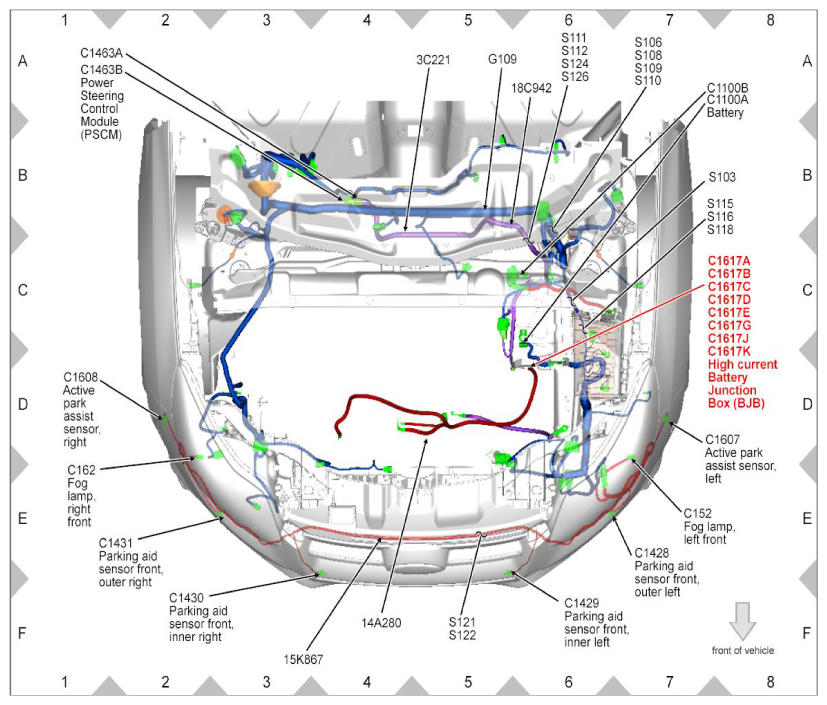

Fig 288: Identifying High Current Battery Junction Box Connector (C1617A C1617B C1617C C1617D C1617E C1617G C1617J C1617K)

Courtesy of FORD MOTOR CO.

Fig 289: Identifying High Current Battery Junction Box Connector (C1617A, C1617B, C1617C, C1617D, C1617E, C1617G, C1617J And C1617K)

Courtesy of FORD MOTOR CO.

Fig 290: Identifying High Current Battery Junction Box Connector (C1617A C1617B C1617C C1617D C1617E C1617G C1617J C1617K)

Courtesy of FORD MOTOR CO.

Fig 291: Identifying High Current Battery Junction Box Connector (C1617A, C1617B, C1617C, C1617D, C1617E, C1617G, C1617J And C1617K)

Courtesy of FORD MOTOR CO.

Fig 292: Identifying High Current Battery Junction Box Connector (C1617A, C1617B, C1617C, C1617D, C1617E, C1617G, C1617J And C1617K)

Courtesy of FORD MOTOR CO.

Fig 293: Identifying High Current Battery Junction Box Connector (C1617A, C1617B, C1617C, C1617D, C1617E, C1617G, C1617J And C1617K)

Courtesy of FORD MOTOR CO.

Fig 294: Identifying High Current Battery Junction Box Connector (C1617A, C1617B, C1617C, C1617D, C1617E, C1617G, C1617J And C1617K)

Courtesy of FORD MOTOR CO.

Fig 295: Identifying High Current Battery Junction Box Connector (C1617A, C1617B, C1617C, C1617D, C1617E, C1617G, C1617J And C1617K)

Courtesy of FORD MOTOR CO.

Fig 296: Identifying Clutch Motor 1 Connector (C1633)

Courtesy of FORD MOTOR CO.

Fig 297: Identifying Clutch Motor 2 Connector (C1634)

Courtesy of FORD MOTOR CO.

Fig 298: Identifying Oil Pressure Switch Connector (C1642)

Courtesy of FORD MOTOR CO.

Fig 299: Identifying Fuel Pressure Sensor Connector (C1643)

Courtesy of FORD MOTOR CO.

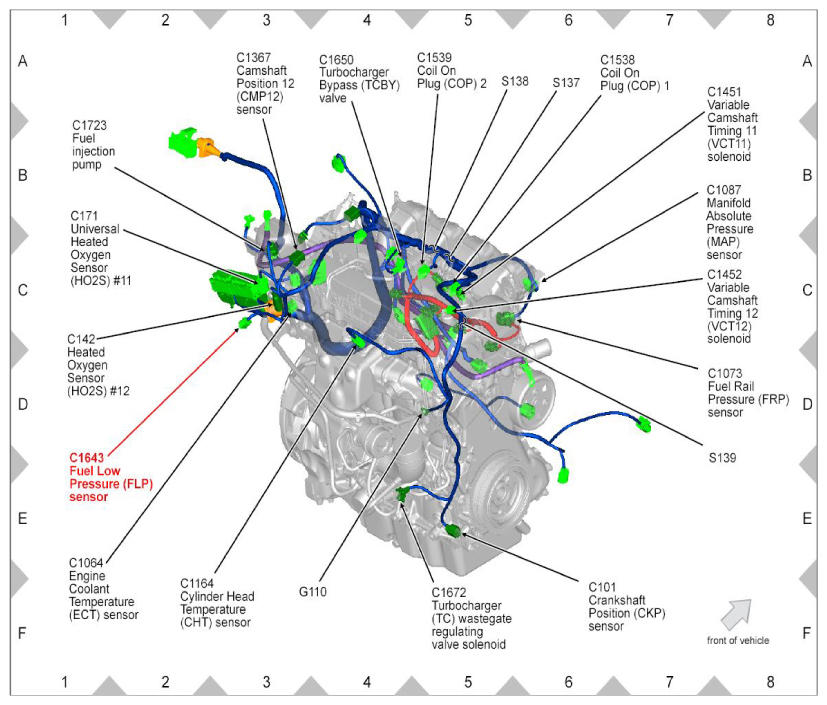

Fig 300: Identifying Fuel Low Pressure Sensor Connector (C1643) (GTDI)

Courtesy of FORD MOTOR CO.

Fig 301: Identifying Battery Monitoring Sensor Connector (C1646)

Courtesy of FORD MOTOR CO.

Fig 302: Identifying Turbocharger Bypass Valve Connector (C1650)

Courtesy of FORD MOTOR CO.

Fig 303: Identifying Grille Shutter Actuator Connector (C1651)

Courtesy of FORD MOTOR CO.

Fig 304: Identifying Windshield Wiper Motor, Left Front Connector (C1655)

Courtesy of FORD MOTOR CO.

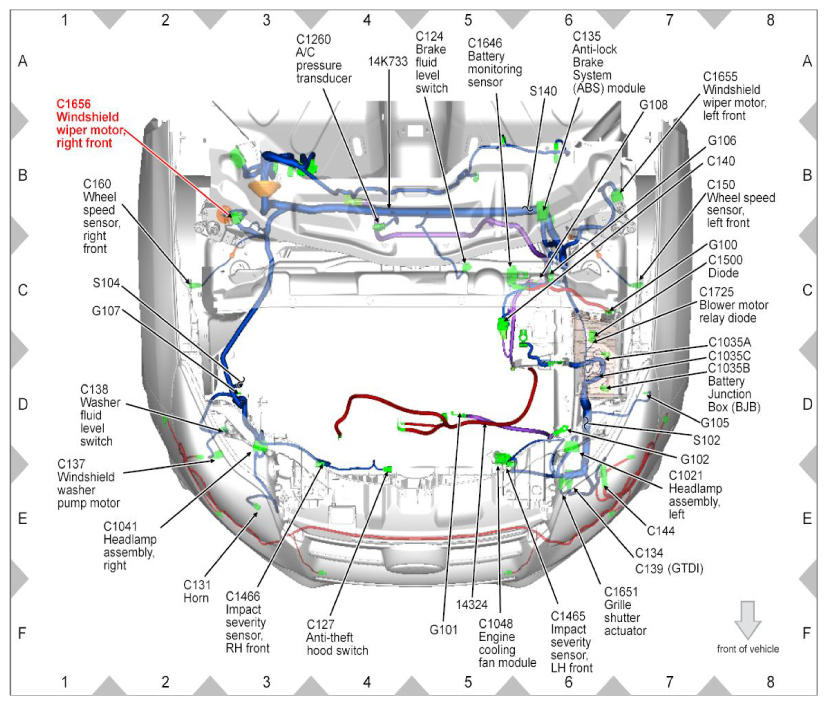

Fig 305: Identifying Windshield Wiper Motor Right Front Connector (C1656)

Courtesy of FORD MOTOR CO.

Fig 306: Identifying Turbocharger Wastegate Regulating Valve Solenoid Connector (C1672)

Courtesy of FORD MOTOR CO.

Fig 307: Identifying A/C Compressor Clutch Field Coil Connector (C1680)

Courtesy of FORD MOTOR CO.

Fig 308: Identifying Noise Generator Connector (C1720)

Courtesy of FORD MOTOR CO.

Fig 309: Identifying Fuel Injection Pump Connector (C1723)

Courtesy of FORD MOTOR CO.

Fig 310: Identifying Blower Motor Relay Diode Connector (C1725)

Courtesy of FORD MOTOR CO.

Fig 311: Identifying Connector (C1750A)

Courtesy of FORD MOTOR CO.

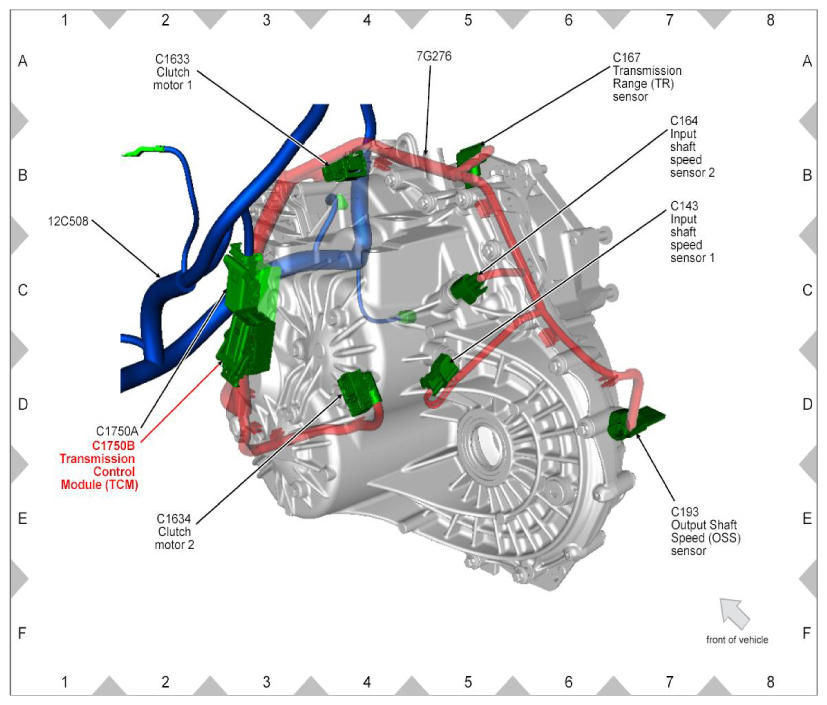

Fig 312: Identifying Transmission Control Module Connector (C1750B)

Courtesy of FORD MOTOR CO.

Fig 313: Identifying Blower Motor Connector (C2004)

Courtesy of FORD MOTOR CO.

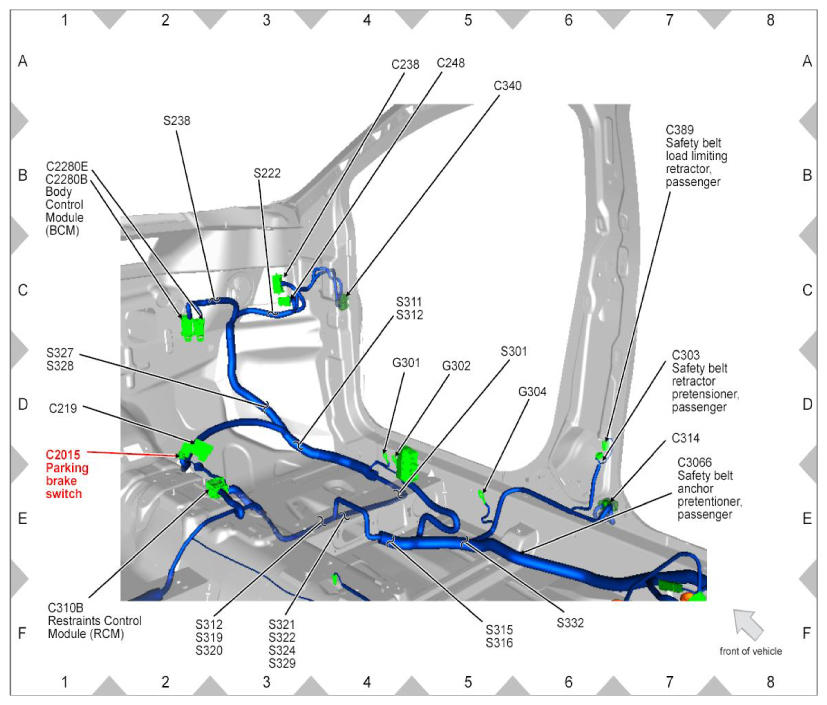

Fig 314: Identifying Parking Brake Switch Connector (C2015)

Courtesy of FORD MOTOR CO.

Fig 315: Identifying Active Park Assist Switch Connector (C2035)

Courtesy of FORD MOTOR CO.

Fig 316: Identifying Accelerator Pedal Position Sensor Connector (C2040)

Courtesy of FORD MOTOR CO.

Fig 317: Identifying Footwell Lamp, Left Front Connector (C2056)

Courtesy of FORD MOTOR CO.

Fig 318: Identifying Footwell Lamp, Right Front Connector (C2057)

Courtesy of FORD MOTOR CO.

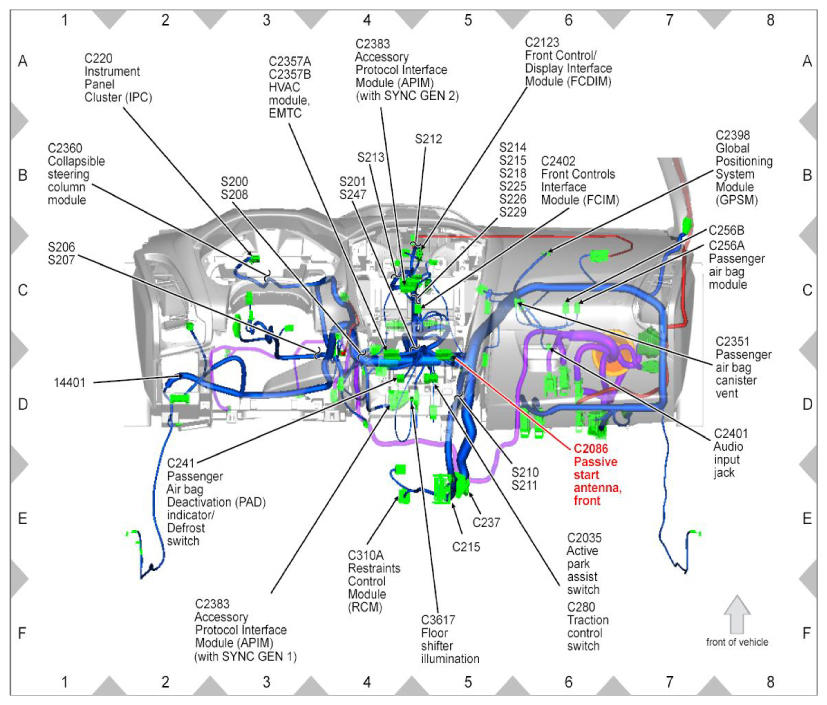

Fig 319: Identifying Passive Start Antenna, Front Connector (C2086)

Courtesy of FORD MOTOR CO.

Fig 320: Identifying Temperature Blend Door Actuator, Driver Connector (C2091)

Courtesy of FORD MOTOR CO.

Fig 321: Identifying Temperature Blend Door Actuator, Passenger Connector (C2092)

Courtesy of FORD MOTOR CO.

Fig 322: Identifying Front Control/Display Interface Module Connector (C2123)

Courtesy of FORD MOTOR CO.

Fig 323: Identifying Headlamp Control Module Connector (C2129)

Courtesy of FORD MOTOR CO.

Fig 324: Identifying Start/Stop Switch Connector (C2195)

Courtesy of FORD MOTOR CO.

Fig 325: Identifying In-Vehicle Temperature/Humidity Sensor Connector (C2247)

Courtesy of FORD MOTOR CO.

Fig 326: Identifying Connector (C2280A)

Courtesy of FORD MOTOR CO.

Fig 327: Identifying Body Control Module Connector (C2280B)

Courtesy of FORD MOTOR CO.

Fig 328: Identifying Connector (C2280C)

Courtesy of FORD MOTOR CO.

Fig 329: Identifying Connector (C2280D)

Courtesy of FORD MOTOR CO.

Fig 330: Identifying Connector (C2280E)

Courtesy of FORD MOTOR CO.

Fig 331: Identifying Connector (C2280F)

Courtesy of FORD MOTOR CO.

Fig 332: Identifying Connector (C2280G)

Courtesy of FORD MOTOR CO.

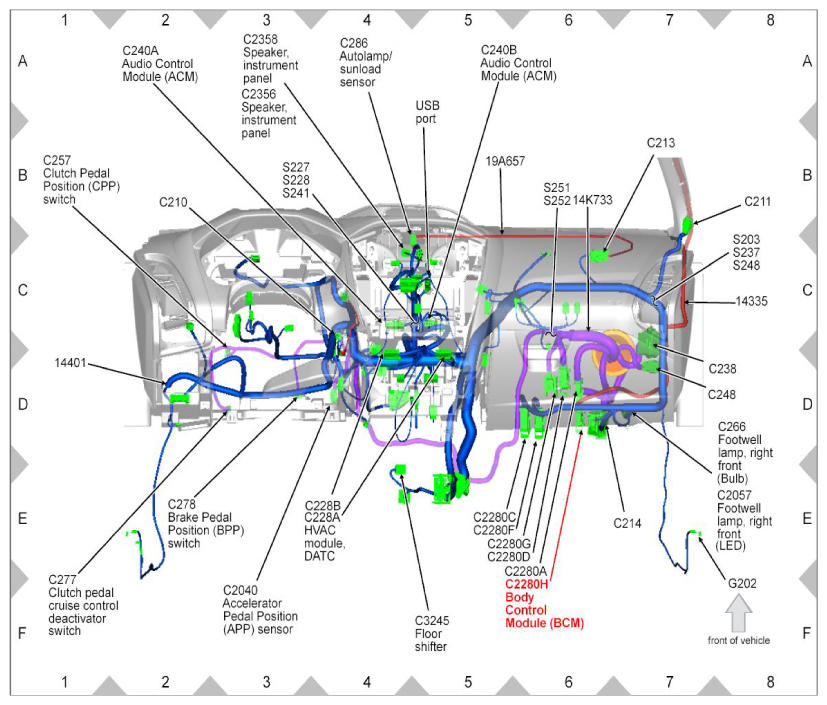

Fig 333: Identifying Body Control Module Connector (C2280H)

Courtesy of FORD MOTOR CO.

Fig 334: Identifying Passenger Air Bag Canister Vent Connector (C2351)

Courtesy of FORD MOTOR CO.

Fig 335: Identifying Speaker, Instrument Panel Connector (C2356)

Courtesy of FORD MOTOR CO.

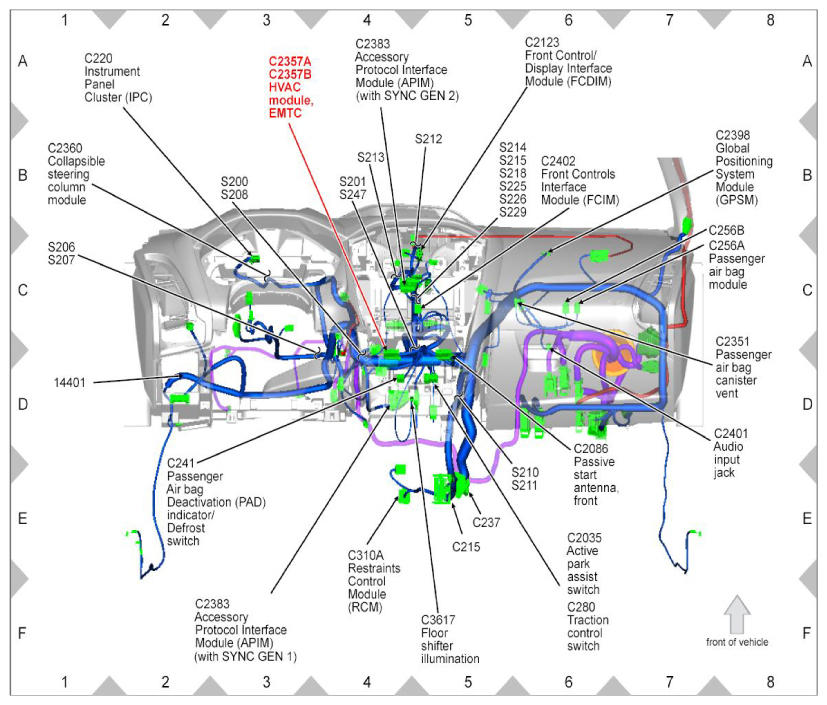

Fig 336: Identifying HVAC Module EMTC Connector (C2357A And C2357B)

Courtesy of FORD MOTOR CO.

Fig 337: Identifying HVAC Module EMTC Connector (C2357A And C2357B)

Courtesy of FORD MOTOR CO.

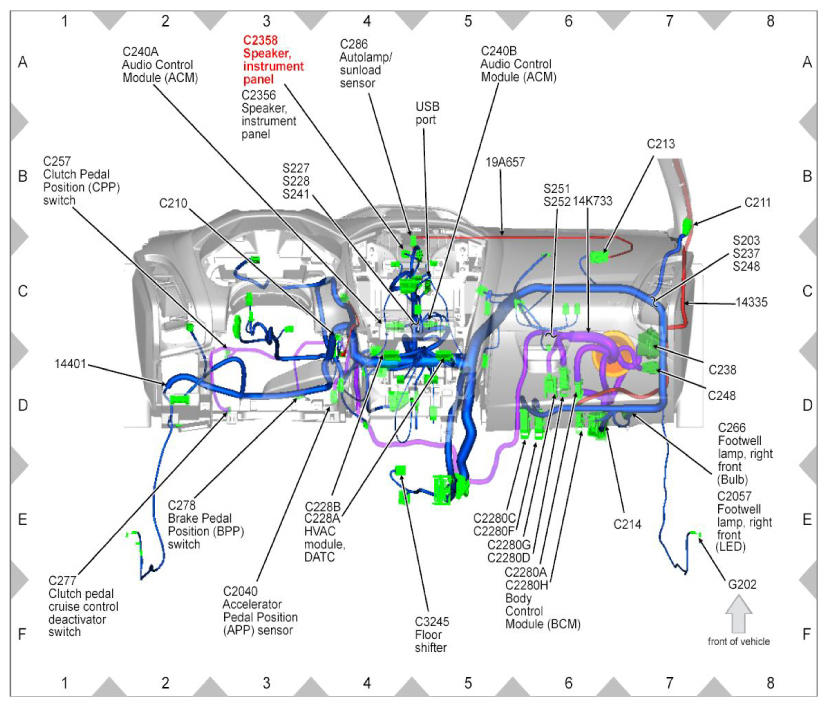

Fig 338: Identifying Speaker, Instrument Panel Connector (C2353)

Courtesy of FORD MOTOR CO.

Fig 339: Identifying Collapsible Steering Column Module Connector (C2360)

Courtesy of FORD MOTOR CO.

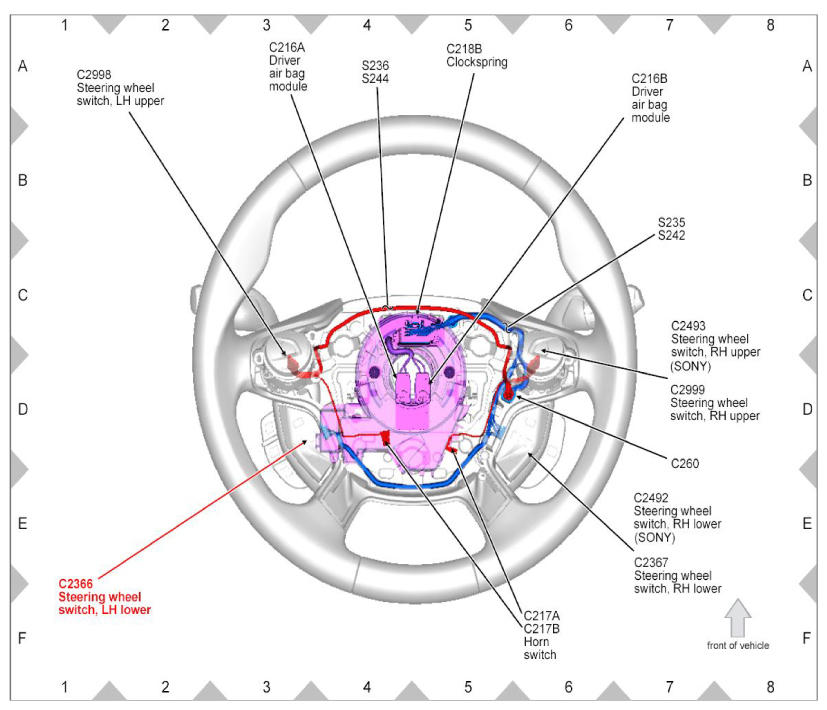

Fig 340: Identifying Steering Wheel Switch, LH Lower Connector (C2366)

Courtesy of FORD MOTOR CO.

Fig 341: Identifying Steering Wheel Switch, RH Lower Connector (C2367)

Courtesy of FORD MOTOR CO.

Fig 342: Identifying Temperature Blend Door Actuator Connector (C2381)

Courtesy of FORD MOTOR CO.

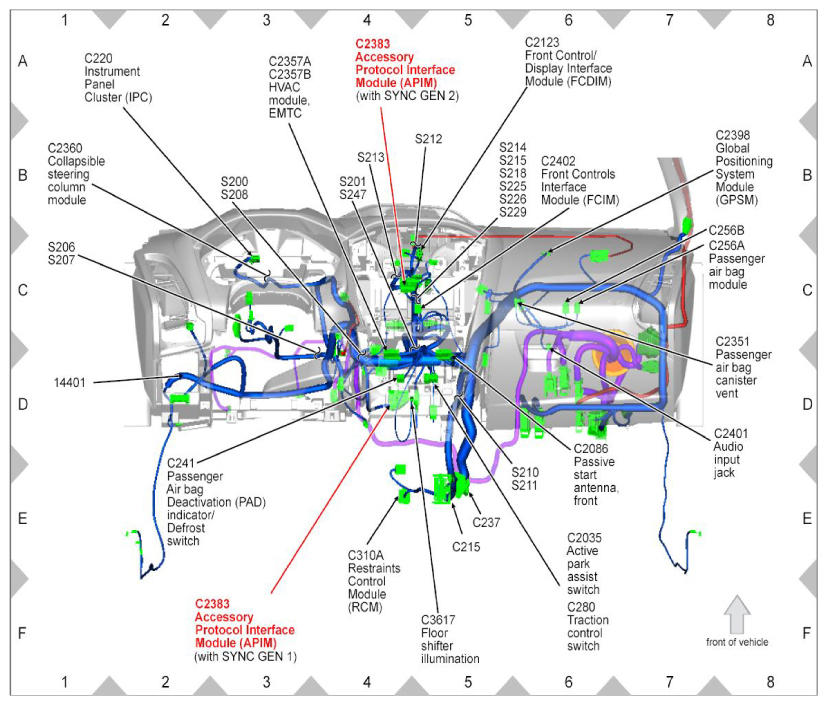

Fig 343: Identifying Accessory Protocol Interface Module Connector (C2383)

Courtesy of FORD MOTOR CO.

Fig 344: Identifying Global Positioning System Module Connector (C2398)

Courtesy of FORD MOTOR CO.

Fig 345: Identifying Audio Input Jack Connector (C2401)

Courtesy of FORD MOTOR CO.

Fig 346: Identifying Front Controls Interface Module Connector (C2402)

Courtesy of FORD MOTOR CO.

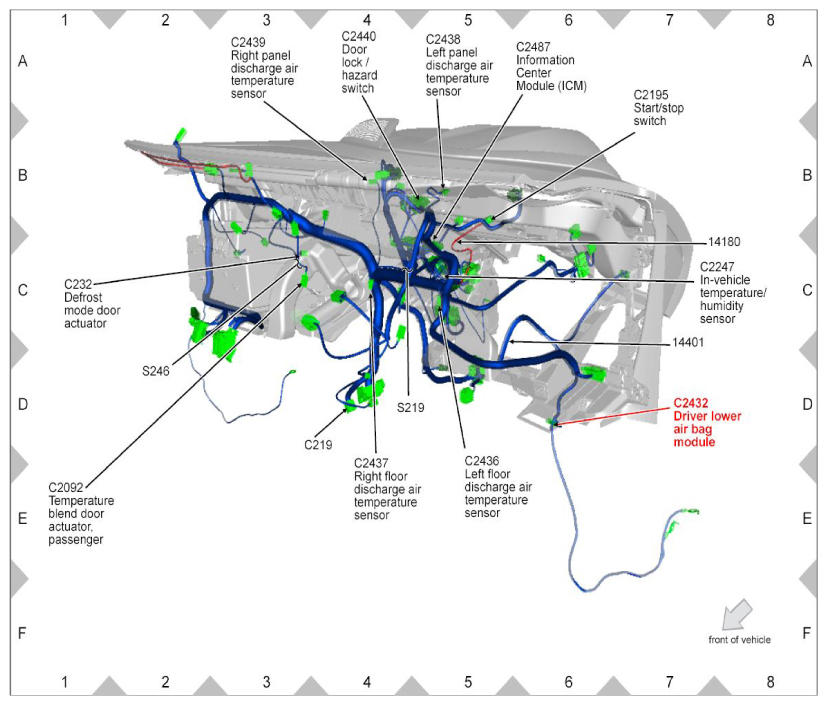

Fig 347: Identifying Driver Lower Air Bag Module Connector (C2432)

Courtesy of FORD MOTOR CO.

Fig 348: Identifying Left Floor Discharge Air Temperature Sensor Connector (C2436)

Courtesy of FORD MOTOR CO.

Fig 349: Identifying Right Floor Discharge Air Temperature Sensor Connector (C2437)

Courtesy of FORD MOTOR CO.

Fig 350: Identifying Left Panel Discharge Air Temperature Sensor Connector (C2438)

Courtesy of FORD MOTOR CO.

Fig 351: Identifying Right Panel Discharge Air Temperature Sensor Connector (C2439)

Courtesy of FORD MOTOR CO.

Fig 352: Identifying Door Lock/Hazard Switch Connector (C2440)

Courtesy of FORD MOTOR CO.

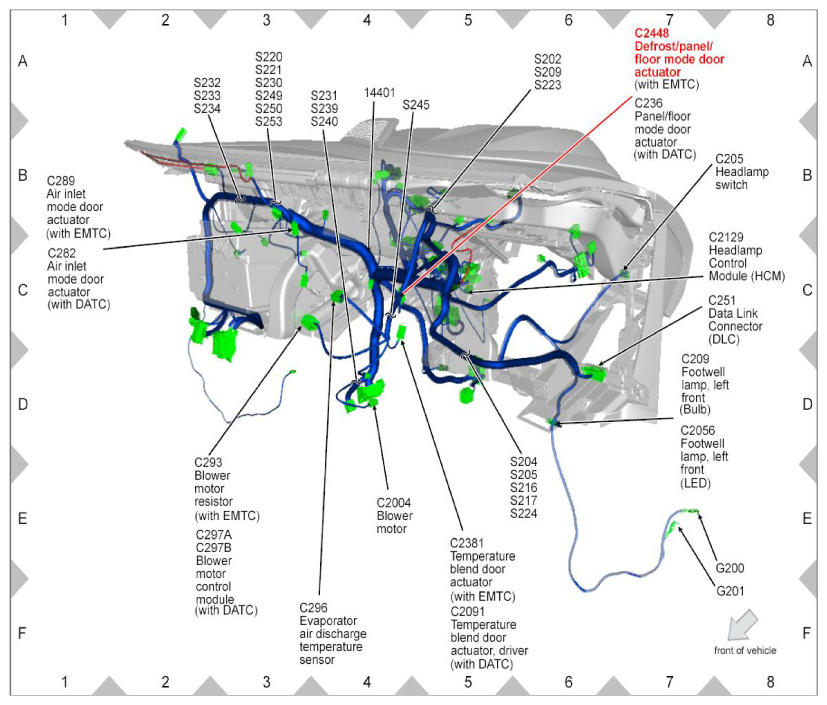

Fig 353: Identifying Defrost/Panel/Floor Mode Door Actuator Connector (C2448)

Courtesy of FORD MOTOR CO.

Fig 354: Identifying Information Center Module Connector (C2487)

Courtesy of FORD MOTOR CO.

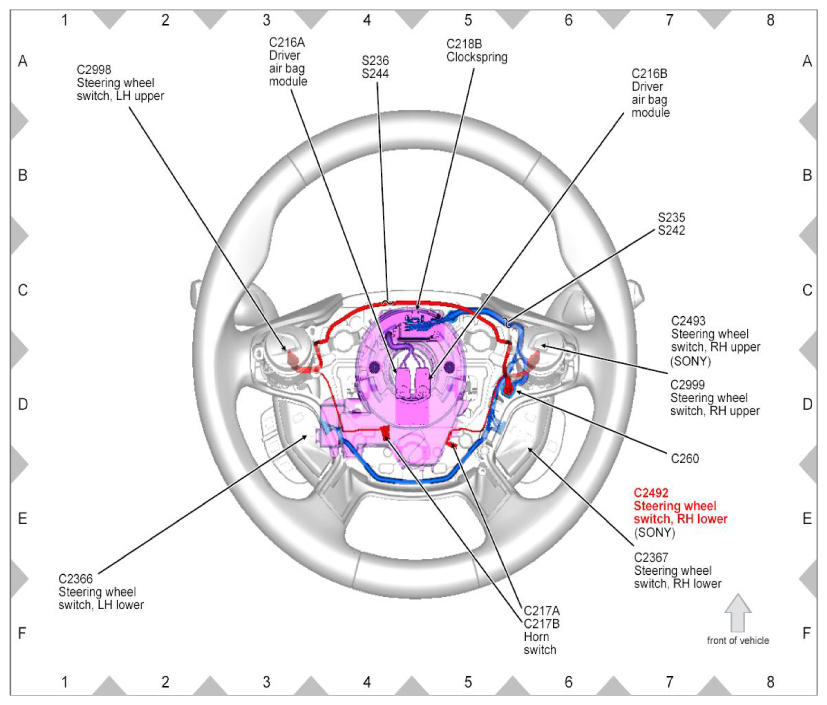

Fig 355: Identifying Steering Wheel Switch, RH Lower Connector (C2492)

Courtesy of FORD MOTOR CO.

Fig 356: Identifying Steering Wheel Switch, RH Upper Connector (C2493)

Courtesy of FORD MOTOR CO.

Fig 357: Identifying Steering Wheel Switch LH Upper Connector (C2998)

Courtesy of FORD MOTOR CO.

Fig 358: Identifying Steering Wheel Switch, RH Upper Connector (C2999)

Courtesy of FORD MOTOR CO.

Fig 359: Identifying Connector (C3007A)

Courtesy of FORD MOTOR CO.

Fig 360: Identifying Connector (C3007B)

Courtesy of FORD MOTOR CO.

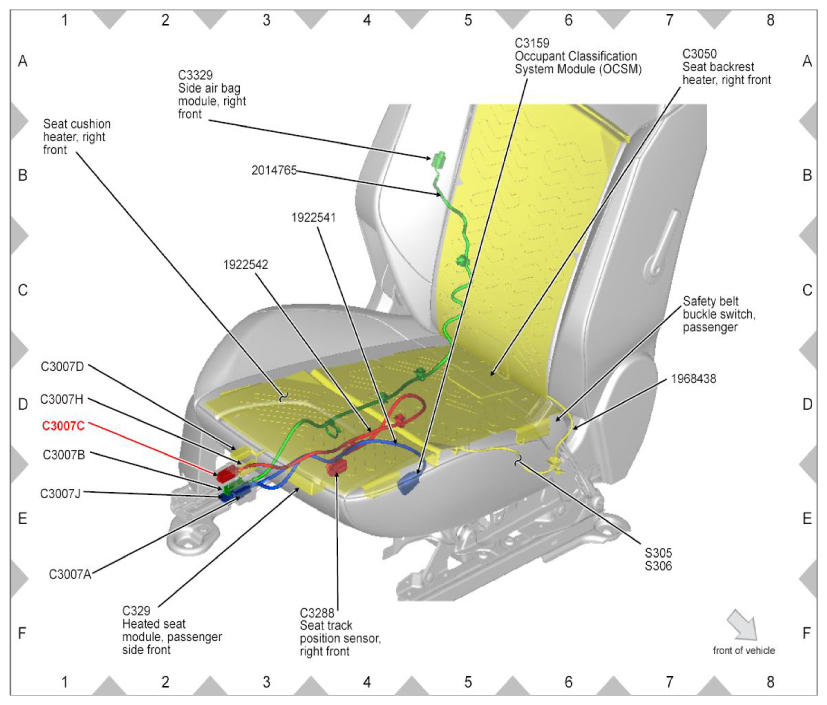

Fig 361: Identifying Connector (C3007C)

Courtesy of FORD MOTOR CO.

Fig 362: Identifying Connector (C3007D)

Courtesy of FORD MOTOR CO.

Fig 363: Identifying Connector (C3007H)

Courtesy of FORD MOTOR CO.

Fig 364: Identifying Connector (C3007J)

Courtesy of FORD MOTOR CO.

Fig 365: Identifying Connector (C3047)

Courtesy of FORD MOTOR CO.

Fig 366: Identifying Seat Backrest Heater, Left Front Connector (C3049)

Courtesy of FORD MOTOR CO.

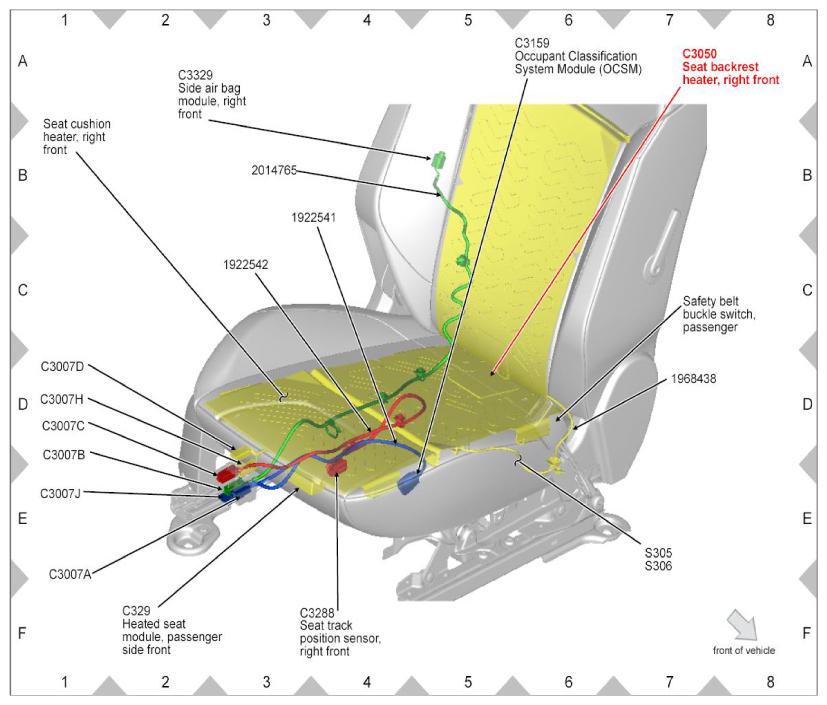

Fig 367: Identifying Seat Backrest Heater, Right Front Connector (C3050)

Courtesy of FORD MOTOR CO.

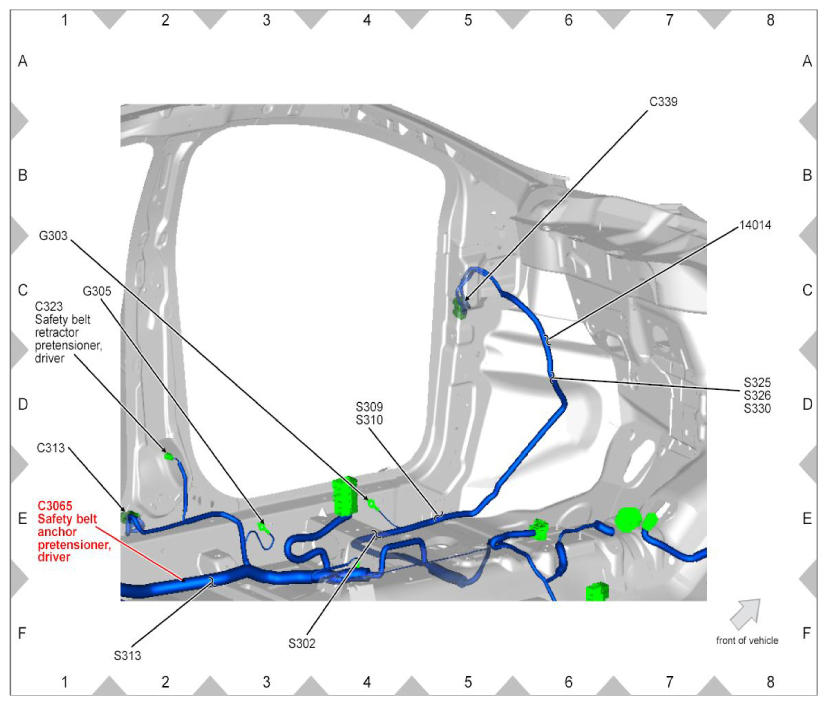

Fig 368: Identifying Safety Belt Anchor Pretensioner Driver Connector (C3065)

Courtesy of FORD MOTOR CO.

Fig 369: Identifying Safety Belt Anchor Pretensioner, Passenger Connector (C3066)

Courtesy of FORD MOTOR CO.

Fig 370: Identifying Fuel Tank Pressure Sensor Connector (C3123) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 371: Identifying Fuel Tank Pressure Sensor Connector (C3123) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 372: Identifying Fuel Pump Assembly Connector (C3127)) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 373: Identifying Fuel Pump Assembly Connector (C3127) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 374: Identifying Occupant Classification System Module Connector (C3159)

Courtesy of FORD MOTOR CO.

Fig 375: Identifying Side Impact Sensor, Second Row, LH Connector (C3209) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 376: Identifying Side Impact Sensor, Second Row, LH Connector (C3209) (5 Door)

Courtesy of FORD MOTOR CO.

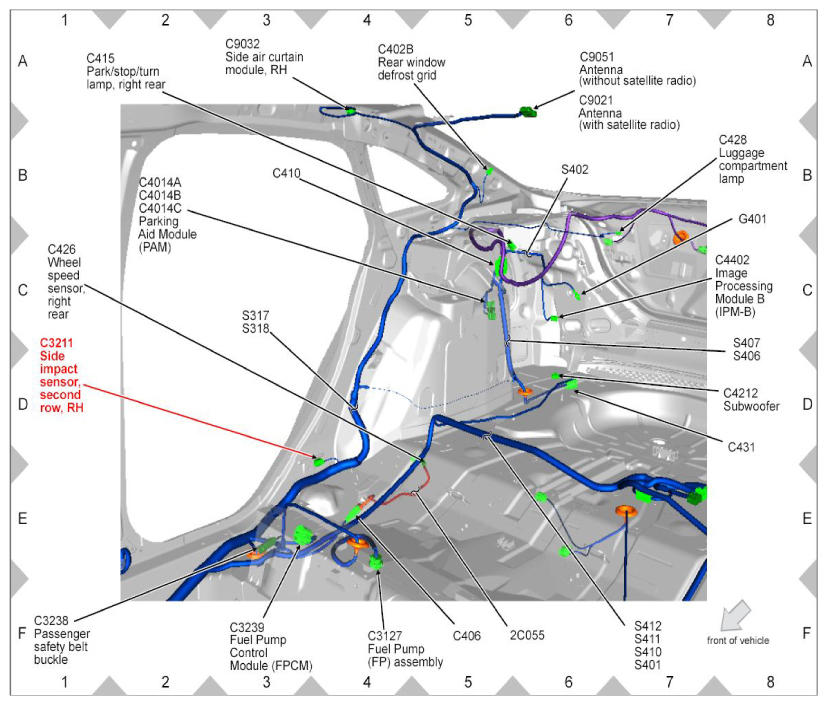

Fig 377: Identifying Side Impact Sensor, Second Row, RH Connector (C3211) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 378: Identifying Side Impact Sensor, Second Row, RH Connector (C3211) (5 Door)

Courtesy of FORD MOTOR CO.

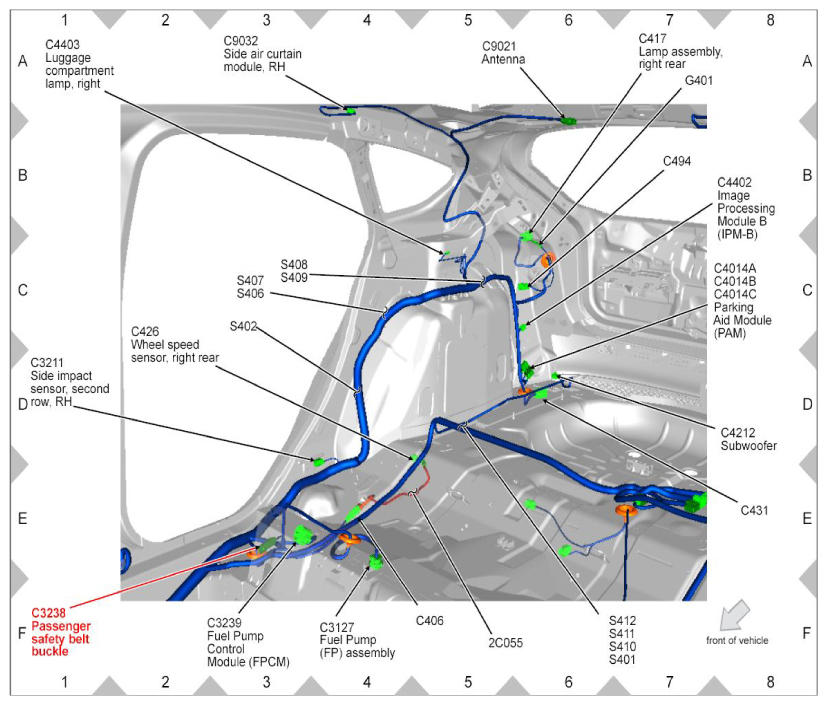

Fig 379: Identifying Passenger Safety Belt Buckle Connector (C3238) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 380: Identifying Passenger Safety Belt Buckle Connector (C3238) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 381: Identifying Fuel Pump Control Module Connector (C3239) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 382: Identifying Fuel Pump Control Module Connector (C3239) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 383: Identifying Floor Shifter Connector (C3245)

Courtesy of FORD MOTOR CO.

Fig 384: Identifying Seat Track Position Sensor, Right Front Connector (C3288)

Courtesy of FORD MOTOR CO.

Fig 385: Identifying Audio Input Jack Connector (C3312)

Courtesy of FORD MOTOR CO.

Fig 386: Identifying Side Air Bag Module, Left Front Connector (C3321)

Courtesy of FORD MOTOR CO.

Fig 387: Identifying Power Point, Rear Connector (C3323)

Courtesy of FORD MOTOR CO.

Fig 388: Identifying Side Air Bag Module, Right Front Connector (C3329)

Courtesy of FORD MOTOR CO.

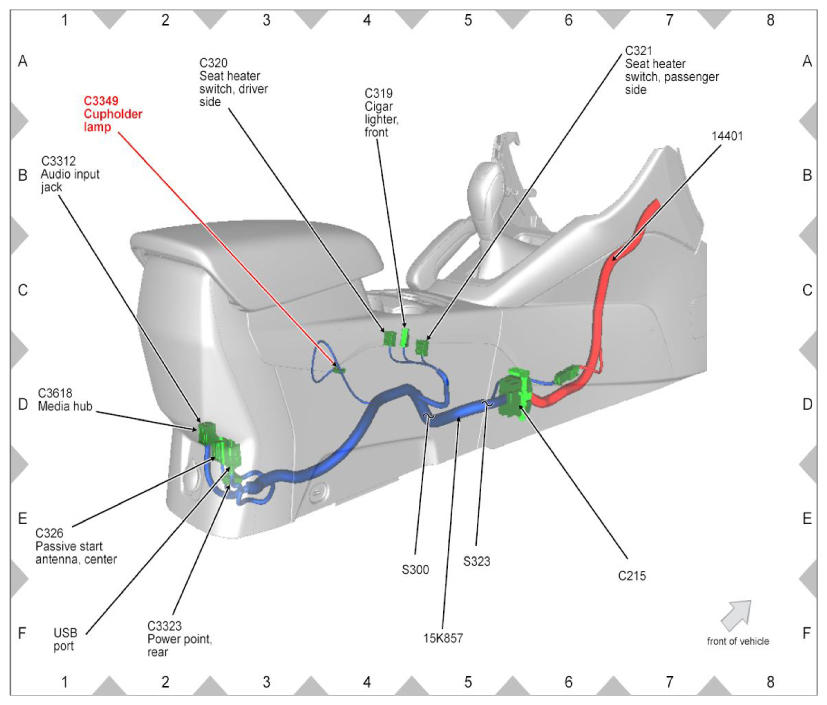

Fig 389: Identifying Cupholder Lamp Connector (C3349)

Courtesy of FORD MOTOR CO.

Fig 390: Identifying Floor Shifter Illumination Connector (C3617)

Courtesy of FORD MOTOR CO.

Fig 391: Identifying Media Hub Connector (C3618)

Courtesy of FORD MOTOR CO.

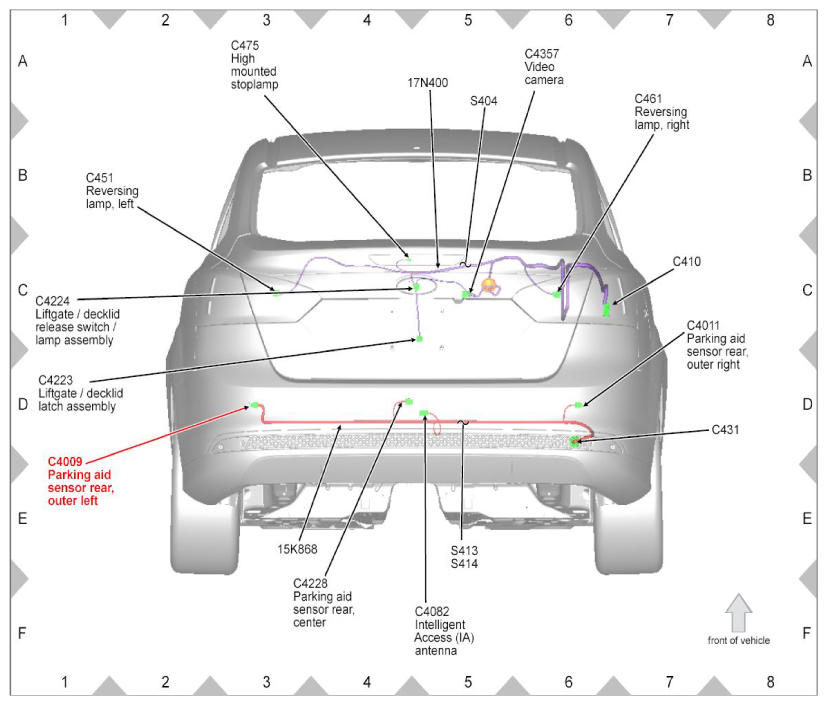

Fig 392: Identifying Parking Aid Sensor Rear, Outer Left Connector (C4009) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 393: Identifying Parking Aid Sensor Rear, Outer Left Connector (C4009) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 394: Identifying Parking Aid Sensor Rear, Outer Right Connector (C4011) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 395: Identifying Parking Aid Sensor Rear, Outer Right Connector (C4011) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 396: Identifying Parking Aid Module Connector (C4014A, C4014B And C4014C) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 397: Identifying Parking Aid Module Connector (C4014A, C4014B And C4014C) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 398: Identifying Parking Aid Module Connector (C4014A, C4014B And C4014C) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 399: Identifying Parking Aid Module Connector (C4014A, C4014B And C4014C) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 400: Identifying Parking Aid Module Connector (C4014A, C4014B And C4014C) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 401: Identifying Parking Aid Module Connector (C4014A, C4014B And C4014C) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 402: Identifying Intelligent Access Antenna Connector (C4082) (4 Door)

Courtesy of FORD MOTOR CO.

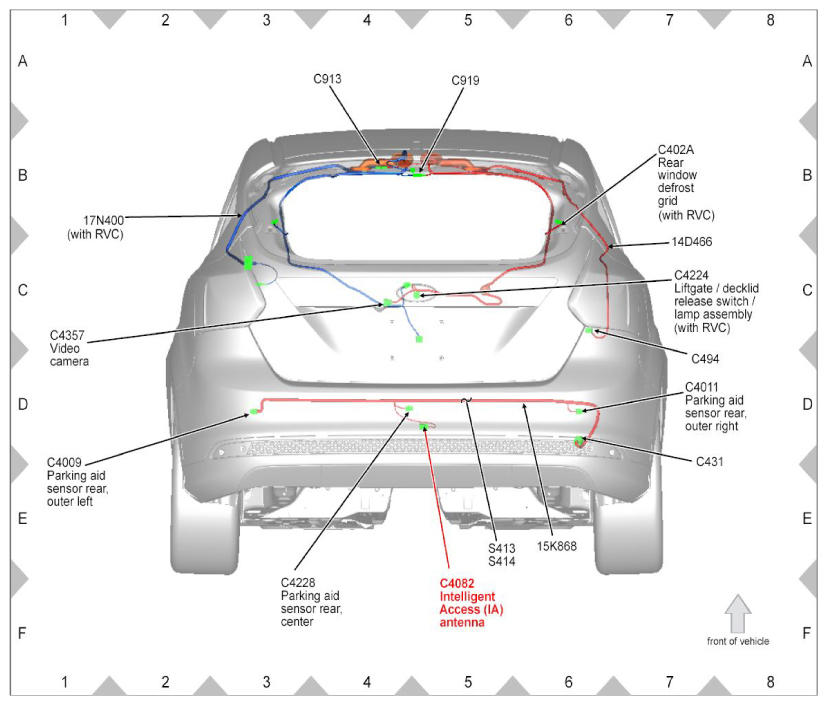

Fig 403: Identifying Intelligent Access Antenna Connector (C4082) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 404: Identifying Luggage Compartment Lamp, Left Connector (C4198)

Courtesy of FORD MOTOR CO.

Fig 405: Identifying Subwoofer Connector (C4212) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 406: Identifying Subwoofer Connector (C4212) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 407: Identifying Rear Window Wiper Motor Connector (C4218)

Courtesy of FORD MOTOR CO.

Fig 408: Identifying Isolator Connector (C4221)

Courtesy of FORD MOTOR CO.

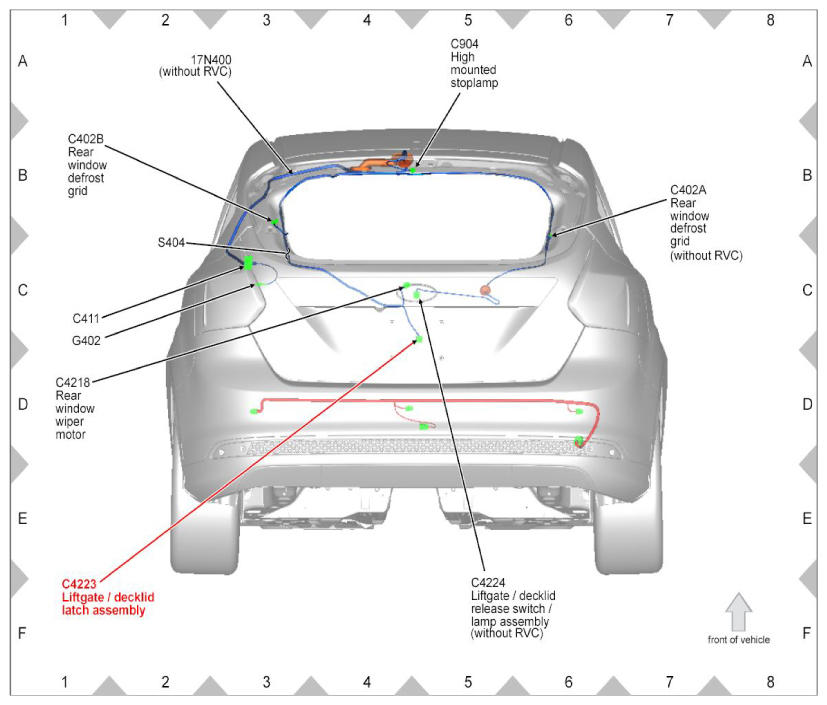

Fig 409: Identifying Liftgate/Decklid Latch Assembly Connector (C4223) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 410: Identifying Liftgate/Decklid Latch Assembly Connector (C4223) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 411: Identifying Liftgate/Decklid Release Switch/Lamp Assembly Connector (C4224) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 412: Identifying Liftgate/Decklid Release Switch/Lamp Assembly Connector (C4224) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 413: Identifying Parking Aid Sensor Rear, Center Connector (C4228) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 414: Identifying Parking Aid Sensor Rear, Center Connector (C4228) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 415: Identifying Connector (C4226A) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 416: Identifying Connector (C4226A) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 417: Identifying Connector (C4326B) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 418: Identifying Connector (C4326B) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 419: Identifying Audio Digital Signal Processing Module Connector (C4326C) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 420: Identifying Audio Digital Signal Processing Module Connector (C4326C) (5 Door)

Courtesy of FORD MOTOR CO.

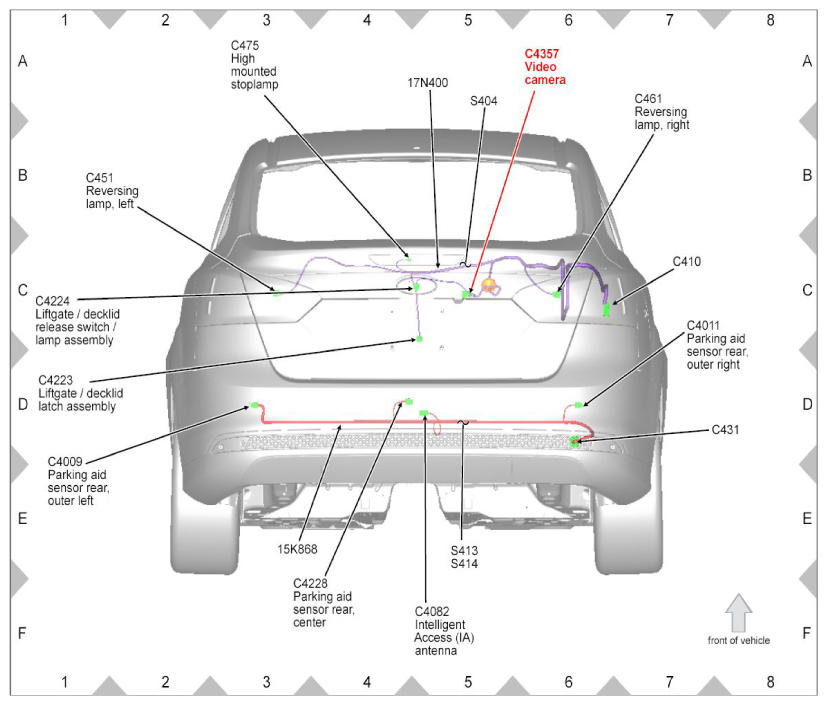

Fig 421: Identifying Video Camera Connector (C4357) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 422: Identifying Video Camera Connector (C4357) (5 Door)

Courtesy of FORD MOTOR CO.

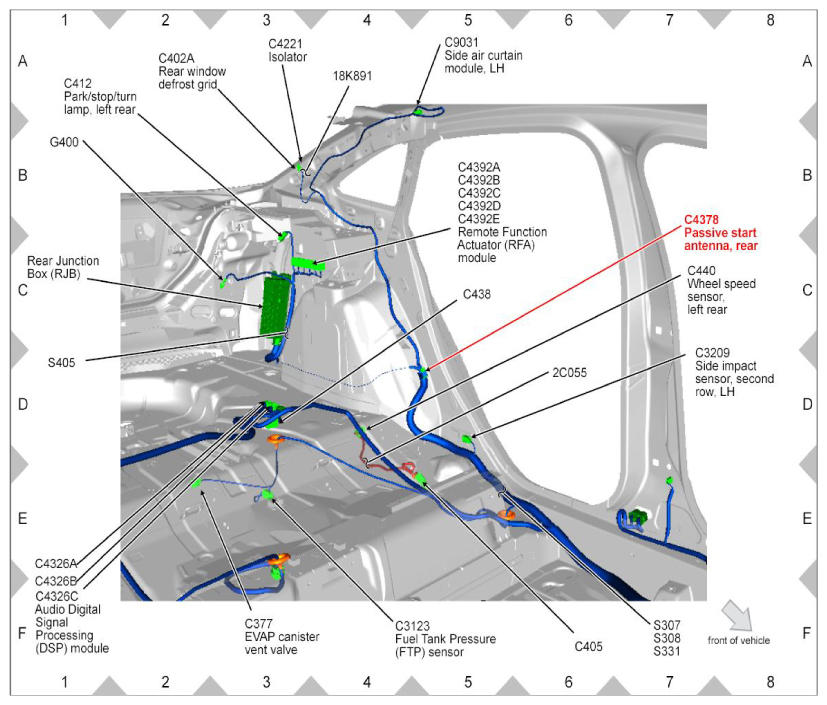

Fig 423: Identifying Passive Start Antenna, Rear Connector (C4378) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 424: Identifying Passive Start Antenna, Rear Connector (C4378) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 425: Identifying Remote Function Actuator Module Connector (C4392A, C4392B, C4392C, C4392D And C4392E) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 426: Identifying Remote Function Actuator Module Connector (C4392A, C4392B, C4392C, C4392D And C4392E) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 427: Identifying Remote Function Actuator Module Connector (C4392A, C4392B, C4392C, C4392D And C4392E) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 428: Identifying Remote Function Actuator Module Connector (C4392A, C4392B, C4392C, C4392D And C4392E) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 429: Identifying Remote Function Actuator Module Connector (C4392A, C4392B, C4392C, C4392D And C4392E) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 430: Identifying Remote Function Actuator Module Connector (C4392A, C4392B, C4392C, C4392D And C4392E) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 431: Identifying Remote Function Actuator Module Connector (C4392A, C4392B, C4392C, C4392D And C4392E) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 432: Identifying Remote Function Actuator Module Connector (C4392A, C4392B, C4392C, C4392D And C4392E) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 433: Identifying Remote Function Actuator Module Connector (C4392A, C4392B, C4392C, C4392D And C4392E) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 434: Identifying Remote Function Actuator Module Connector (C4392A, C4392B, C4392C, C4392D And C4392E) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 435: Identifying Image Processing Module B Connector (C4402) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 436: Identifying Image Processing Module B Connector (C4402) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 437: Identifying Luggage Compartment Lamp, Right Connector (C4403)

Courtesy of FORD MOTOR CO.

Fig 438: Identifying Antenna Connector (C9021) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 439: Identifying Antenna Connector (C9021) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 440: Identifying Remote Functions Receiver Module Connector (C9026)

Courtesy of FORD MOTOR CO.

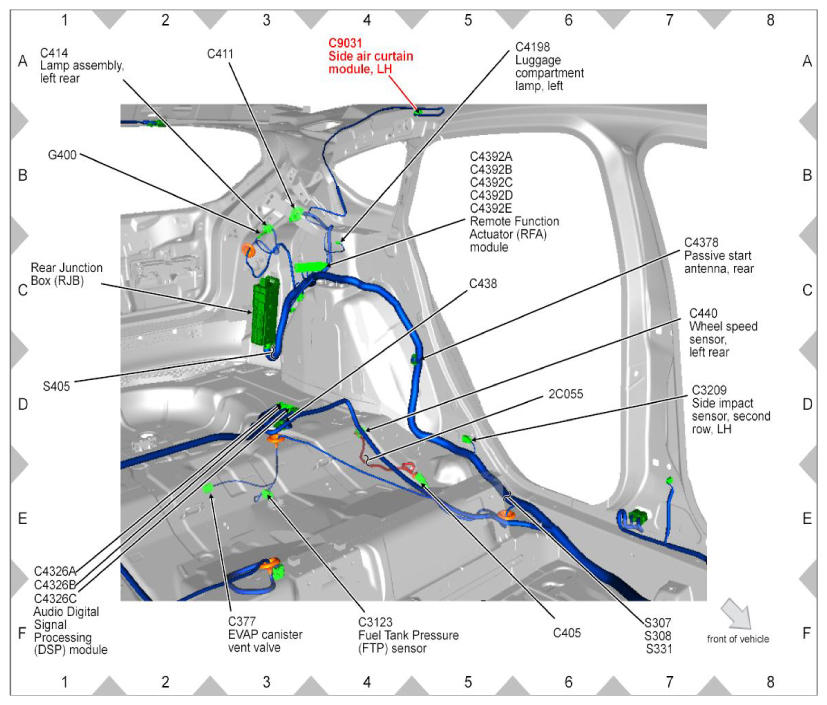

Fig 441: Identifying Side Air Curtain Module, LH Connector (C9031) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 442: Identifying Side Air Curtain Module, LH Connector (C9031) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 443: Identifying Side Air Curtain Module, RH Connector (C9032) (4 Door)

Courtesy of FORD MOTOR CO.

Fig 444: Identifying Side Air Curtain Module, RH Connector (C9032) (5 Door)

Courtesy of FORD MOTOR CO.

Fig 445: Identifying Overhead Console Illumination Connector (C9046)

Courtesy of FORD MOTOR CO.

Fig 446: Identifying Antenna Connector (C9051)

Courtesy of FORD MOTOR CO.

Fig 447: Identifying Microphone Connector (C9221)

Courtesy of FORD MOTOR CO.
