Instrument Panel Cluster (IPC): Removal

NOTE: If installing a new Instrument Panel Cluster (IPC), all vehicle keys are erased during the parameter reset procedure. Verify at least 2 of the vehicle keys are available prior to carrying out this procedure.

NOTE: If a new non-Intelligent Access (IA) IPC is installed, the IPC and the PCM require a parameter reset to allow the IPC and the PCM to recognize each other. Failure to carry out the parameter reset to the IPC and the PCM may result in a no start condition.

If installing a new IPC, upload the IPC configuration information to the scan tool. For additional information, refer to Programmable Module Installation (PMI) in MODULE CONFIGURATION SYSTEM .
Lower the tilt steering column to the lowest setting.
Remove the IPC center bolt cover and bolt.

Fig 1: Locating IPC Center Bolt Cover And Bolt
Courtesy of FORD MOTOR CO.
Position back the instrument cluster finish panel.
Remove the two lower IPC bolts and the IPC.
- Disconnect the electrical connector.

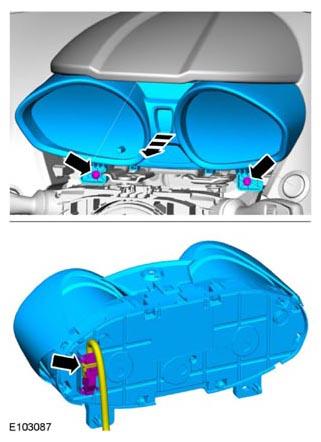

  Fig 2: Removing Instrument Panel Cluster
  Courtesy of FORD MOTOR CO.
