Instrument Panel Cluster (IPC): Installation
- Position the IPC in the instrument panel, connect the electrical connector and install the 2 lower IPC screws.
- Reposition the instrument cluster finish panel.

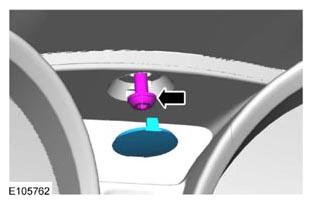

- Install the IPC center bolt cover and bolt.
Courtesy of FORD MOTOR CO.
- If installing a new IA IPC remove relay R7 from the Central Junction Box (CJB) and jumper pins 3 and 5 together. Download the IPC configuration information from the scan tool into the new IPC. For additional information, refer to MODULE CONFIGURATION SYSTEM
.
- After configuration, remove the jumper and reinstall relay R7.
- If installing a new non-IA IPC, carry out the parameter reset procedure. For additional information, refer to MODULE CONFIGURATION SYSTEM
.
- If installing a new non-IA IPC, carry out the key programming procedure. For additional information, refer to ANTI-THEFT SYSTEM - PASSIVE ANTI-THEFT SYSTEM
.
