5 Door

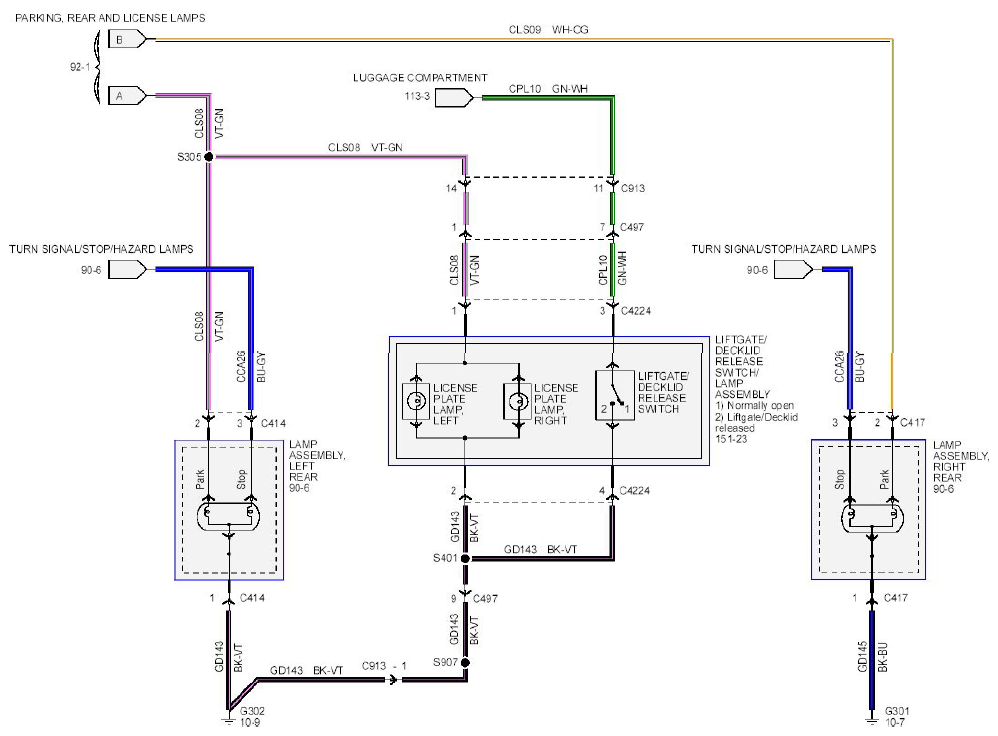

Fig 1: Parking, Rear And License Lamps Wiring Diagram - 5 Door

G08666930

Courtesy of FORD MOTOR CO.
