Parking, Rear and License Lamps: Notes

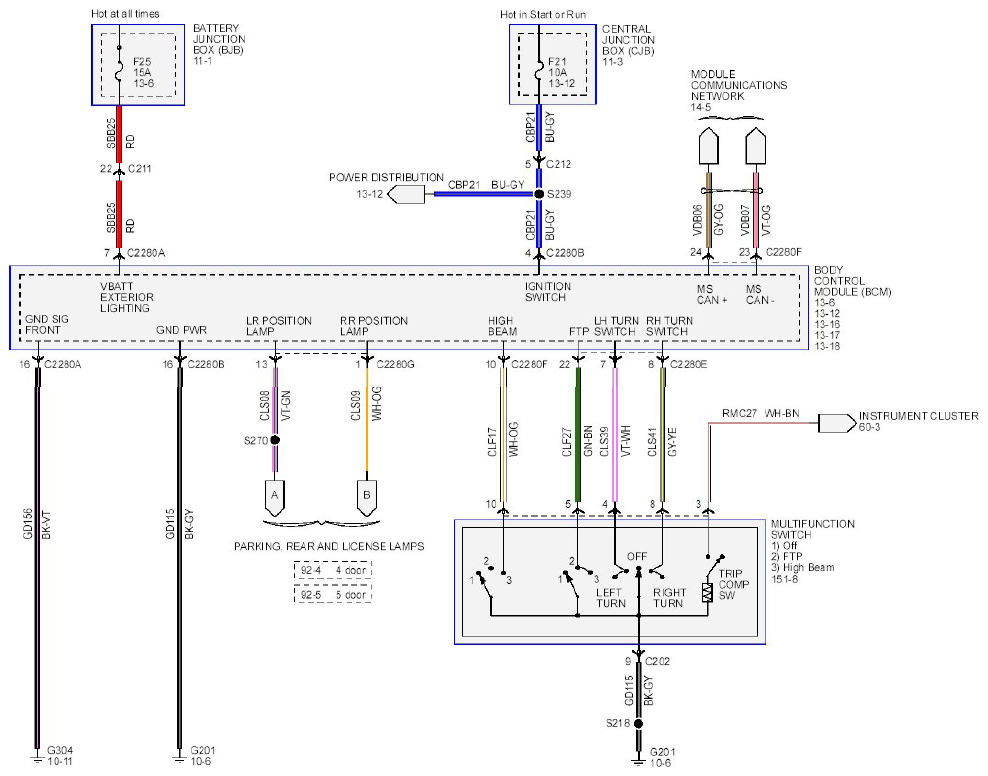

Fig 1: Parking, Rear And License Lamps Wiring Diagram

G08666926

Courtesy of FORD MOTOR CO.
