Headlamps Autolamps

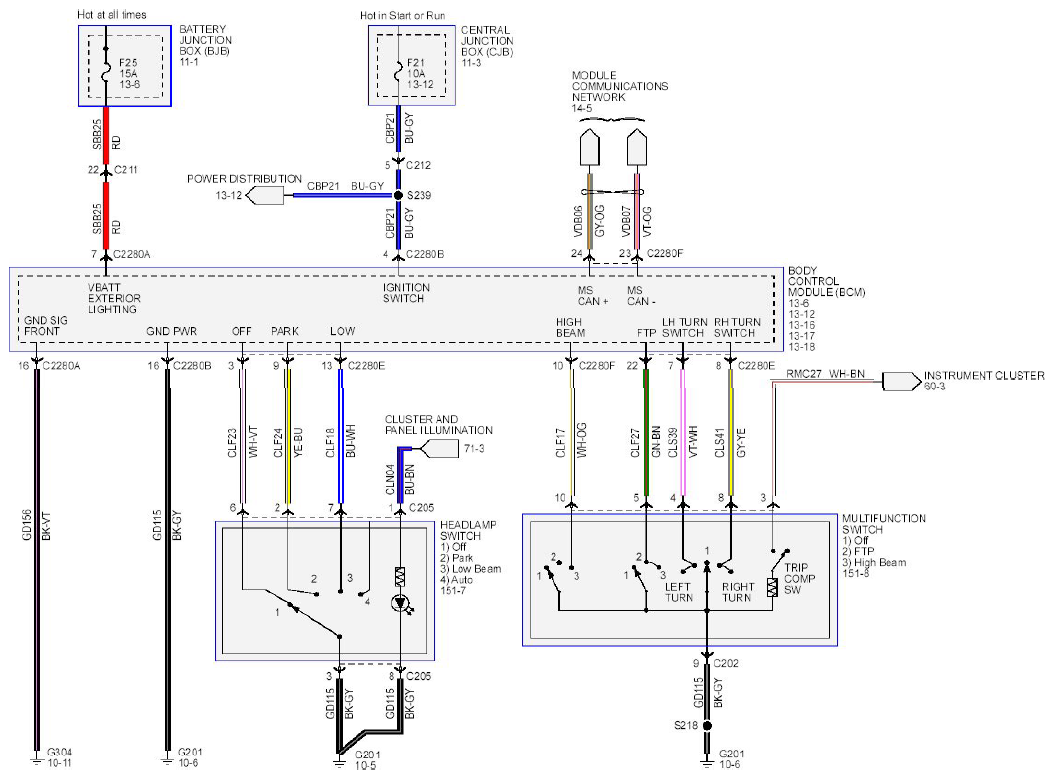

Fig 1: Headlamps Autolamps Wiring Diagram (1 Of 3)
G08666912Courtesy of FORD MOTOR CO.

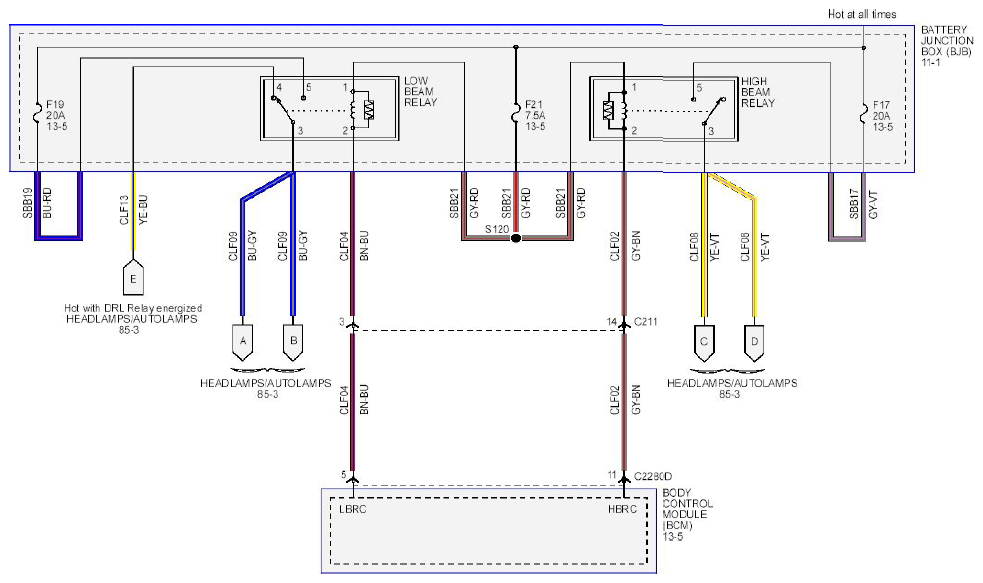

Fig 2: Headlamps Autolamps Wiring Diagram (2 Of 3)
G08666913Courtesy of FORD MOTOR CO.

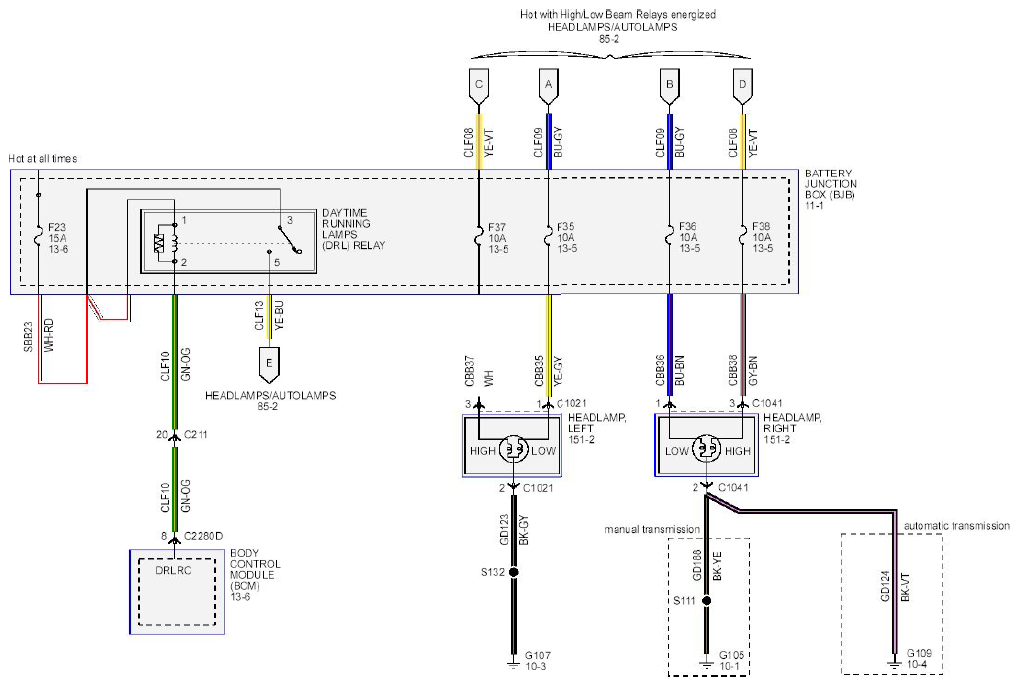

Fig 3: Headlamps Autolamps Wiring Diagram (3 Of 3)
G08666914Courtesy of FORD MOTOR CO.
