Reversing Lamps
>>
Manual Transmission
Manual Transmission

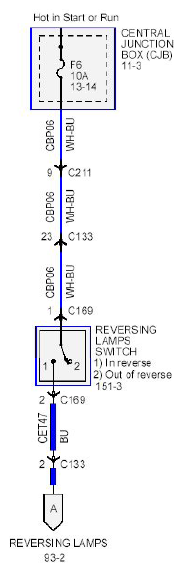

Fig 1: Reversing Lamps Wiring Diagram - (Manual Transmission)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
