Reversing Lamps
>>
Automatic Transmission
Automatic Transmission

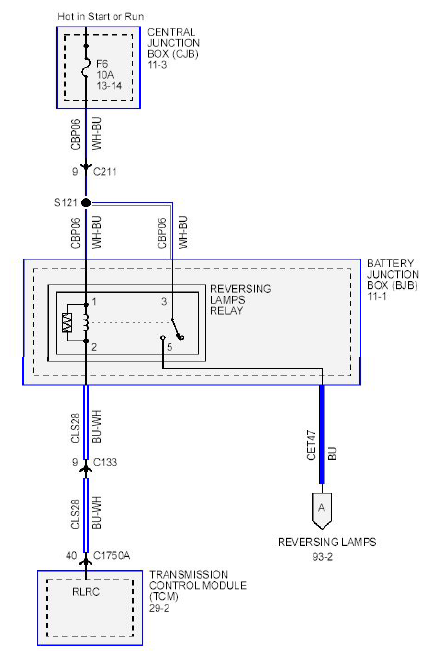

Fig 1: Reversing Lamps Wiring Diagram - (Automatic Transmission)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
