Fiesta Titanium, 4D Hatchback, Standard Trans
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Luggage Compartment
>>
With IA
With IA

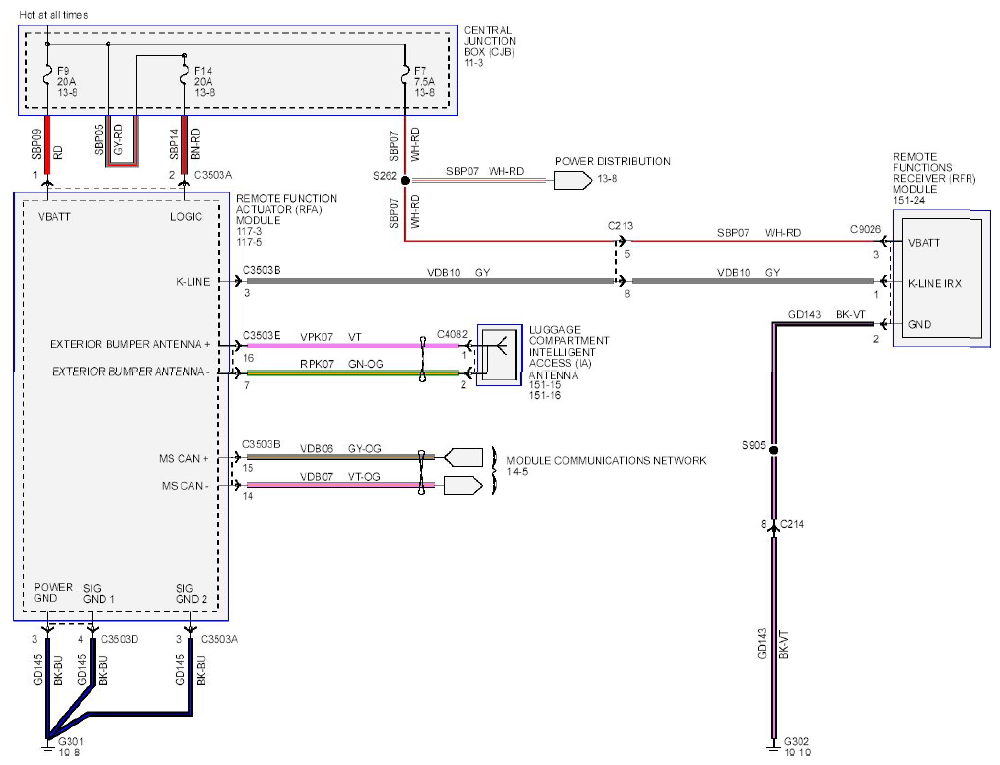

Fig 1: Luggage Compartment Wiring Diagram - With IA
Courtesy of FORD MOTOR CO.
