Horn Cigar Lighter
Horn Cigar Lighter
Fig 1: Horn Cigar Lighter Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

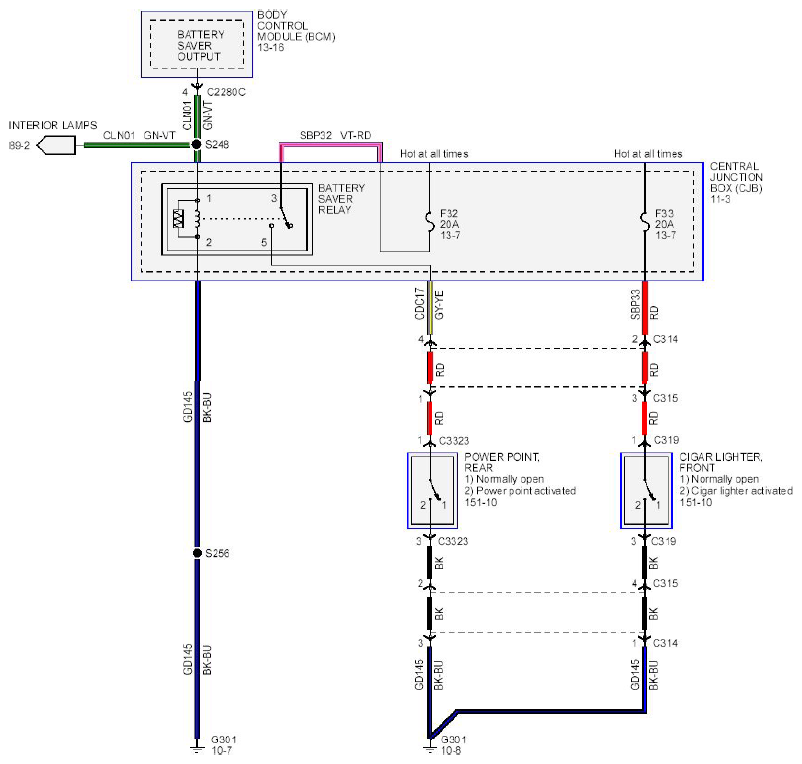

Fig 2: Horn Cigar Lighter Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
