Fiesta Titanium, 4D Hatchback, Standard Trans
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Cluster and Panel Illumination
Cluster and Panel Illumination

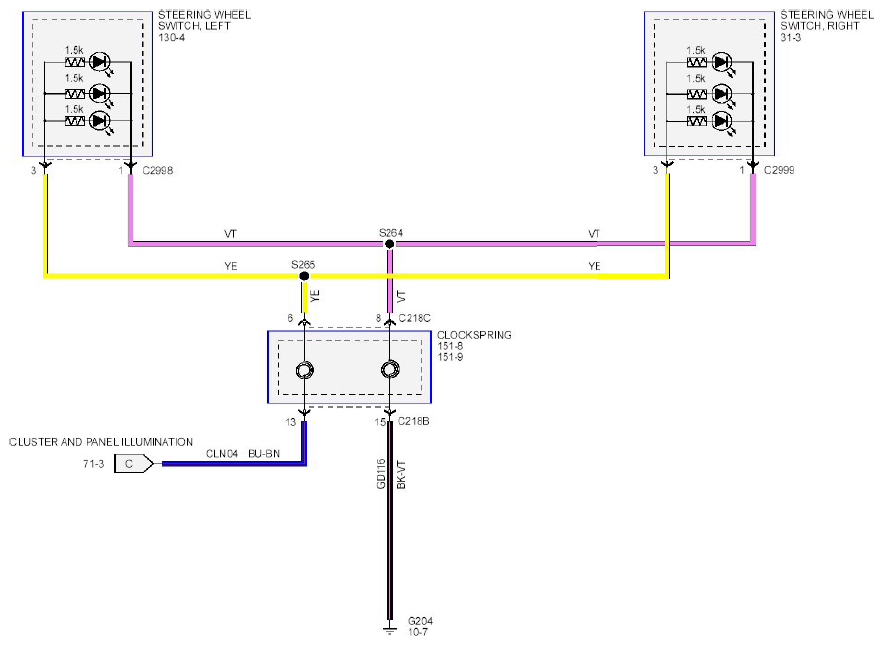

Fig 1: Cluster And Panel Illumination Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

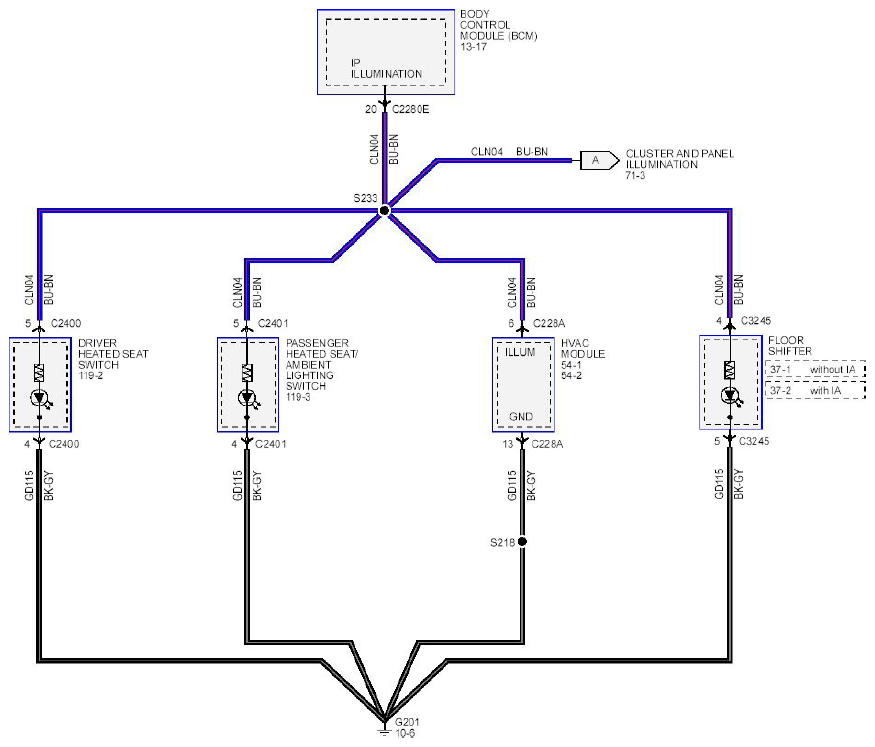

Fig 2: Cluster And Panel Illumination Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

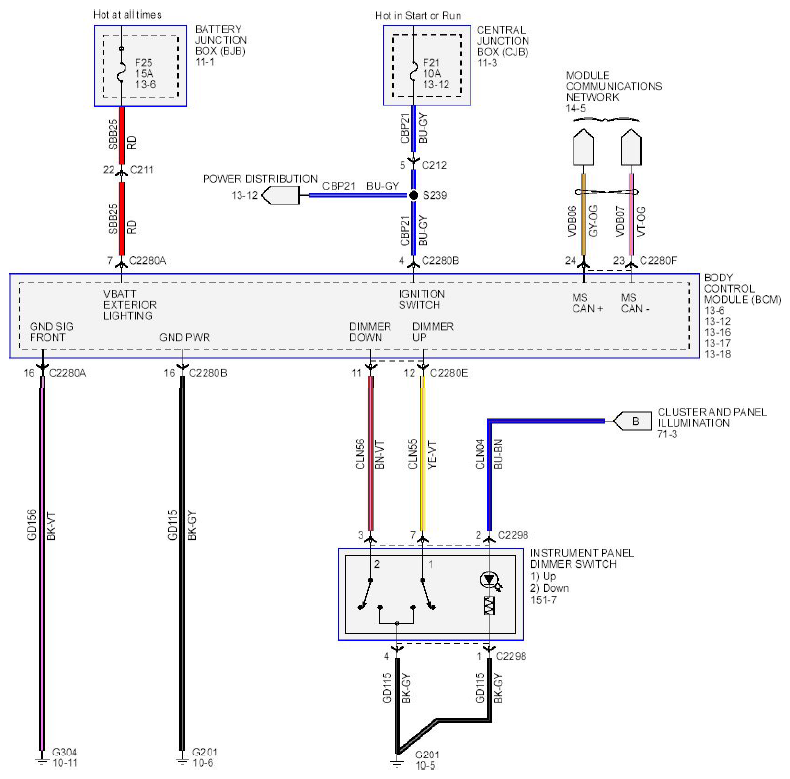

Fig 3: Cluster And Panel Illumination Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

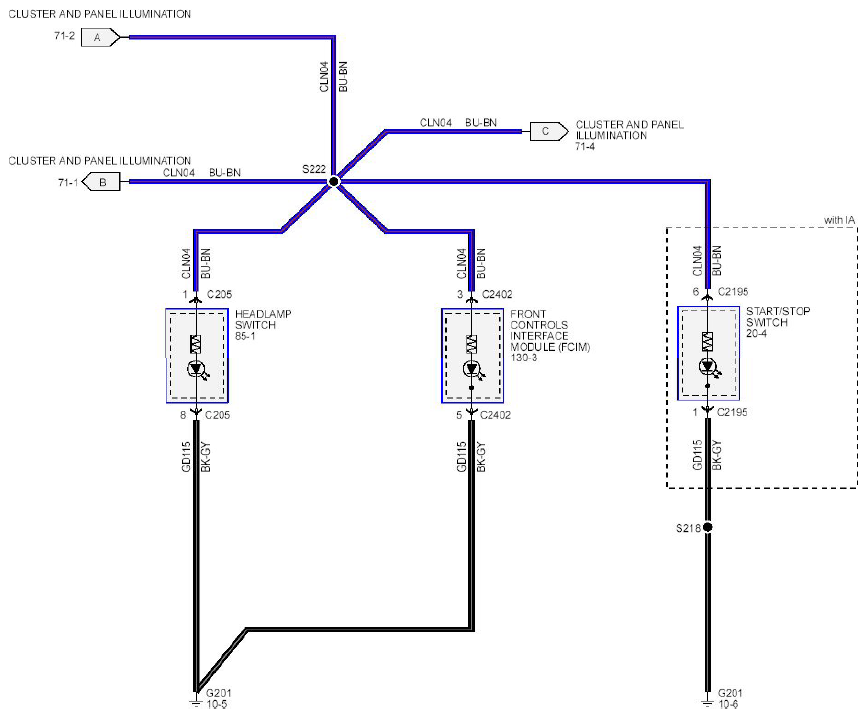

Fig 4: Cluster And Panel Illumination Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
