Safety Belt Retractor PRETENSIONER, Passenger Connector End View (C303)

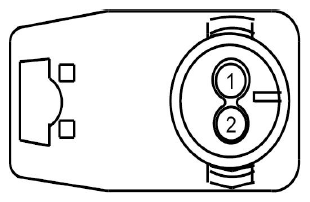

Fig 1: Identifying Safety Belt Retractor Pretensioner, Passenger Connector (C303)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RR147 (YE-VT)	20	CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD
2	CR147 (GN-OG)	20	CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD

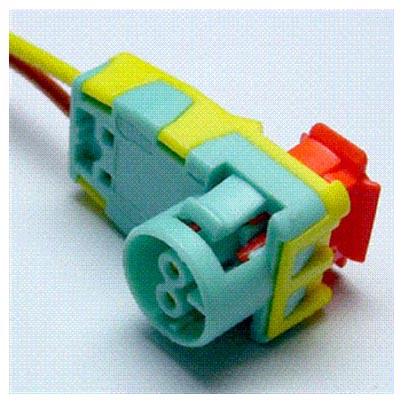

Available Pigtail Kits
Pigtail Kit Part Number WPT-1226	Service Part Number: BU2Z-14S411-BJA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Squib - Airbag (Passenger)
