2013
>>
Fiesta Titanium, 4D Hatchback, Standard Trans
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Turn Signal / Stop / Hazard Lamps
>>
4 Door
4 Door

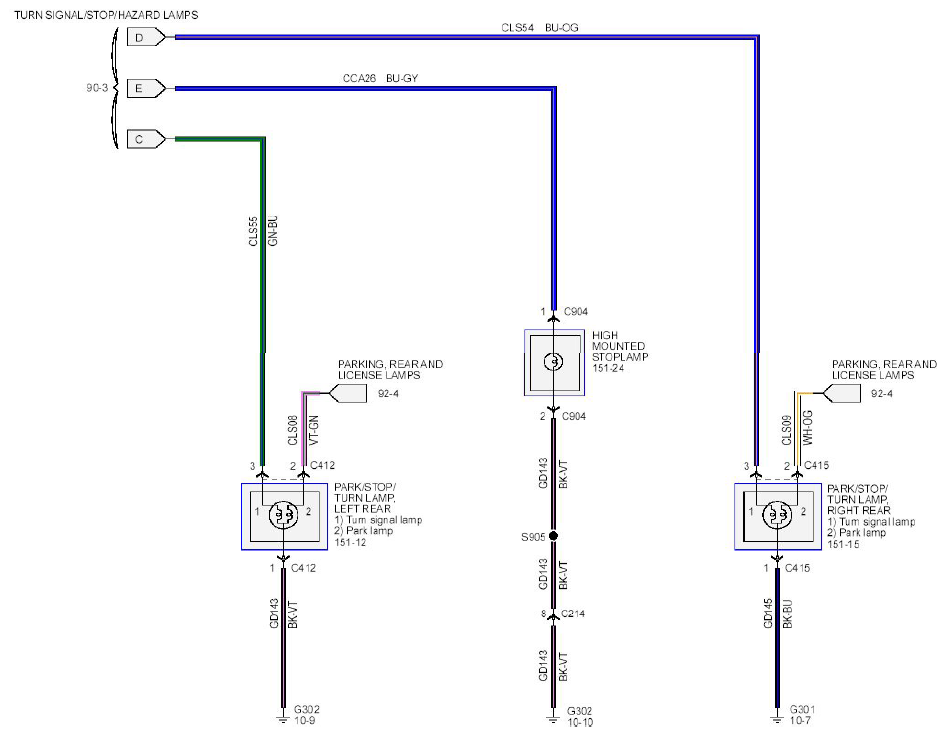

Fig 1: Turn Signal Stop Hazard Lamps Wiring Diagram - 4 Door (1 Of 2)
Courtesy of FORD MOTOR CO.

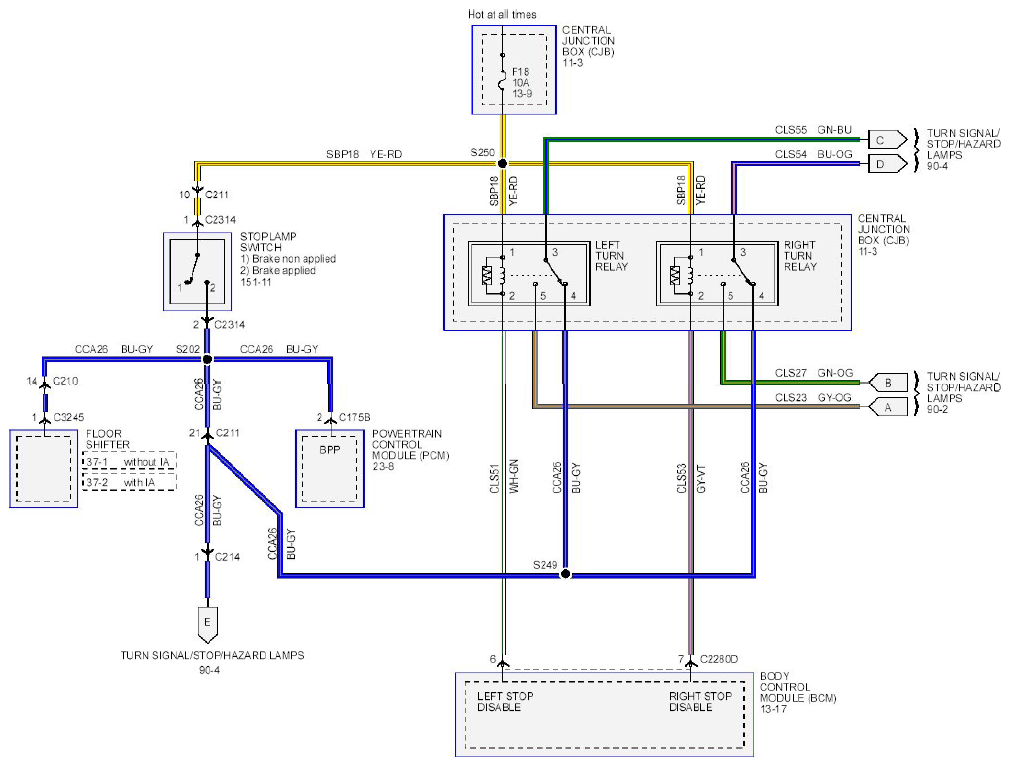

Fig 2: Turn Signal Stop Hazard Lamps Wiring Diagram - 4 Door (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
