Heat Shields, Exhaust System and Crossmember

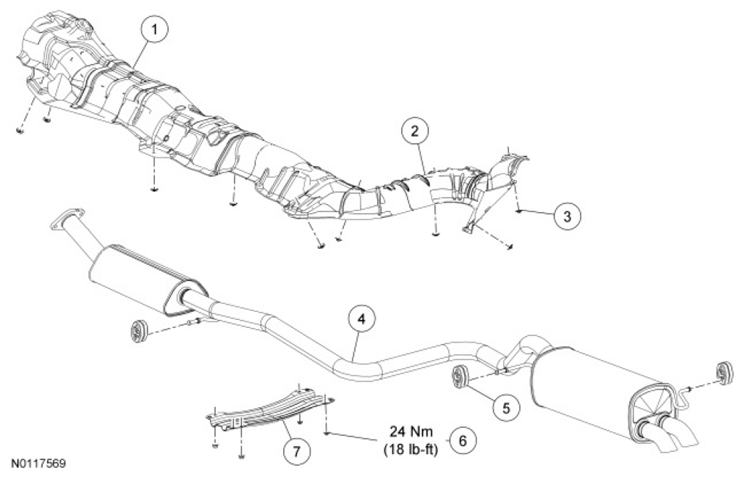

Fig 1: Exploded View Of Heat Shields, Exhaust System And Crossmember With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5411434	Exhaust heat shield
2	54114B06	Exhaust heat shield
3	W709729	Exhaust heat shield nut (9 required)
4	5230	Muffler assembly
5	5A262	Exhaust insulator (3 required)
6	W520102	Crossmember nut (8 required)
7	58108K38	Crossmember
