Pinpoint Test G: A Single Power Window Is Inoperative - LH Rear Window
NOTE:
Use the correct probe adapter(s) from the Flex Probe Kit when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
- G1 CHECK THE LH REAR WINDOW OPERATION FROM THE MASTER WINDOW CONTROL SWITCH
- Ignition ON.
- Operate the LH rear window from the master window control switch.
- Does the LH rear window operate from the master window control switch?
- G2 CHECK FOR VOLTAGE TO THE LH REAR WINDOW CONTROL SWITCH
- Ignition OFF.
- Disconnect: LH Rear Window Control Switch C701.
- Ignition ON.
- Measure the voltage between LH rear window control switch C701-2, circuit CPW01 (BN/BU), harness side and ground.
- Is the voltage greater than 10 volts?
NOTE: Make sure the window lock-out switch is in the UNLOCK position.Fig 1: Measuring Voltage Between LH Rear Window Control Switch C701-2, Circuit CPW01 (BN/BU), Harness Side And GroundCourtesy of FORD MOTOR CO.
- Yes : INSTALL a new LH rear window control switch. REFER to Window Control Switch . TEST the system for normal operation.
- No : REPAIR the circuit. TEST the system for normal operation.
- G3 CHECK FOR VOLTAGE AND GROUND TO THE WINDOW MOTOR
- Ignition OFF.
- Disconnect: LH Rear Power Window Motor C703.
- Ignition ON.
- Measure the voltage between LH rear power window motor C703-1, circuit CPW22 (GN/VT), harness side and LH rear power window motor C703-2, circuit CPW21 (BN), harness side while operating the master window control switch in the down then up positions.
- Is the voltage greater than 10 volts when the window control switch is operated and 0 volt in the rest position?
NOTE: During the following step, the voltage being measured changes polarity dependent upon which direction the window control switch is activated.- Yes : INSTALL a new LH rear window regulator motor. REFER to Window Regulator Motor - Rear Door . TEST the system for normal operation.
- No : GO to G4.
- G4 CHECK THE LH REAR WINDOW CONTROL SWITCH
- Ignition OFF.
- Disconnect: LH Rear Window Control Switch C701.
- Carry out the window control switch component test on the LH rear window control switch.
Refer to OEM WIRING DIAGRAMS COMPONENT TESTING for component testing.
- Did the LH rear window control switch pass the component test?
- Yes : GO to G5.
- No : INSTALL a new LH rear window control switch. REFER to Window Control Switch . TEST the system for normal operation.
- G5 CHECK FOR AN OPEN CIRCUIT BETWEEN THE REAR WINDOW CONTROL SWITCH AND THE WINDOW MOTOR
- Measure the resistance between LH rear window control switch C701, harness side and LH rear power window motor C703, harness side, using the following chart:
LH Rear Window Control Switch Circuit LH Rear Power Window Motor C701-1 CPW22 (GN/VT) C703-1 C701-7 CPW21 (BN) C703-2 - Are the resistances less than 5 ohms?
- Yes : GO to G6.
- No : REPAIR the circuit(s). TEST the system for normal operation.

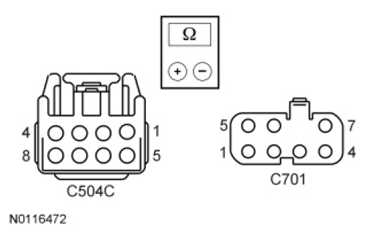

- Measure the resistance between LH rear window control switch C701, harness side and LH rear power window motor C703, harness side, using the following chart:
- G6 CHECK FOR AN OPEN CIRCUIT BETWEEN THE LH REAR WINDOW CONTROL SWITCH AND THE MASTER WINDOW CONTROL SWITCH
- Disconnect: Master Window Control Switch C504C.
- Measure the resistance between master window control switch C504C, harness side and LH rear window control switch C701, harness side using the following chart:
Master Window Control Switch Circuit LH Rear Window Control Switch C504C-8 CPW15 (YE) C701-3 C504C-7 CPW16 (BU/OG) C701-6 - Are the resistances less than 5 ohms?
- Yes : INSTALL a new master window control switch. REFER to Window Control Switch . TEST the system for normal operation.
- No : REPAIR the circuit(s). CARRY OUT the window motor initialization procedure. REFER to Window Motor Initialization . TEST the system for normal operation.
