Roof Opening Panel Drain Hose Routing - 5-Door Hatchback

NOTE: Passenger side shown in illustration, driver side similar.

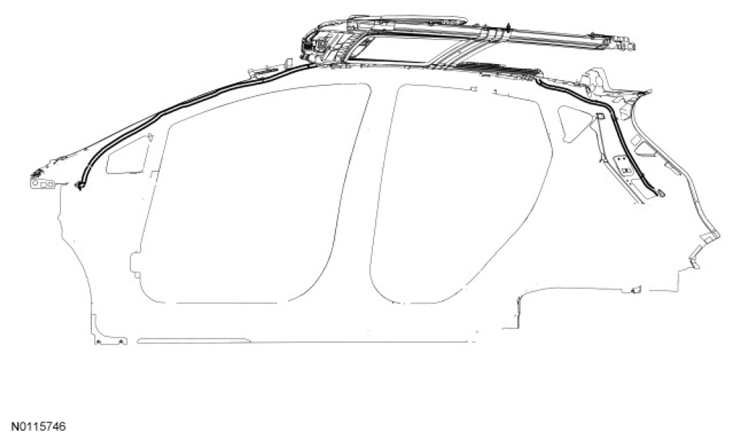

Fig 1: Identifying Roof Opening Panel Drain Hose Routing - 5-Door Hatchback
G06939850Courtesy of FORD MOTOR CO.
