Seat Backrest - Rear, 60 Percent

NOTE: The 40 percent backrest must be removed before the 60 percent backrest can be removed.

NOTE: 5 door hatchback is shown in illustration, 4 door sedan is similar.

NOTE: Some parts removed for clarity.

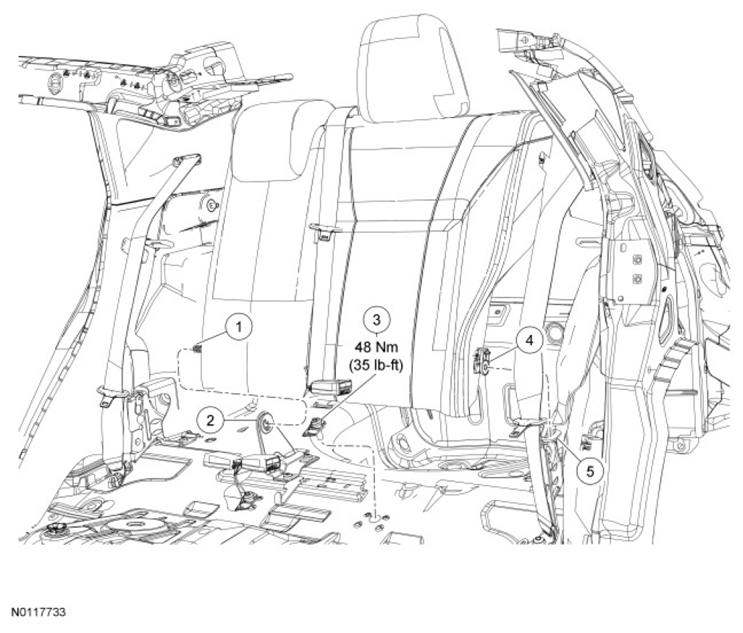

Fig 1: Exploded View Of Rear Seat Backrest With Torque Specifications - 60 Percent

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Backrest frame mounting pin, 60 percent (part of 60509)
2	60615	Center backrest hinge
3	-	Safety belt anchor bolt (part of 611B66) (5-door hatchback only)
4	613B48	Hinge pin and bolt
5	613B91	Outboard backrest hinge
