Seat Backrest - Rear, 40 Percent

NOTE: Some parts removed for clarity.

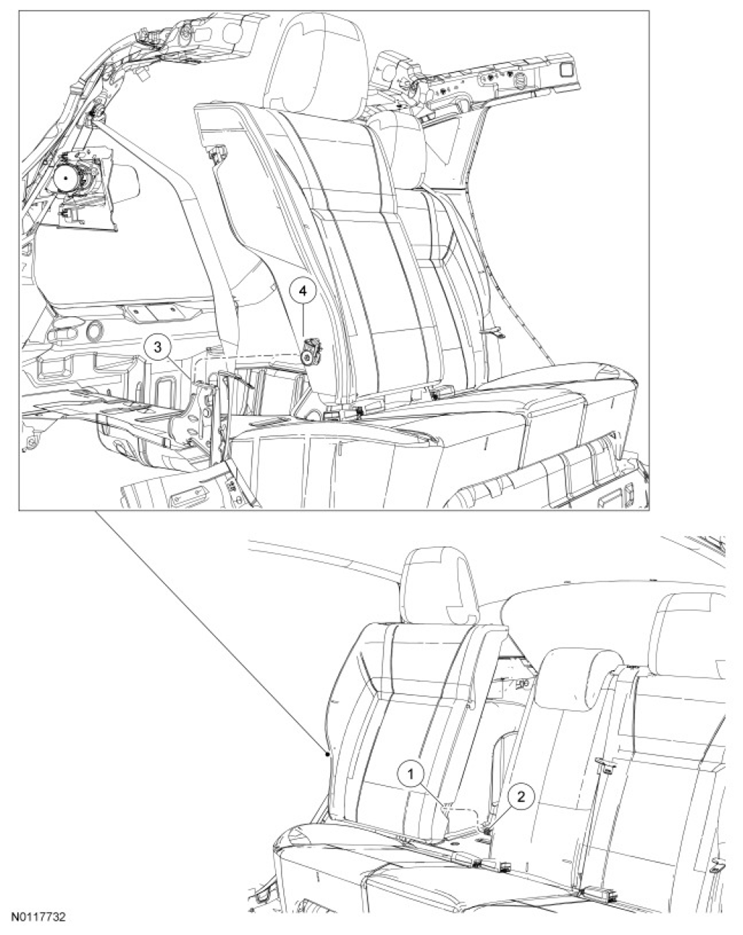

Fig 1: Exploded View Of Rear Seat Backrest - 40 Percent
G06937810Courtesy of FORD MOTOR CO.
Item Part Number Description
1 60508 Backrest frame, 40 percent
2 - Backrest frame mounting pin, 60 percent (part of 60509)
3 613B90 RH outboard backrest hinge
4 613B48 Hinge pin and bolt
