Seat Backrest - 60 Percent, 4-Door Sedan

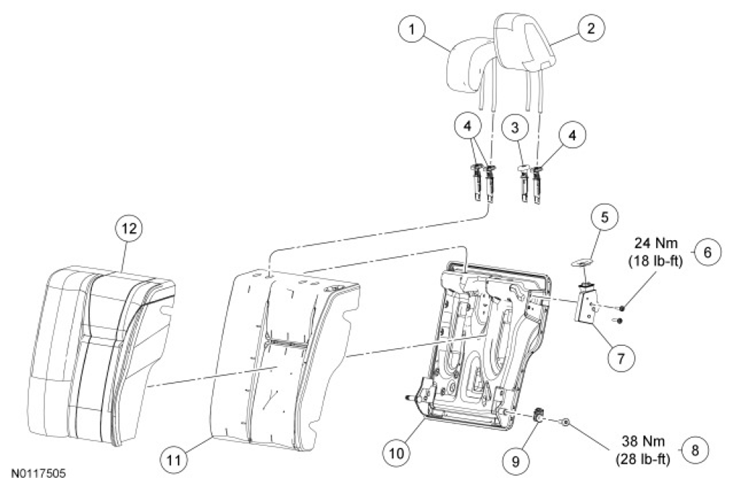

Fig 1: Disassembled View Of Seat Backrest With Torque Specifications - 60 Percent, 4-Door Sedan

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	611A08	Head restraint (center)
2	611A08	Head restraint (LH)
3	610A18	Head restraint guide sleeve (non-lockable)
4	610A16	Head restraint guide sleeve (3 required) (lockable)
5	624A08	Backrest latch bezel
6	W790247	Backrest latch bolt (2 required)
7	61383	Backrest latch
8	-	Hinge pin bolt (part of 613B48)
9	613B48	Hinge pin
10	60509	Backrest frame
11	66801	Backrest foam pad
12	66601	Backrest cover
